Scan code: LN104602 Manufacturer code: NH-L9X64

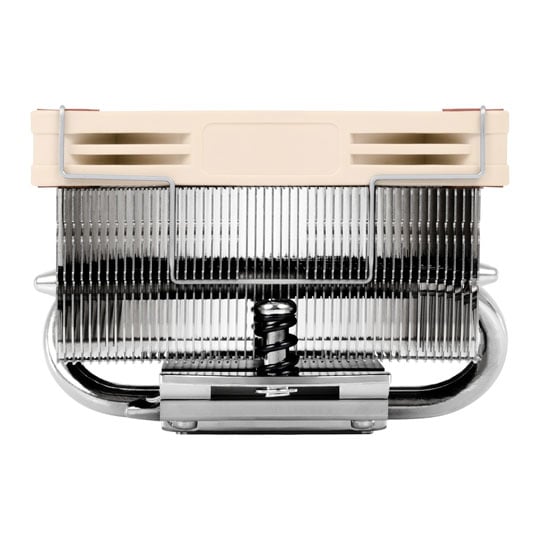

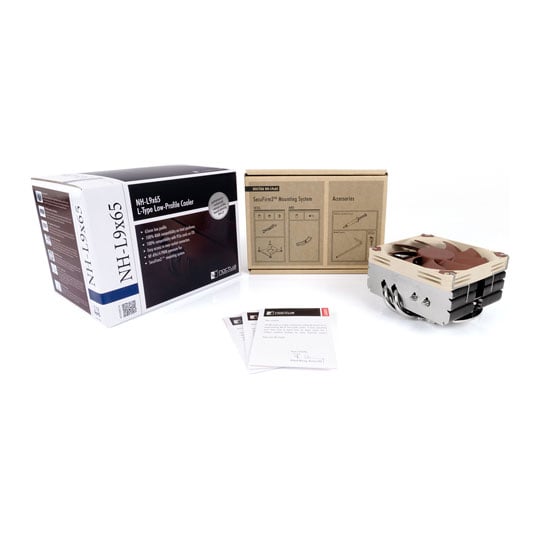

Noctua NH-L9x65 65mm Low Profile CPU Cooler

Noctua NH-L9x65 65mm Low Profile CPU Cooler, Intel/AMD, Single 92mm Fan, 600-2500RPM, 33.8CFM Airflow, 23.6dB, 4-pin PWM

Thumbnail 1 : Noctua NH-L9x65 65mm Low Profile CPU Cooler Thumbnail 2 : Noctua NH-L9x65 65mm Low Profile CPU Cooler Thumbnail 3 : Noctua NH-L9x65 65mm Low Profile CPU Cooler Thumbnail 4 : Noctua NH-L9x65 65mm Low Profile CPU Cooler
Scan code: LN104602 Manufacturer code: NH-L9X64
£39.98Item overdue since 24 February 2020
Pre order
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Low Profile Performance CPU Cooler

The NH-L9x65 is a taller, performance-enhanced version of Noctua’s award-winning NH-L9 low-profile coolers. With 65 instead of 37mm height and four instead of two heatpipes, the NH-L9x65 is more powerful than its smaller siblings yet retains their 95x95mm footprint, which guarantees 100% RAM and PCIe compatibility on Intel based ITX mainboards and makes the cooler more convenient to work with as it doesn’t overhang near-socket connectors. Thanks to the highly optimised NF-A9x14 premium fan that supports fully automatic speed control via PWM, the NH-L9x65 runs remarkably quiet. Topped off with the professional SecuFirm2™ multi-socket mounting system for Intel and AMD, Noctua’s renowned NT-H1 thermal compound and 6 years manufacturer’s warranty, the NH-L9x65 fuses everything users have come to expect from Noctua’s larger coolers into a compact premium package for space restricted systems.

PLEASE NOTE: The NH-L9x65 is a highly-compact low-profile quiet cooler designed for use in small form factor cases and HTPC environments. While it provides first rate performance in its class, it is not suitable for overclocking and should be used with care on CPUs with more than 84W TDP (Thermal Design Power).


65mm Low Profile

Due to its compact heatsink and the 14mm thin NF-A9x14 low profile fan, the NH-L9x65 stands only 65mm tall (the same height as low-profile expansion cards), which makes it ideal for use in compact HTPCs or Small Form Factor cases that offer limited clearance for CPU coolers.


100% RAM Compatibility on Intel Platforms

The NH-L9x65 has a 95x95mm footprint that complies exactly to the Intel LGA115x socket keep-out zone. This means that it won't cause issues with chipset coolers and doesn't overhang the RAM slots, making it fully compatible with tall memory modules.


100% Compatibility with PCIe Cards on ITX

Many Intel LGA115x based mini-ITX mainboards have the PCIe slot sitting close to the 95x95mm socket zone. While larger coolers that exceed this zone may block the PCIe slot, the 95x95xmm sized NH-L9x65 provides full compatibility with PCIe cards.


Easy Access to Near-Socket Connectors

Many low-profile coolers use larger fans or heatsinks in order to achieve sufficient cooling performance, but protruding over the socket zone, they make it difficult or even impossible to reach near-socket connectors on tightly packed ITX mainboards. Thanks to its 95x95mm footprint, the NH-L9x65 provides easy access to all connectors and components.


NF-A9x14 PWM Premium Fan

The highly optimised NF-A9x14 premium fan features Noctua's proprietary AAO frame as well as sophisticated aerodynamic design measures. Supporting PWM for fully automatic speed control, the NF-A9x14 allows the NH-L9x65 to stay remarkably quiet.


Low-Noise Adaptor

Allowing to reduce the maximum speed of the NF-A9x14 fan from 2500 to 1800rpm, the included (L.N.A.) makes it possible to achieve near-silent setups using CPUs with up to 65W TDP.


SecuFirm2™ Mounting System

Noctua's SecuFirm2™ mounting systems have become synonymous with quality, safety and ease of use. Supporting Intel LGA115x (LGA1150, LGA1151, LGA1155, LGA1156), LGA2011, LGA2066 and AMD (AM4 (bracket required*), AM3(+), AM2(+), FM1, FM2(+)), the SecuFirm2™ mounting included with the NH-L9x65 guarantees perfect contact pressure and maximum convenience on all current sockets.


Compatibility with Past and Future Sockets

Complying with the open SecuFirm™ standard, the NH-L9x65 can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided by Noctua free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets.**


NT-H1 thermal Compound

Having received more than 100 awards and recommendations from hardware journalists around the world, Noctua's NT-H1 is a proven professional grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability.


6-year Manufacturer’s Warranty

Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-A9x14 features an MTTF rating of more than 150.000 hours and the entire NH-L9x65 package comes with a full 6-year manufacturer’s warranty.



*NM-AM4 mounting kit required for AM4 compatibility.
**NM-I3 mounting kit not included.

Features
• 65mm low profile.
• For use with processors up to 65W.
• 100% RAM compatibility.
• 100% compatibility with PCIe cards on mini-ITX.
• NF-A9x14 PWM premium fan.
• Compatible with Intel and AMD sockets.
• Six years manufacturer’s warranty.
Specifications
Cooler Specifications
Edition NH-L9x65
Cooler Form Factor Compact Single Tower
Heatpipes 4
Cooler Features
  • Aluminium Fins
  • Low-Noise Cable
  • Nickel-Plated Copper Base
  • Nickel-Plated Copper Heatpipes
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1156
  • 2011
  • 2011-3
  • 2066
  • AM2
  • AM2+
  • AM3/AM3+
  • AM4 (Bracket Required)
  • FM1
  • FM2
  • FM2+
Max. TDP 65W
Fan Specifications
Included Fan Configuration 1 x 92mm
Fan Edition Noctua NF-A9 PWM
PWM Fan Yes
Fan Bearing Type SSO2
Fan Colour Beige/Brown
LED Lighting
Fan/Pump Connectors 1 x 4-pin
Max. Fan Speed 2500 rpm
Max. Fan Airflow 33.8 CFM
Max. Air Pressure 1.64 mm H²O
Max. Sound Level 23.6 dBA
Materials
Cooler Materials Aluminium / Nickel Plated / Copper
Included TIM (Thermal Interface Material) NT-H1 High-Grade Thermal Compound (Included)
Dimensions & Weight
Heatsink/Radiator Dimensions 95 x 51 x 95 mm (WxHxD)
Total Dimensions 95 x 65 x 95 mm (WxHxD)
Weight 413 g
Additional Information
Scan Code LN104602
Model Number NH-L9X64
GTIN 4716123315629
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
72 months
Type:
Direct
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Noctua
