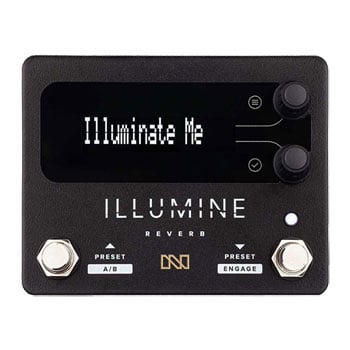

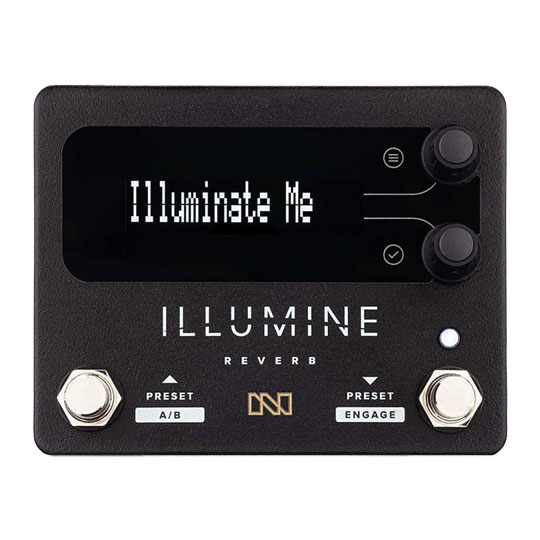

Neunaber - Illumine Reverb Pedal
Neunaber - Illumine Reverb Pedal, 17 Stereo Reverb Effects, 50 Factory Presets, 50 User Presets, MIDI Input
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
Neunaber - Illumine
Reverb Pedal

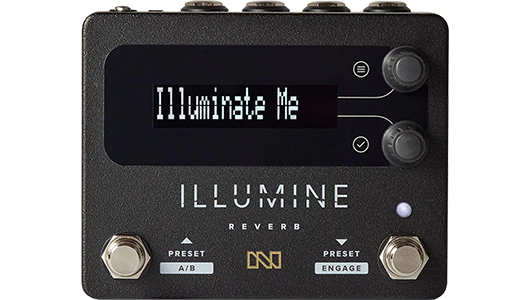

The Ultimate Reverb MachineThe Neunaber ILLUMINE is a reverb pedal that features 17 studio-quality reverbs, 50 presets, MIDI and powerful expression control in a low-power, small and pedalboard-friendly package with top jacks. No matter what instrument or style of music you play, the ILLUMINE offers the versatility and tone you desire. The only limit is your creativity.
at a glance
• 17 stellar stereo reverb effects cover all of your reverb needs
• 50 professionally-crafted factory presets for superb tones right out of the box
• 50 user presets to customize and save your favorite settings
• Adjustable gain structure works with instrument or line-level inputs
• MIDI input & thru/out. Controller mode replaces a simple MIDI controller
Premium Features

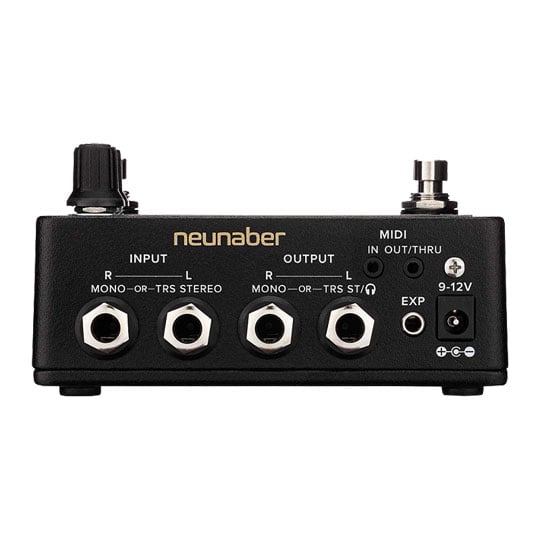

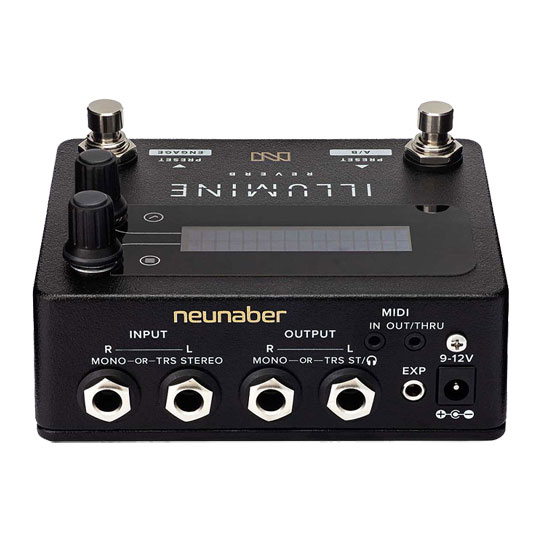

Reverb Is Better In StereoConnect stereo outputs for a huge, immersive sounding reverb. ILLUMINE will sum a stereo input to mono with only output 1 connected. Connect phones to output 2 for a quick practice setup.
Low Power ConsumptionUse a standard 9 V or 12 V pedal power supply. Or, connect ILLUMINE to a 100 mA output on a brick supply.
17 Stereo Reverb EffectsFrom the classics to experimentals, all your reverb needs in one box.
Analogue Dry SignalYour dry signal remains analog for low noise and zero latency.
Presets50 outstanding factory presets. 50 user presets.
Expression Control EnginePowerful, flexible expression control. Connect your favorite expression pedal or use the built-in A/B switch with adjustable transitions.
ILLUMINE Preset ManagerDownload the free ILLUMINE Preset Manager software to import/export presets, and backup/restore settings.
MIDI Input & Thru/OutTwo 2.5 mm TRS to 5-pin DIN adapters included to connect your MIDI controller. Or, use Controller Mode as a simple controller for your setup.
The Tech Spec
| Features | Specification | Input level | -10 dBV, instrument / consumer line level |
|---|---|
| Input impedance | 500 kΩ mono | 1 MΩ stereo |
| Signal-to-Noise Ratio, A-weighted, engaged or trails bypass | 113 dB mono | 110 dB stereo |
| Total harmonic distortion | < 0.005% |
| Supply Voltage | regulated 9 V - 12 V DC |
| Current consumption | 85 mA typical |
| Recommended supply current | 100 mA or greater |
| Connector | center-negative, 5.5 mm OD x 2.1 mm ID |
| Dimensions | 121 x 99 x 62 mm / 4.8 x 3.9 x 2.6 in |
| Weight | 415 g / 14.6 oz |
