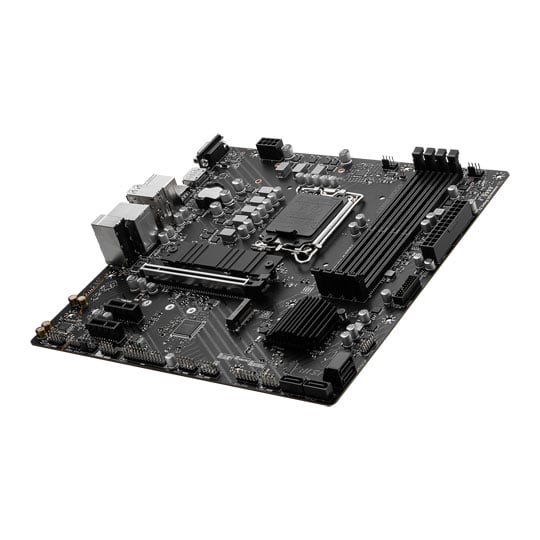

MSI Intel PRO B760M-P DDR4 Micro-ATX Motherboard
MSI Intel PRO B760M-P DDR4 Micro-ATX Motherboard
Scan code: LN131715 Manufacturer code: PRO B760M-P DDR4
£89.99
Add To Basket
Get it Monday, 27 JanIn stock
  • Thumbnail 1 : MSI Intel PRO B760M-P DDR4 Micro-ATX Motherboard
  • Thumbnail 2 : MSI Intel PRO B760M-P DDR4 Micro-ATX Motherboard
  • Thumbnail 3 : MSI Intel PRO B760M-P DDR4 Micro-ATX Motherboard
  • Thumbnail 4 : MSI Intel PRO B760M-P DDR4 Micro-ATX Motherboard

MSI Intel PRO B760M-P DDR4 Micro-ATX Motherboard

MSI PRO B760M-P DDR4, Intel B760, LGA1700, DDR4, SATA3, PCIe 4.0, 2x M.2, GbE, USB 3.2 Gen2, mATX
MORE INFO
MORE INFO

Scan code: LN131715 Manufacturer code: PRO B760M-P DDR4
£89.99
£5.48 NEXT DAY DELIVERY
Order now and receive it by Monday, 27th January
Add To Basket
Get it Monday, 27 JanIn stock

Email me when the availability or price changes

  • By DPD On 27th Jan Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info

Frequently Bought Together

MSI PRO B760M-P DDR4 LGA1700 M-ATX Motherboard

MSI B760 Motherboard

Business Elegance Redefined Meet the PRO B760M-P DDR4, here to support the very latest 13th Generation Intel processors. Boasting the new Intel 1700 LGA, the PRO B760M-P DDR4 is perfect for both daily users and professionals from all walks of life and is filled with the latest technologies including PCIe 4.0, DDR4 support, expansive storage options with 2x M.2 slots (PCIe 4.0 x4), lightning 20G USB connectivity, Core & Memory boosts, M.2 Shield Frozr and chipset heatsinks and a fully comprehensive rear I/O. These features combined deliver an efficient and productive experience, optimised for professional workflows. If your looking to take your productivity to the next level, do it with MSI PRO series motherboards.

Intel B760Chipset

LGA 1700CPU Socket

12th/13th Gen Intel® Core™ ProcessorsCompatible CPU

M-ATXForm Factor

An Exclusive Set of Features

Superb Cooling
Thermal Pads

Core Boost

M.2 Shield FROZR

Memory Boost

Pump fan support

Lightning Gen 4

Extended heatsinks

M.2 Shield Frozr

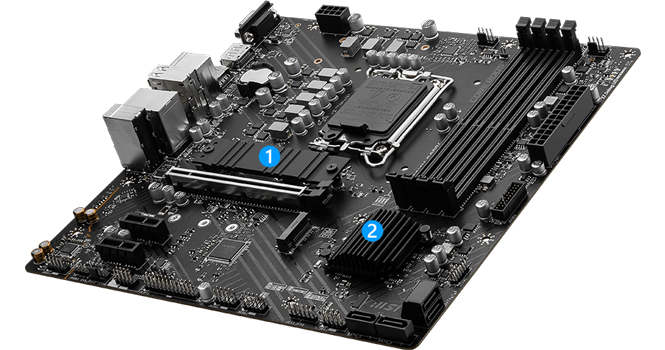

Massive Cooling Potential

1. M.2 Shield FrozrStrengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

2. Chipset HeatsinkThe chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

Massive Cooling heatsinks

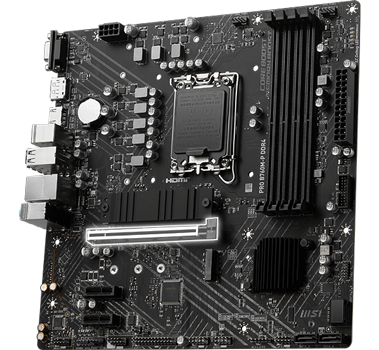

Meet The Latest Generation

PCIE 5 slots

LIGHTNING GEN 4 PCI-EDoubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.

MSI Steel ArmorSecure to the motherboard with extra solder points and support the weight of heavy graphics cards.

Maximise Your Storage Capabilities

Storage capabilities

Fast and future ready storageMSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

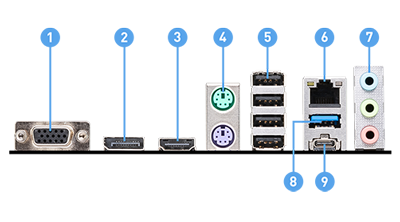

Fully Comprehensive I/O Panel

i/O Panel

Rear: 1: VGA
2: DisplayPort
3: HDMI™
4: Keyboard / Mouse
5: USB 2.0
6: LAN port
7: Audio Connectors
8: USB 3.2 Gen 1 5Gbps (Type-A)
8: USB 3.2 Gen 2 10Gbps (Type-C)

Specifications
Core Specifications
Edition PRO B760M-P DDR4
Form Factor MicroATX
CPU Socket 1700
Chipset Intel B760
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz) DDR4 - 4800(OC)
Max. Memory Capacity
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DisplayPort 1.4
  • HDMI 1.4
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-80, PCIe Gen4x4
  • 2 x PCIe 4.0 x1
  • 1 x PCIe 4.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
Rear I/O Connectors
  • 1 x Central Speaker Out
  • 1 x D-Sub (VGA)
  • 1 x DisplayPort 1.4
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 8 x USB 2.0
  • 3 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions
Note
Additional Information
Scan Code LN131715
Model Number PRO B760M-P DDR4
GTIN 4711377030991
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
MSI
