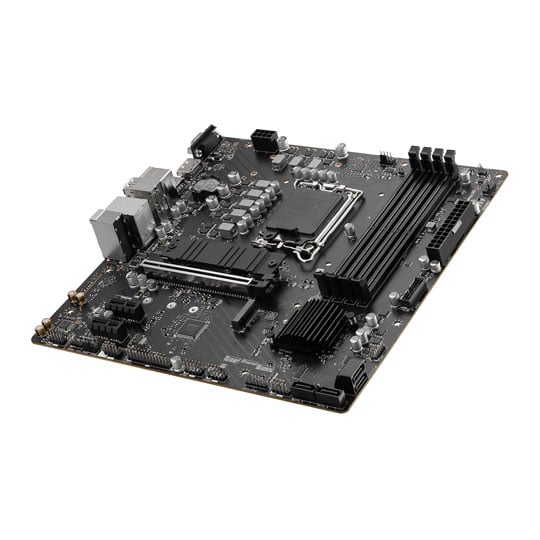

MSI Intel PRO B760M-P Micro-ATX Motherboard
MSI Intel PRO B760M-P Micro-ATX Motherboard
Scan code: LN139154 Manufacturer code: PRO B760M-P
£99.98
Add To Basket
Get it Monday, 20 JulIn stock
  • Thumbnail 1 : MSI Intel PRO B760M-P Micro-ATX Motherboard
  • Thumbnail 2 : MSI Intel PRO B760M-P Micro-ATX Motherboard
  • Thumbnail 3 : MSI Intel PRO B760M-P Micro-ATX Motherboard
  • Thumbnail 4 : MSI Intel PRO B760M-P Micro-ATX Motherboard

MSI Intel PRO B760M-P Micro-ATX Motherboard

MSI PRO B760M-P, Intel B760, LGA1700, DDR5, SATA3, PCIe 4.0, 2x M.2, GbE, USB 3.2 Gen2, mATX
MORE INFO
MORE INFO

Scan code: LN139154 Manufacturer code: PRO B760M-P
£99.98
£5.48 Next day delivery
Order now and receive it by Monday, 20th July
Add To Basket
Get it Monday, 20 JulIn stock
Pay in 3 interest-free payments of £33.33

Email me when the availability or price changes

  • By DPD On 20th Jul Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • From £9.06 / month (APR 16.9%) for 12 months or 0% for 4 months
  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.

Frequently Bought Together

MSI PRO B760M-P DDR5 LGA1700 M-ATX Motherboard

MSI B760 Motherboard

Business Elegance Redefined Meet the PRO B760M-P, here to support the latest 13th Generation Intel processors. Boasting the new Intel 1700 LGA, the PRO B760M-P is perfect for both daily users and professionals from all walks of life and is filled with the latest technologies including PCIe 4.0, DDR5 memory, expansive storage options with 2x M.2 slots (PCIe 4.0 x4), USB Type-C connectivity, Core & Memory boosts, M.2 Shield Frozr and chipset heatsinks and a fully comprehensive rear I/O. These features combined deliver an efficient and productive experience, optimised for professional workflows. If your looking to take your productivity to the next level, do it with MSI PRO series motherboards.

Intel B760Chipset

LGA 1700CPU Socket

12th/13th Gen Intel® Core™ ProcessorsCompatible CPU

M-ATXForm Factor

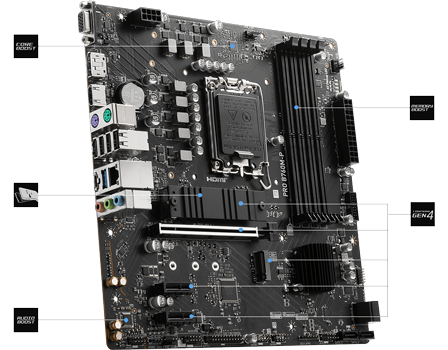

An Exclusive Set of Features

Superb Cooling
Thermal Pads

Core Boost

M.2 Shield FROZR

Memory Boost

Pump fan support

Lightning Gen 4

Extended heatsinks

M.2 Shield Frozr

Massive Cooling Potential

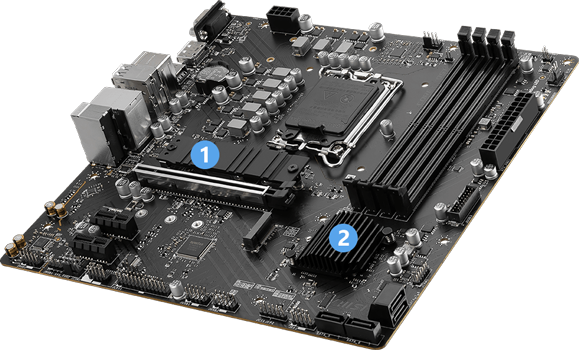

1. M.2 Shield FrozrStrengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

2. Chipset HeatsinkThe chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

Massive Cooling heatsinks

Meet The Latest Generation

PCIE 5 slots

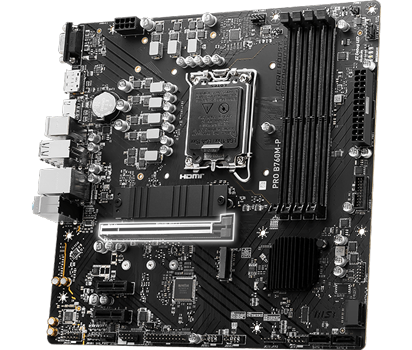

LIGHTNING GEN 4 PCI-EDoubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.

MSI Steel ArmorSecure to the motherboard with extra solder points and support the weight of heavy graphics cards.

Maximise Your Storage Capabilities

Storage capabilities

Fast and future ready storageMSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

Fully Comprehensive I/O Panel

i/O Panel

Rear: 1: VGA
2: DisplayPort
3: HDMI™
4: Keyboard / Mouse
5: USB 2.0
6: LAN port
7: Audio Connectors
8: USB 3.2 Gen 1 5Gbps (Type-A)
9: USB 3.2 Gen 2 10Gbps (Type-C)

Specifications
Core Specifications
Edition PRO B760M-P
Form Factor MicroATX
CPU Socket 1700
Chipset Intel B760
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000
  • DDR5 - 5200
  • DDR5 - 5400
  • DDR5 - 5600
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600(OC)
  • DDR5 - 6800(OC)
Max. Memory Capacity
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DisplayPort 1.4
  • HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA
  • 2 x PCIe 4.0 x1
  • 1 x PCIe 4.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)
Rear I/O Connectors
  • 1 x D-Sub (VGA)
  • 1 x DisplayPort 1.4
  • 1 x HDMI 1.4
  • 1 x Headphone-Out
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x RJ-45
  • 4 x USB 2.0
  • 1 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 243.84 x 243.84 mm
Note
Additional Information
Scan Code LN139154
Model Number PRO B760M-P
GTIN 4711377086578
