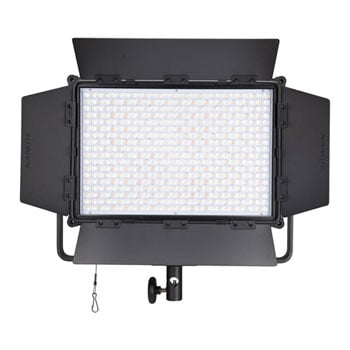

NanLite MixPanel 60 RGBWW LED Panel
NanLite MixPanel 60, RGBWW, LED Panel, 64W, 2700-7500K, CRI 95, TLCI 95, 5844 Lux, Location/Studio
Email me when the availability or price changes
Finance this product
- From £28.02 / month (APR 16.9%) for 36 months or 0% for 4 months
- With a 10% deposit from just £19.98 / month (APR 15.9%)
Suggested Alternatives
Nanlite - 'MixPanel 60 RGBWW LED Light Panel'
Take your projects to a brilliant placeThe Nanlite MixPanel 60 RGBWW LED Panel is a 35 x 42.5 x 82cm solution that uniquely combines three LED light sources into one housing. Able to switch between a traditional multi-LED panel for hard light, a diffused SMD LED Panel for soft light and a customisable RGB panel for colourful, creative effects with the push of a button. The MixPanel Series from Nanlite has an CCT range of 2700 to 7500K to seamlessly integrate into any ambient lighting or studio scenario, with a CRI/TLCI rating of 95 the MixPanel has the advanced colour accuracy needed for professional productions. Now you can do it all with one unit.
MixPanel 60 Key Features
CRI 95
TLCI 95
0-100% Dimming
43 Gel Presets
Tunable RGBWW LED Panel
Three Light sources in one compact panelNanlite MixPanels are capable of switching between a "traditional" multi-LED panel for hard light, a diffuse SMD LED panel for soft light and a Tunable RGB panel for colourful, creative effects at the push of a button.
Ultra-Bright 13880 Lux
Ultra-Bright OutputWhen using the hard light fixture in normal mode, the MixPanel 60 emits 4980 Lux@1m 5600K while the 150 emits 11320 Lux@1m 5600K. When shifted into boost mode, the output climbs even higher to 6600 Lux at 1m on the 60 and 14950 Lux at 1m on the150. Plus with dimming from 100% down to 1%, you can quickly adapt the MixPanel 60 to any scene without adding ND filters or diffusion
Easy to Use

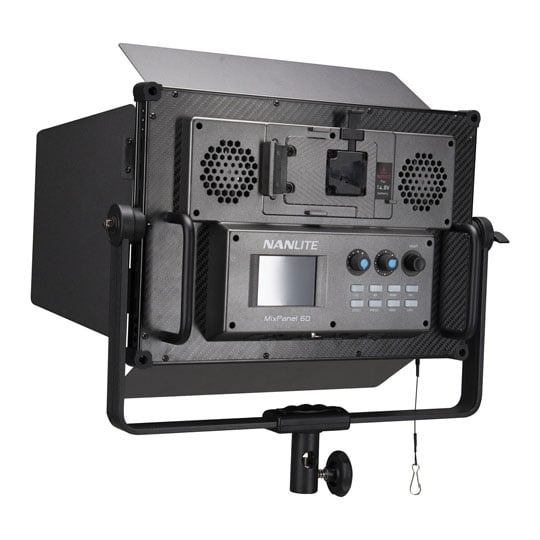

intuitive User interfaceIf there is one thing an RGBWW LED panel can not be, it's cumbersome to use on set. That is why the MixPanel's operating system has been developed from the ground up to be efficient and intuitive to use. What's more, you can save your settings as presets to make your lighting consistent and repeatable.
Built-in Gel Emulation and Special Effects
GEL EMULATION AND PRACTICAL EFFECTSThe MixPanel's gel emulation mode provides a selection of 43 gel presets in two light sources (3200K & 5600K) encompassing 5x CTOx 5x CTB, and 33x Calcolor. Also, with nine pre-programmed and adjustable special effects, the MixPanel makes it possible to imitate lighting scenarios that can otherwise be tricky to recreate, such as hue loop, CCT loop, flash, pulse, storm, siren, TV, paparazzi, and candle/fire.
Multiple Power Options
POWER ANYWHEREOptimized for use in the studio or on location, MixPanels can run off either the included AC adapter or 14.8V (MixPanel 60) or 26w (MixPanel 150) V-Mount batteries (Not Included), so you can operate in any location regardless of power availability.
MixPanel 60 Specifications
| Features | Specification | Rated Power | 64W |
|---|---|
| Input Voltage/Current | DC 15V/6A Max AC 100-240V 50/60Hz |
| CRI | Average 95 |
| TLCI | Average 95 |
| CCT | 2700K-12000K (G/M) |
| Dimming | 0-100% |
| Control | On-board controller, 2.6G, DMX |
| Special Lighting Effects | HUE Loop, CCT Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco |
| Dimensions | 426 x 370 x 82 mm |
| Weight | 3.3 kg |
Illumination (lux/fc)
| Colour | Distance | 2700K | 1m: 4756 lux / 442 fc 2m: 1290 lux / 120 fc 3m: 596 lux / 55 fc 4m: 345 lux / 32 fc 5m: 228 lux / 21 fc |
|---|---|
| 3200K | 1m: 5438 lux / 505 fc 2m: 1485 lux / 138 fc 3m: 690 lux / 64 fc 4m: 395 lux / 37 fc 5m: 261 lux / 24 fc |
| 5600K | 1m: 5844 lux / 543 fc 2m: 1574 lux / 146 fc 3m: 729 lux / 68 fc 4m: 422 lux / 39 fc 5m: 279 lux / 26 fc |
| 7500K | 1m: 5695 lux / 529 fc 2m: 1534 lux / 143 fc 3m: 707 lux / 66 fc 4m: 410 lux / 38 fc 5m: 271 lux / 25 fc |
| R | 1m: 1600 lux / 149 fc 2m: 429 lux / 40 fc 3m: 198 lux / 18 fc 4m: 116 lux / 11 fc 5m: 77 lux / 7 fc |
| G | 1m: 3613 lux / 336 fc 2m: 958 lux / 89 fc 3m: 444 lux / 41 fc 4m: 259 lux / 24 fc 5m: 174 lux / 16 fc |
| B | 1m: 690 lux / 64 fc 2m: 185 lux / 17 fc 3m: 85 lux / 8 fc 4m: 50 lux / 5 fc 5m: 33 lux / 3 fc |
