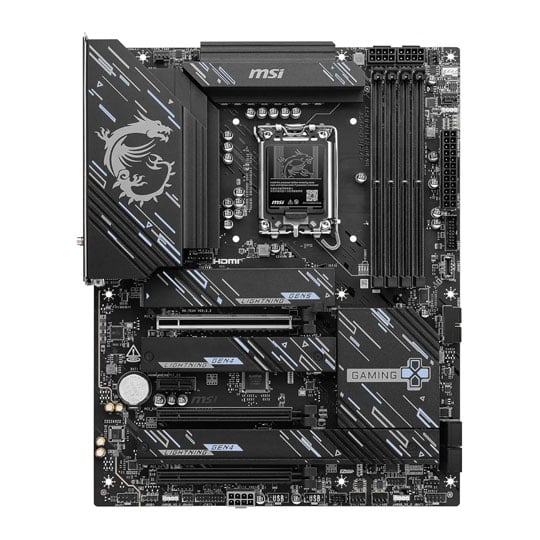

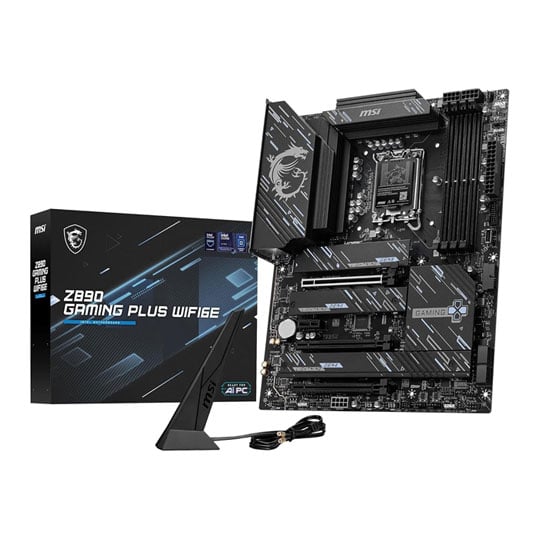

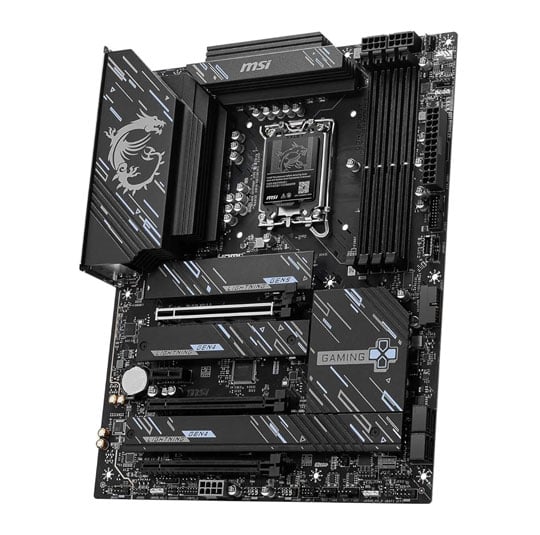

MSI Z890 GAMING PLUS WIFI6E Intel Z890 DDR5 PCIe 5.0 ATX Motherboard
MSI Z890 GAMING PLUS WIFI6E, Intel Z890, LGA1851, DDR5, PCIe 5.0, 4x M.2, 5 GbE, WiFi6E, USB 3.2, ATX
Email me when the availability or price changes
Finance this product
- From £11.72 / month (APR 16.9%) for 24 months or 0% for 4 months
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.

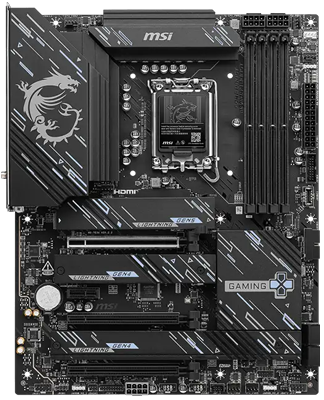

Z890 GAMING PLUS WIFI6E DDR5 PCIe 5.0 Intel ATX Motherboard from MSI
Brutal & Battle ReadySupporting Intel Core Ultra Series 2 processors, the matte black, overclocking-ready Z890 GAMING PLUS WIFI6E delivers excellent compatibility for gaming, streaming and demanding productivity workloads. With support for DDR5 memory up to 9200MHz (OC), PCIe 5.0 graphics cards and Gen5 NVMe SSDs, this motherboard is engineered to maximise system responsiveness and unlock the full potential of modern hardware. Integrated WiFi 6E, 5G LAN and USB 20Gbps connectivity provide ultra-fast networking and peripheral support, while extensive cooling options including multiple fan headers, M.2 Shield Frozr heatsinks and pump support help maintain stable temperatures during heavy workloads. Featuring four shielded M.2 slots, four SATA ports, EZ Debug LEDs and Flash BIOS functionality, the Z890 GAMING PLUS WIFI6E offers an ideal balance of performance, expansion and reliability for gaming PC builds.
Z890Intel Chipset
LGA 1851CPU Socket
DDR5 DIMMMax. 256GB (Dual Channel)
ATXForm Factor

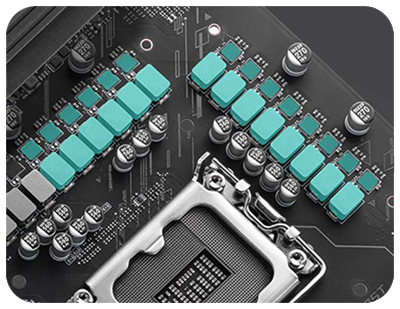

Incredible Power Design
14+1+1+1 DRPS POWER DESIGN Unlock and maintain peak performance with the flagship VRM design featuring 14+1+1+1 digital power phases. Equipped with dual power connectors and a 60A Smart Power Stage, the Z890 GAMING PLUS WIFI6E is fully prepared to handle the demands of high-end processors.
14 Vcore Power - SPS 55A
1 SA Power
1 GT Power
1 VNNAON Power

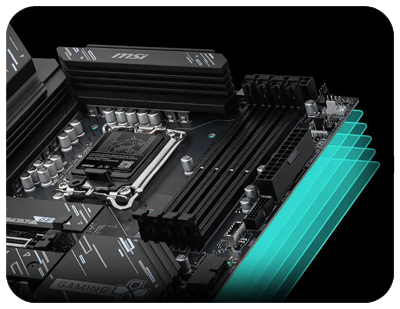

Optimised PCB The PCB design has been optimised to enhance bandwidth and accelerate transfer speeds, ensuring reliable circuit transmission. 6 PCB Layers Server-grade PCB material 2oz Thickened Copper

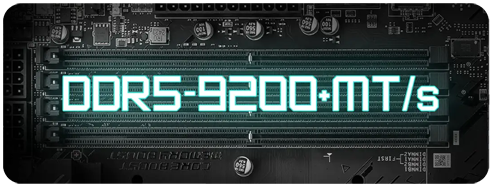

High Performance Memory Support
Unleash World-Class DDR5 Performance Experience a significant leap in DDR performance with the latest DDR5 memory. Paired with a dedicated SMT welding process and MSI Memory Boost technology, the Z890 GAMING PLUS WIFI6E is primed to deliver world-class memory performance.
EXPO / A-XMP Support
Memory Boost
SMT Process

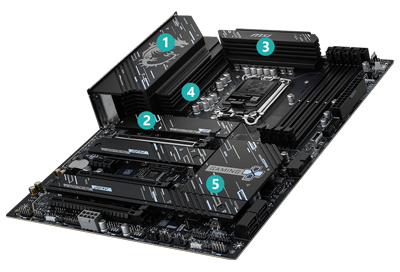

Frozr Cooling Design
1. Extended HeatsinksThe Extended Heatsink increases the surface area for heat dissipation, allowing even high-end processors to operate at full speed.
2. M.2 Shield FrozrAchieve reliable operation and incredible performance with this strengthened M.2 thermal solution.
3. Heavy Plated VRM HeatsinkThe upper MOS is protected with the VRM heatsink for efficient heat dissipation.
4. 7W/mK Thermal PadPremium 7W/mK MOSFET thermal pads and additional choke thermal pads guarantee all cores operate at peak performance.
5. Enlarged Chipset HeatsinkThe enlarged heatsink design minimises dust and noise while ensuring efficient heat dissipation.
Thermals Done Your Way

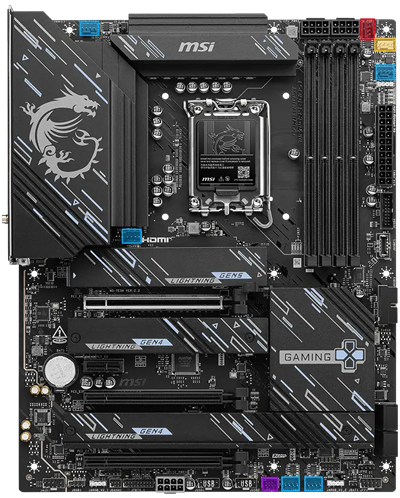

DIY 2.0
Connect and synchronise with MSI coolers and cases using strategically placed pin-header locations, including a dedicated pump-fan header.
For CPU Cooler
For Liquid Cooler
For System Fan
Exclusive EZ CONN. - JAF_2
A Breakthrough in Bandwidth

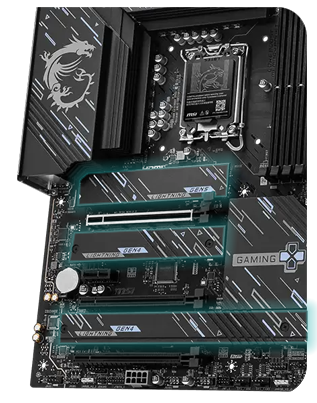

Quadruple Armoured M.2 Slots
MSI utilises high-speed M.2 slots with PCIe Gen 4 and Gen 5 support, enabling faster load times and efficient data transfers for SSDs.
• M.2 PCIe 5.0 x4 (2280/2260)
• M.2 PCIe 4.0 x4 (2210/2280/2260)
• M.2 PCIe 4.0 x2 (2280/2260/2242)
• M.2 PCIe 4.0 x2 (2280/2260/2242)

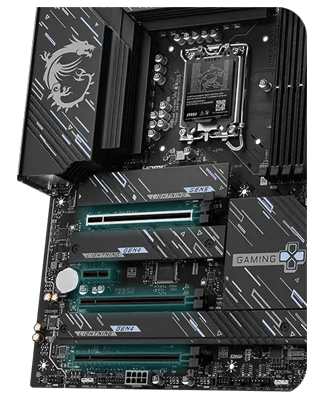

Packed with PCIe
For PCIe, MSI motherboards maximise bandwidth with reinforced slots and advanced signal integrity, ensuring top-tier performance for GPUs and expansion cards.
x1 Steel Armoured Full-Length PCIe 5.0 (x16)
x2 Full-Length PCIe 4.0 (x4)
x1 PCIe 3.0 (x1)

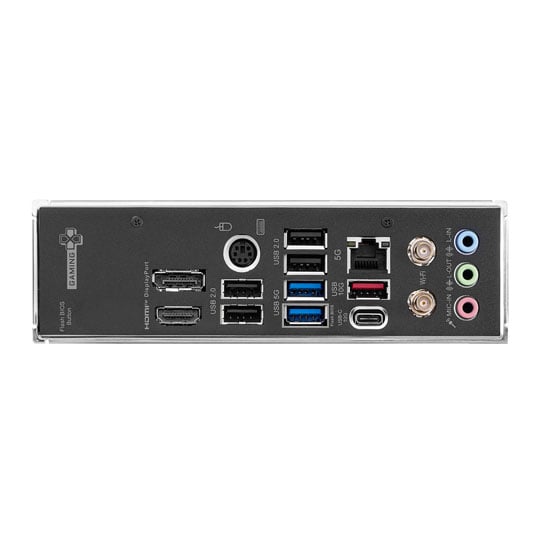

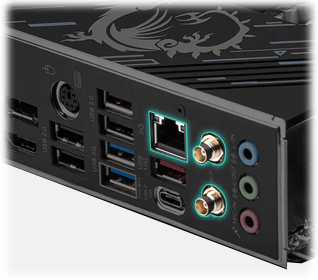

Supercharge Your Networking
High-Bandwidth, Low Latency LANMSI's premium 5G network solution provides incredible transfer speeds for demanding users.

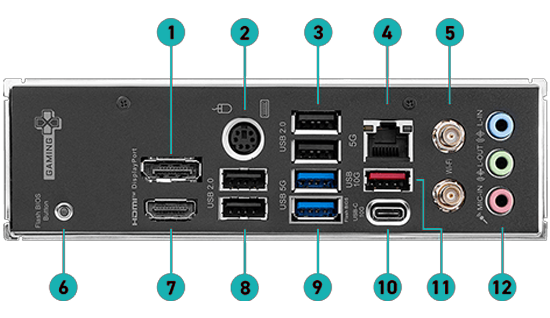

Peripheral Power
