MSI ProBox23 Thin Mini-ITX Intel Socket 1150 Barebone System

MSI PROBOX23-001BEU Thin Mini-ITX Barebone, Socket 1150, DDR3, SATA III mSATA HDMI USB 3.0 VESA

Scan code: LN58012 Manufacturer code: PROBOX23-001BEU Request call
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Mid Range
Delivery options £11.50 By DPD On 18th Jan 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview An Intel Socket 1150 CPU and SODIMM Memory (2 Sockets), 2.5" HDD/SSD or mSATA SSD are required to complete this system.

ProBox is MSI’s brand new barebone series, custom designed for commercial purposes. ProBox23 is a super-small barebone with space-saving benefits. The new ProBox23 equips the H81 chipset, which is perfect for commercial applications. The specially designed VESA mount makes mounting the ProBox behind a monitor very easy, and saves more space than ever. Additionally, it also supports up to 65W CPUs and provides a high-performance for a wide range of applications.

Thin Mini-ITX platform with high performance
MSI’s new thin mini-ITX barebone can be equipped with Intel® Core™ i3, i5 and i7 processors. The MSI ProBox23 also includes a highly efficient CPU cooler, which is custom designed and supports CPUs up to 65W TDP. It promises the user will experience a high system performance and there is no need to compromise between size and power. The CPU cooler is smartly controlled by the system to provide the best cooling and an excellent balance between noise and performance.

Custom Designed VESA Mount
ProBox23 is designed for users and commercial enterprises that require a high performance and space saving solution altogether. The custom VESA mount is custom made to save space. With just one screw, the MSI ProBox23 can be mounted easily and neatly behind a monitor. Furthermore, the mount is flatly designed to reduce the distance between the monitor and a wall.

Reliable and Stable
ProBox23 is equipped with a MSI H81TI Thin Mini-ITX motherboard. This motherboard uses award-winning Military Class 4 components. Military Class 4 is the next step in high quality components. Hi-C CAPs, Solid CAPs, Dark CAPs, together with SFC and Dark Chokes, ensure the system runs stable under extreme conditions. These key components have all passed extreme testing ensuring stable operation in the harshest environments.

Faster Than Ever
The ProBox23 series. This series uses the latest Intel® H81 chipset, and support the 4th Generation Intel® Core™ Processor, the high performance processor of its kind to have the graphics processing unit (GPU) and CPU integrated onto the one chip, while also building a set of visual functions into the chip that ensure higher image quality when viewing video content or photos.

4K UHD - HDMI out
4K UHD has twice the horizontal and vertical resolution of the 1080p HDTV format (3840x2160), with four times as many pixels overall. MSI Bento23 native HDMI 1.4 output supports 4K Displays, delivering high quality next-gen screen.

Space Saving without Compromise
With a capacity of just 2.3 Liters, the tiny sized ProBox23 saves a lot of space compared to traditional desktop PCs. A standard ATX tower is easily bigger than 30 Liters and now with the new ProBox23 MSI can provide equal performance. With MSI ProBox23 there is no compromise between size and performance.

Dual 2.5” HDD
It is capable to install two 2.5” storage device with SATA III. Standard 2.5” HDD housing supports 9mm or 7.5mm HDD or SSD. Features • Support latest Intel® Haswell platform, up to 65W CPUs
• Easy assembly
• Military class 4
• Durable and high quality tiny chassis
• Custom designed VESA mount for saving space
• Support 2 x 2.5” HDD/SSD
• USB 3.0 (10x faster than USB 2.0), high speed transfer of digital files
• Fully equipped with HDMI output and e-SATA ports
• Support mSATA SSD, 5 times faster than standard HDD
Form Factor Mini ITX
CPU Included No
CPU Type
No. of Threads N/A
CPU Model
Clock Speed N/A
Burst Frequency N/A
CPU Socket 1150
Chipset Intel H81
Memory Type DDR3 SO-DIMM
Memory Included No
Memory N/A
Memory Type (ECC) Non-ECC
Memory Type (R/U) Unbuffered
Memory Speed (Mhz)
  • DDR3 - 1333
  • DDR3 - 1600
Max. Memory Capacity 16GB
On Board VGA No
PSU Wattage 120 W
Graphics Interface N/A
Expansion Slots N/A
Storage Drive Included No
Storage Drive Type
Storage Drive Size N/A
Internal I/O 1 x mSATA

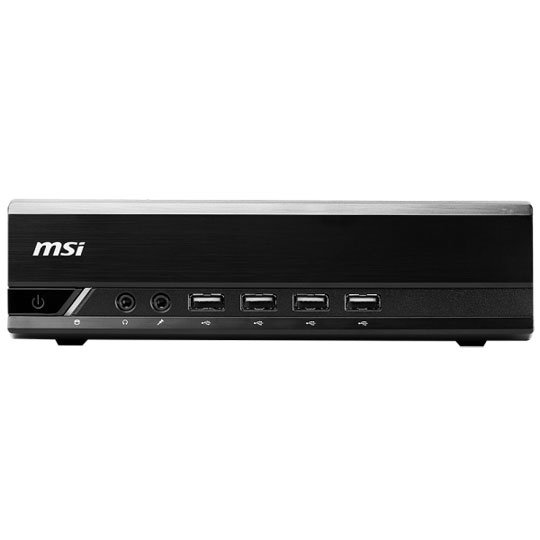

Front Panel
  • 1 x Headphone
  • 1 x Mic In
  • 4 x USB 2.0

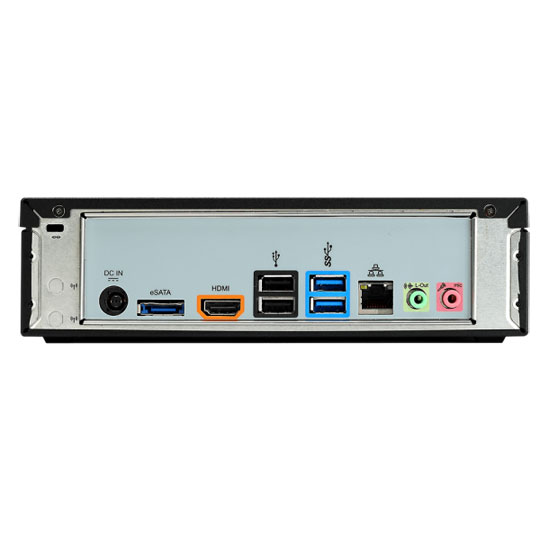

Back Panel
  • 1 x eSATA 3Gb/s
  • 1 x HDMI Out
  • 1 x Line In
  • 1 x Line Out
  • 2 x USB 2.0
  • 2 x USB 3.0
Processor Graphics N/A
Base GPU Speed N/A
Max. GPU Speed N/A
Max. GPU Resolution
Drive Bays N/A
Optical Drives None
Keyboard / Mouse No
Remote Control No
VESA Mountable
Operating System Included No
Operating System N/A
Colour Black
Dimensions 202 x 204 x 54.8 (mm WxHxD)
