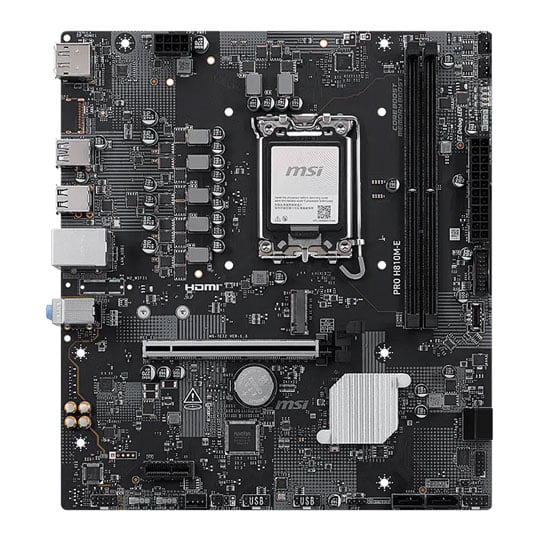

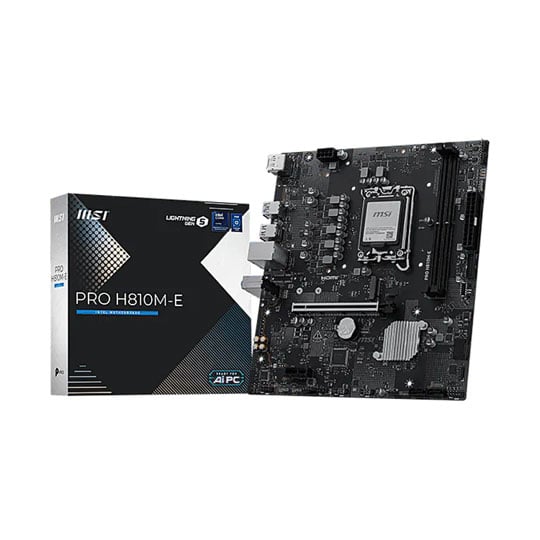

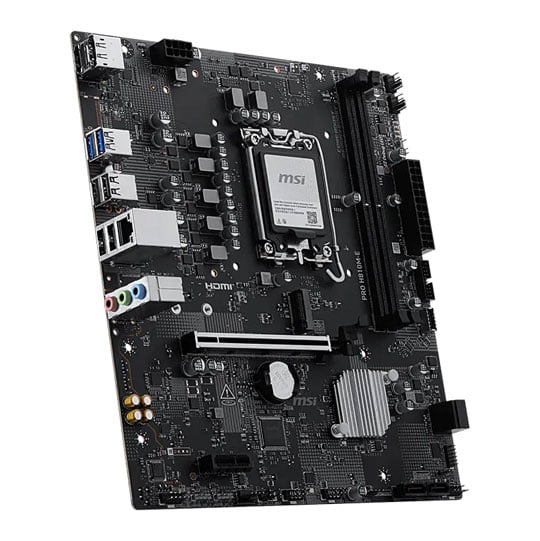

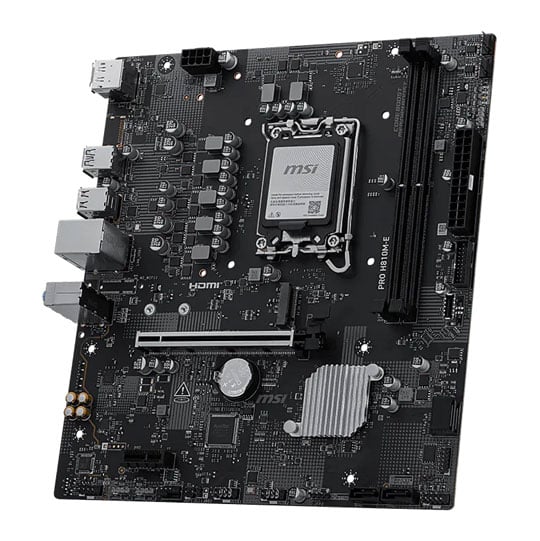

MSI PRO H810M-E S 1851 DDR5 PCIe 5.0 Micro ATX Motherboard
MSI PRO H810M-E Motherboard, Intel B860, S 1851, DDR5, PCIe 5.0, 1x M.2, 2.5GbE, USB 3.0, Intel XMP, mATX
Email me when the availability or price changes
Finance this product
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
MSI PRO H810M-E Motherboard
Designed for modern Intel desktop systems, the mATX MSI PRO H810M-E combines the Intel H810 chipset and LGA 1851 socket with support for Intel Core Ultra Processors (Series 2), DDR5 memory, PCIe 5.0 graphics connectivity, PCIe 4.0 NVMe storage, 2.5G LAN, and a comprehensive selection of USB ports. With two DDR5 DIMM slots supporting up to 128GB, a PCIe 5.0 x16 slot, a PCIe 4.0 x4 M.2 slot, four SATA 6Gbps ports, and front USB Type-C connectivity, it provides a capable foundation for compact productivity and everyday computing systems. MSI's Core Boost, Memory Boost, Frozr AI Cooling, Audio Boost, and EZ DIY technologies further enhance performance, cooling, connectivity, and ease of system management.
Intel Core Ultra Platform
The PRO H810M-E uses the Intel H810 chipset and LGA 1851 socket, supporting Intel Core Ultra Processors (Series 2). MSI Core Boost combines a premium motherboard layout with digital power design to provide precise current delivery to the CPU, supporting multi-core processors and helping create suitable conditions for demanding workloads.
High-Speed DDR5 Memory
Two DDR5 UDIMM slots support up to 128GB of dual-channel memory, with standard DDR5 speeds from 4800 to 7200 MT/s and overclocking support up to 7200 MT/s with 1DPC 1R configurations. The motherboard supports CUDIMM and non-ECC unbuffered memory, while MSI Memory Boost and Memory Extension Mode provide additional options for optimising compatible memory performance.
PCIe 5.0 Graphics Expansion
The primary PCIe 5.0 x16 slot connects directly to the processor, providing up to 128GB/s of bandwidth for compatible graphics cards and expansion hardware. An EZ PCIe Clip II mechanism makes removing a graphics card easier, particularly where access is restricted by a compact PC case.
Lightning Gen 4 M.2 Storage
A dedicated M.2 PCIe 4.0 x4 slot provides up to 64Gbps of bandwidth for compatible NVMe SSDs, supporting 2260 and 2280 drives. Four SATA 6Gbps ports provide additional storage connectivity for compatible SATA drives, giving the motherboard flexibility for combining high-speed NVMe storage with larger-capacity SATA devices.
2.5G High-Speed Networking
A Realtek 8125D 2.5Gbps LAN controller provides high-speed wired networking for gaming, file transfers, streaming, and productivity. MSI AI LAN Manager can automatically prioritise latency-sensitive applications, including online games, while allowing users to adjust application traffic priorities and bandwidth allocation.
Intelligent System Cooling
Frozr AI Cooling monitors CPU and GPU temperatures and automatically adjusts system fan duty to help maintain appropriate cooling performance. Dedicated CPU and system fan headers provide connection points for compatible cooling solutions, while the chipset heatsink is designed to maintain efficient heat dissipation.
Flexible USB Connectivity
The PRO H810M-E provides USB 5Gbps and USB 2.0 connectivity, with two USB 5Gbps Type-A ports and USB 2.0 connections available at the rear. Internal headers provide additional USB 5Gbps Type-A and Type-C connectivity for compatible PC cases and front-panel peripherals.
7.1-Channel Audio
The integrated Realtek ALC897 codec provides 7.1-channel High Definition Audio. MSI Audio Boost combines a high-definition audio processor, high-quality audio components and connectors, isolated audio signalling, and de-pop protection to provide an enhanced audio experience for gaming, entertainment, and everyday computing.
EZ DIY System Management
MSI's EZ DIY features simplify installation, troubleshooting, and system configuration. EZ PCIe Clip II allows the graphics card to be released with one finger, while EZ Debug LEDs help identify hardware issues during startup. MSI Driver Utility Installer can automatically detect suitable drivers and utilities once the system is connected to the internet, while Click BIOS X provides accessible tools for XMP, hardware monitoring, BIOS updates, profiles, and system configuration.
• Intel H810 chipset with LGA 1851 socket.
• Supports Intel Core Ultra Processors (Series 2).
• mATX form factor.
• 2 x DDR5 DIMM slots supporting up to 128GB.
• PCIe 5.0 x16 graphics slot.
• PCIe 4.0 x4 M.2 storage.
• Realtek 8125D 2.5Gbps LAN.
• USB 5Gbps Type-A and Type-C connectivity.
• Realtek ALC897 7.1-channel High Definition Audio.
• MSI Core Boost, Memory Boost, Frozr AI Cooling and EZ DIY features.
