Scan code: LN142450 Manufacturer code: PRO H610M-G

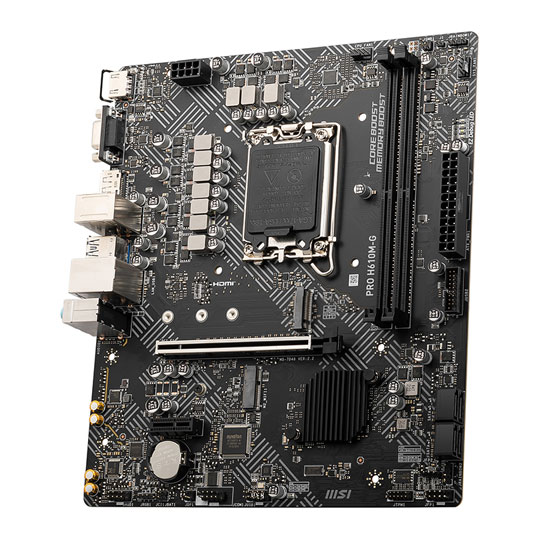

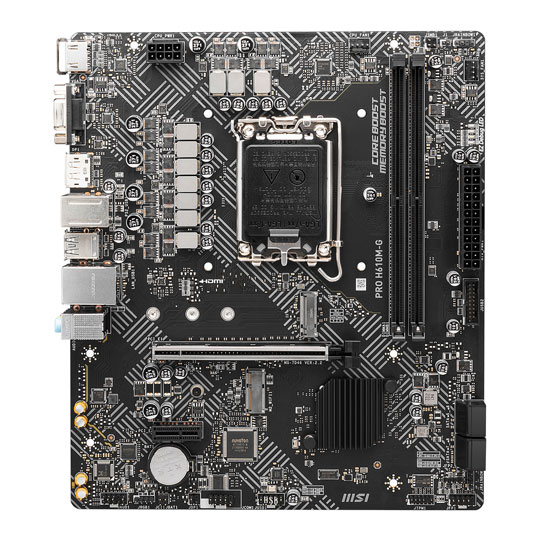

MSI PRO Intel H610M-G Micro-ATX Motherboard

MSI PRO H610M-G, Intel H610, DDR5, SATA 6Gb/s, PCIe 4.0, M.2, Intel I219-V GbE, USB 3.2 Gen1, HDMI/DP/VGA, mATX

Thumbnail 1 : MSI PRO Intel H610M-G Micro-ATX Motherboard Thumbnail 2 : MSI PRO Intel H610M-G Micro-ATX Motherboard Thumbnail 3 : MSI PRO Intel H610M-G Micro-ATX Motherboard Thumbnail 4 : MSI PRO Intel H610M-G Micro-ATX Motherboard
Scan code: LN142450 Manufacturer code: PRO H610M-G
Order now and receive it by Friday, 14th June
£89.99
Get it Friday, 14 JunIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 14th Jun to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Business Elegance

The PRO H610M-G is a business-oriented Micro-ATX motherboard featuring the Intel H610 chipset that fulfils business needs.


Supports Intel Core 12th Gen Processors

The PRO H610M-G DDR4 motherboard supports 12th Gen Intel Core, Pentium Gold, and Celeron processors.


Integrated Cooling Features

Chipset Heatsink: Provides passive cooling.
Frozr AI Cooling: Automatically adjusts system fan settings based on CPU & GPU.


2 X DDR5 Dual Channel (4800 MHZ)

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
XMP profiles in MSI BIOS are MSI OC LAB tested and can be easily enabled with auto power settings for optimized memory speed and stability.


Fortified PCI-E 4.0 X16

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.


GEN3 M.2 Connector

The PRO H610M-G motherboard features MSI's Turbo Gen3 M.2 slot.


Stay Connected

1G LAN: A Realtek 1Gbps LAN controller delivers a premium network experience.
USB 3.2 Gen 1 Type-A: Connect to devices and transfer files at high bandwidth rates: 5Gb/s.
HD Audio: 7.1-Channel High Definition Audio with Audio Boost.
Display Ports: Include HDMI 2.1 (4K/60Hz), DisplayPort 1.4 and legacy VGA


Features


• Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket.
• Supports DDR5 Memory, up to 5600(MAX) MHz.
• Core Boost : With premium layout and digital power design to support more cores and provide better performance.
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
• Lightning Fast Experience: PCIe 4.0.
• Audio Boost: Reward your ears with studio grade sound quality.
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Specifications
Core Specifications
Edition PRO H610M-G
Form Factor MicroATX
CPU Socket 1700
Chipset Intel H610
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 3200
  • DDR5 - 4600(OC)
  • DDR5 - 5600
Max. Memory Capacity 96GB
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
  • 4 x SATA 6GB/s
SATA Support N/A
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Chassis Intrusion connector
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 1 x M.2
  • 1 x MONO out header
  • 1 x RGB LED connector
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x TPM 2.0 Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)

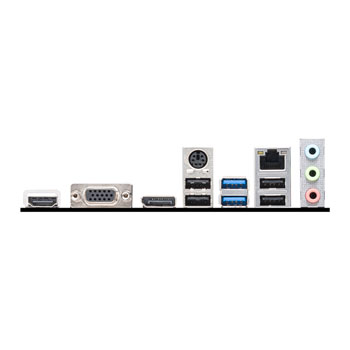

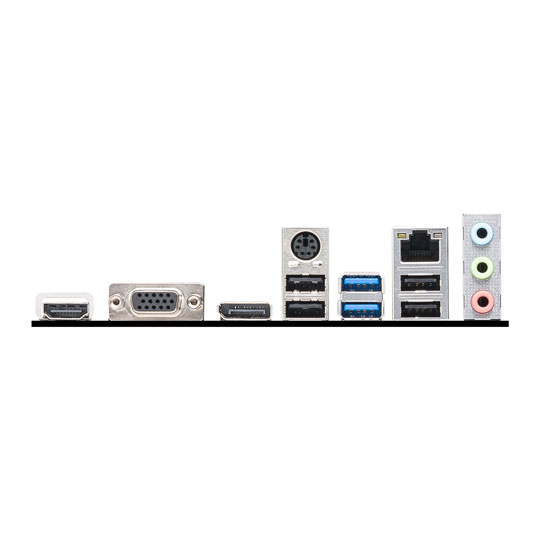

Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x D-Sub (VGA)
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x S/PDIF-In (Optical)
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 211 x 243.84 mm
Note
Additional Information
Scan Code LN142450
Model Number PRO H610M-G
GTIN 4719072942663
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
MSI
