B850-P WIFI DDR5 PCIe 5.0 AMD ATX Motherboard from MSI
Empower Your WorkflowFeaturing a striking black PCB paired with brushed metal heatsinks adorned with artistic stripe etchings, the B850-P WIFI radiates modern vibrancy. Built on the AMD B850 chipset and ready for Ryzen 9000 series processors, it offers a 12+2+1 phase power design, a PCIe 5.0 M.2 slots, and Gen5 PCIe x16 connectivity, with Wi‑Fi 7 and 5G LAN delivering brisk network performance. This board encapsulates the P Series ethos, presenting a smart, lively platform for professionals who value a fresh take on business elegance.
B850AMD Chipset
AM5CPU Socket
DDR5 DIMMMax. 256GB (Dual Channel)
ATXForm Factor
Incredible Power Design

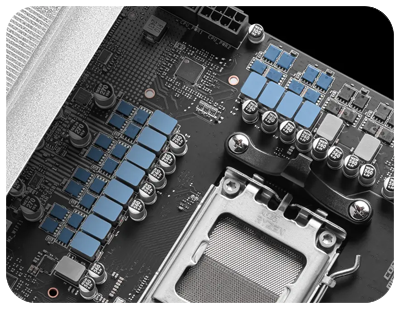

12+2+1 DRPS POWER DESIGN Unlock and maintain peak performance with the flagship VRM design featuring 12+2+1 digital power phases. Equipped with dual power connectors and a 60A Smart Power Stage, the B850-P WIFI is fully prepared to handle the demands of high-end processors.
12 Vcore Power - SPS 60A
2 SOC Power
1 Misc Power

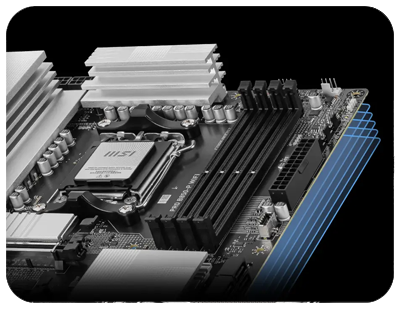

Optimised PCB The PCB design has been optimised to enhance bandwidth and accelerate transfer speeds, ensuring reliable circuit transmission. 6 PCB Layers Server-grade PCB material 2oz Thickened Copper
High Performance Memory Support

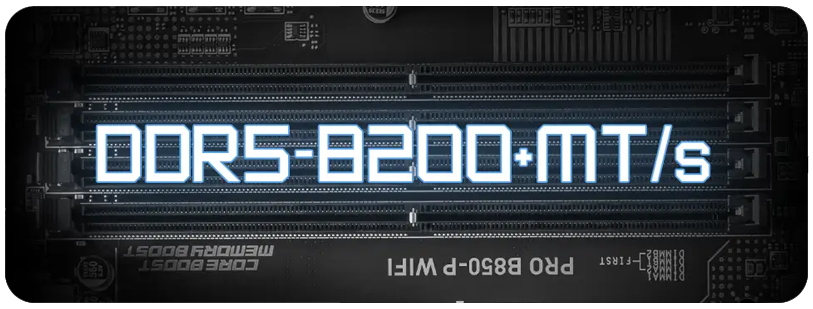

Unleash World-Class DDR5 Performance Experience a significant leap in DDR performance with the latest DDR5 memory. Paired with a dedicated SMT welding process and MSI Memory Boost technology, the B850-P WIFI is primed to deliver world-class memory performance.
EXPO / A-XMP Support
Memory Boost
SMT Process
Is your Windows Genuine?
Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

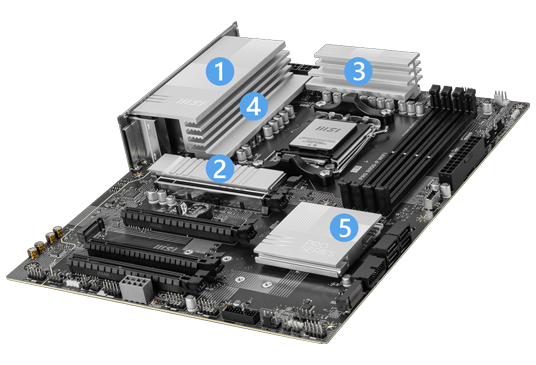

CLICK HERE TO FIND OUT MORE >Frozr Cooling Design
1. Extended HeatsinksThe Extended Heatsink increases the surface area for heat dissipation, allowing even high-end processors to operate at full speed.
2. M.2 Shield FrozrAchieve reliable operation and incredible performance with this strengthened M.2 thermal solution.
3. Heavy Plated VRM HeatsinkThe upper MOS is protected with the VRM heatsink for efficient heat dissipation.
4. 7W/mK Thermal PadPremium 7W/mK MOSFET thermal pads and additional choke thermal pads guarantee all cores operate at peak performance.
5. Enlarged Chipset HeatsinkThe enlarged heatsink design minimises dust and noise while ensuring efficient heat dissipation.
Thermals Done Your Way

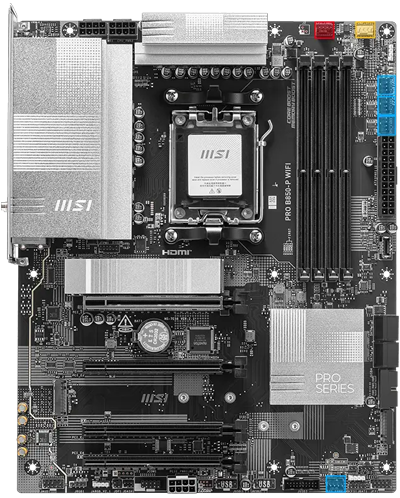

DIY 2.0
Connect and synchronise with MSI coolers and cases using strategically placed pin-header locations, including a dedicated pump-fan header.
For CPU Cooler
For Liquid Cooler
For System Fan
A Breakthrough in Bandwidth

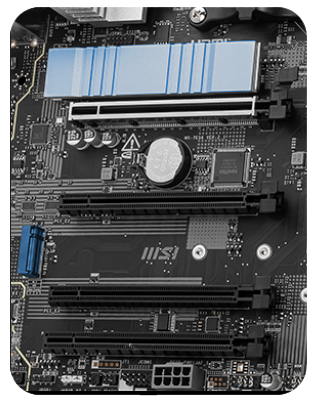

Triple M.2 Slots
MSI utilises high-speed M.2 slots with PCIe Gen 4 and Gen 5 support, enabling faster load times and efficient data transfers for SSDs.
x1 Armoured M.2 PCIe 5.0 x4 (2280/2260)
x1 M.2 PCIe 4.0 x4 M.2 (22110/2280)
x1 M.2 PCIe 4.0 x2 (2280/2260) [Not Pictured]

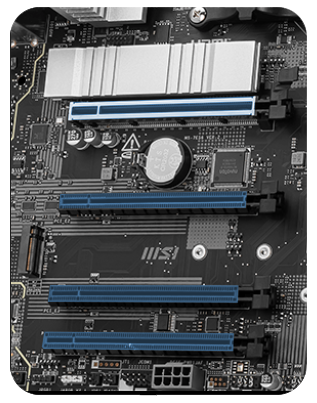

Packed with PCIe
For PCIe, MSI motherboards maximise bandwidth with reinforced slots and advanced signal integrity, ensuring top-tier performance for GPUs and expansion cards.
x1 Steel Armoured Full-Length PCIe 5.0 (x16)
x1 Full-Length PCIe 4.0 (x4)
x2 Full-Length PCIe 3.0 (x1)
Supercharge Your Networking
WiFi 7 - 5.8Gbps
WiFi 6 - 2.4Gbps
WiFi 7The Wi-Fi 7 provides maximum speeds to a whopping 5.8 Gbps! 2.4 times faster than previous Wi-Fi 6/6E standards, Wi-Fi 7 is set to be the wireless standard of the future.
High-Bandwidth, Low Latency LANMSI's premium 5G network solution provides incredible transfer speeds for demanding users.
Peripheral Power
