MSI B850 GAMING PLUS WIFI WiFi-7 AM5 DDR5 PCIe 5.0 ATX Motherboard
Today Only
MSI B850 GAMING PLUS WIFI WiFi-7 AM5 DDR5 PCIe 5.0 ATX Motherboard
Scan code: LN154202 Manufacturer code: B850 GAMING PLUS WIFI
Was: £199.99
£189.98
Get it Tomorrow, 15 FebIn stock
  • Thumbnail 1 : MSI B850 GAMING PLUS WIFI WiFi-7 AM5 DDR5 PCIe 5.0 ATX Motherboard
  • Thumbnail 2 : MSI B850 GAMING PLUS WIFI WiFi-7 AM5 DDR5 PCIe 5.0 ATX Motherboard
  • Thumbnail 3 : MSI B850 GAMING PLUS WIFI WiFi-7 AM5 DDR5 PCIe 5.0 ATX Motherboard
  • Thumbnail 4 : MSI B850 GAMING PLUS WIFI WiFi-7 AM5 DDR5 PCIe 5.0 ATX Motherboard
Today Only

MSI B850 GAMING PLUS WIFI WiFi-7 AM5 DDR5 PCIe 5.0 ATX Motherboard

MSI B850 GAMING PLUS WiFi, AMD B850, AM5, DDR5, PCIe 5.0, 3x M.2, 5G/WiFi7, USB 3.2 A+C, AMD EXPO, ATX

Scan code: LN154202 Manufacturer code: B850 GAMING PLUS WIFI
Was: £199.99£189.98
FREE DELIVERY ON THIS ITEM
Order now and get it tomorrow (upgrade to Saturday delivery at checkout)
Get it Tomorrow, 15 FebIn stock

Email me when the availability or price changes

  • By DPD On 17th Feb Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £15.84 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £15.84
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £189.98
    Total inc. interest: £189.98
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info

Frequently Bought Together

Product Overview
MSI steam promotion

Seize Your Competitive Edge

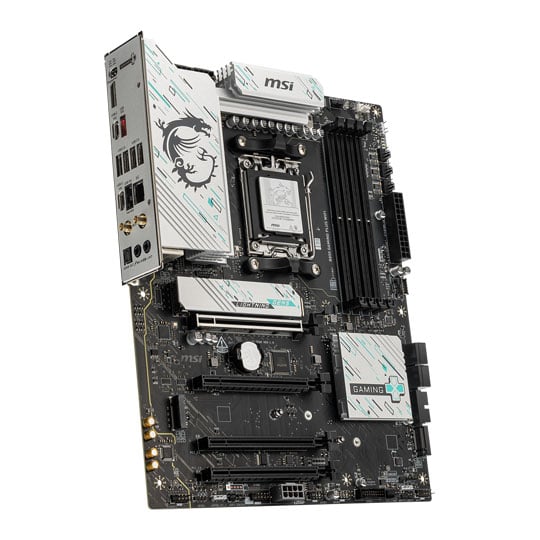

The MSI B850 GAMING PLUS WIFI is a high-performance ATX motherboard designed for both gamers and enthusiasts. It features the cutting-edge AMD B850 chipset, supporting the latest AMD Ryzen 9000, 8000, and 7000 series desktop processors. This powerful board boasts a robust 12-Duet Rail Power System, ensuring stable power delivery for optimal performance. B850 GAMING PLUS WIFI also boasts ultra-fast DDR5 memory support and PCIe 5.0 technology, offering lightning-fast connectivity for next-gen graphics cards and storage devices. Users will appreciate the ultra-fast 5G LAN and Wi-Fi 7 capabilities, providing a seamless online gaming experience. Balancing premium features with value, the B850 GAMING PLUS WIFI is the perfect motherboard for individuals looking for a new way to experience all that the AM5 Socket has to offer.


Supporting The Latest Ryzen Processors

The B850 GAMING PLUS WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.

Form Factor: ATX
Socket Type: AM5
Chipset: AMD B850


Robust 12 Duet Rail Power System with P-PAK

Featuring exclusive MSI Core Boost technology, dual 8-pin power connectors and EZ OC Tuning functions, the B850 GAMING PLUS WIFI is able to sustain heavy CPU power loads to support resource-heavy games and software to suit your needs:

Digital PWM IC
12 Duet Rail Power System (P-PAK)
2 Phase SOC Power
1 Phase MISC Power


A Comprehensive Cooling System

Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.

Frozr Sync: Connect and synchronise cooling with strategically placed pin-headers - including your CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.

Frozr Control: Manage speeds and temperature for each of the fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.


4 x DDR5 Dual Channel (8200+ MT/s OC)

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules.

EXPO Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimised memory speed and stability.


Fortified PCIe 5.0 x16 Slot

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.

1 x PCIe 5.0/4.0/3.0 x16 slot (with Steel Armor*)
1 x PCIe 4.0/3.0 x16 slot
2 x PCIe 3.0 x1 slots


Gen5 M.2 Connector

The B850 GAMING PLUS WIFI motherboard features MSI's M.2 slots:

• 1 x Gen5 x4 128Gbps slot (with EZ M.2 Shield Frozr II)
• 1 x Gen4 x4 64Gbps slot
• 1 x Gen4 x2 32Gbps slot


EZ DIY

The DIY Friendly designs optimize the assemble process and experience.

EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.

EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.

EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.

EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.


High-speed Connectivity

5G LAN: A Realtek 5Gbps LAN controller delivers a premium network gaming experience.

Wi-Fi 7: Features the full-speed Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.

USB 10Gbps Type-C: Connect to devices and transfer files at high bandwidth rates.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost.


Features

Lightning Gen 5: The latest PCIe 5.0 solution with a staggering 128GB/s theoretical bandwidth for maximum transfer speed.
EZ M.2 Shield Frozr II: A new tool-less design, optimised to make installing or removing your M.2 SSD much easier to do.
Triple M.2 Connectors: Onboard 3x M.2 connectors (1x Gen5, 2 Gen4)
EZ PCIe Clip II: Designed to make removing your graphics card easier with a single finger simply flip the latch even in tight chassis.
Extended Heatsink design: MSI utilise extened PWM heatsinks and an enhanced circuit design to allow high-end processors to run at maximum speeds.
Latest DDR5 memory: A huge step forwards in the capabilities of DDR5 memory in combination with exclusive MSI DDR5 memory boost technology.
5G & Wifi 7: always get the best from your connectivity with high-speed 5G LAN and the latest WiFi 7 wireless solution.


Specifications
Core Specifications
Edition B850 GAMING PLUS WiFi
Form Factor ATX
CPU Socket AM5
Chipset AMD B850
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR5 - 8200(OC)
Max. Memory Capacity
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors DisplayPort
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-80, PCIe Gen4x2
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 1 x M.2, 22-80, PCIe Gen5x4
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
External Connectivity
Network Interface Type
  • 802.11be Wi-Fi 7 LAN
  • Wired 5 Gigabit LAN (5000)
Network Chip/Modules
  • 1 x 802.11be WiFi 7 + BT5.4
  • 1 x Realtek (5GbE LAN)

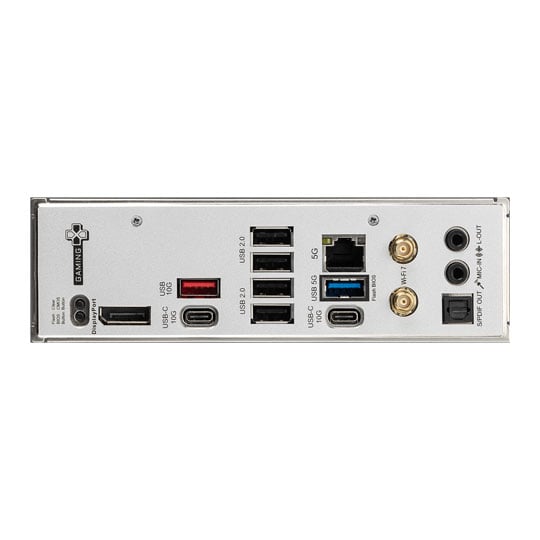

Rear I/O Connectors
  • 1 x Clear CMOS Button
  • 1 x DisplayPort
  • 1 x Flash BIOS Button
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 1 x S/PDIF-In (Optical)
  • 4 x USB 2.0
  • 1 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 2 x USB 3.2 Gen2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions
Note
Additional Information
Scan Code LN154202
Model Number B850 GAMING PLUS WIFI
GTIN 4711377285438
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
MSI
Loading Please Wait

Please wait . . .

Buying Guide
Need help choosing the right board? Read our AMD Motherboard Buying Guide
