MSI MPG Z890 EDGE TI WiFi DDR5 PCIe 5.0 ATX Motherboard
MSI MPG Z890 EDGE TI WiFi, Intel Z890, S 1851, DDR5, PCIe 5.0, 5x M.2, 5G LAN, WiFi7, TB4, ATX

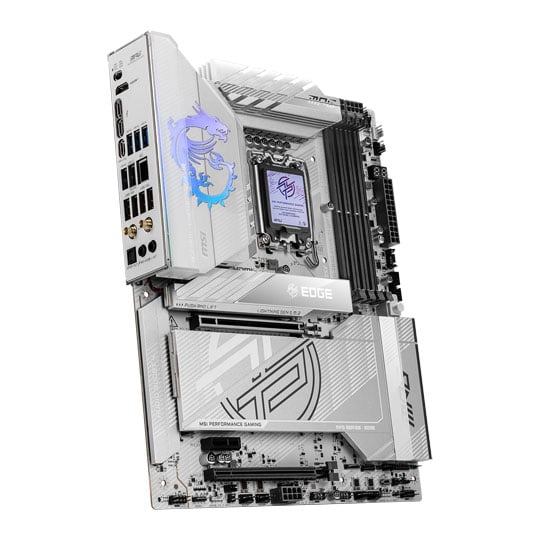

MPG Z890 EDGE TI WIFI ATX Motherboard

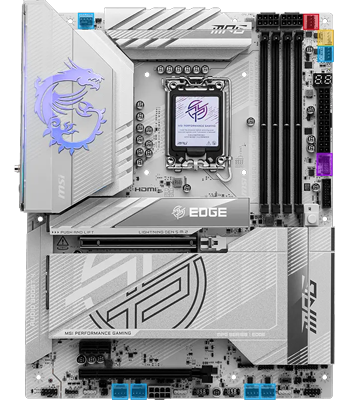

The MSI MPG Z890 EDGE TI WIFI motherboard is a cutting-edge ATX solution crafted for Intel's latest LGA 1851 socket Core ultra Series 2 processors. This top-end motherboard supports up to 256GB of blazing-fast DDR5 memory, with overclocking capabilities reaching 9200+ MT/s. Perfect for both gamers and content creators this motherboard is packed with top-shelf features including, Wi-Fi 7, ThunderBolt 4, PCIe 5.0 compatibility, space for 5x M.2 slots, a robust thermal management system and plenty of DIY Friendly features. The MPG Z890 EDGE TI WIFI boasts a stunning silver-white colour scheme with a subtle touch of RGB lighting for you to add your own personality. Squeeze every ounce of performance from your CPU with MSI.

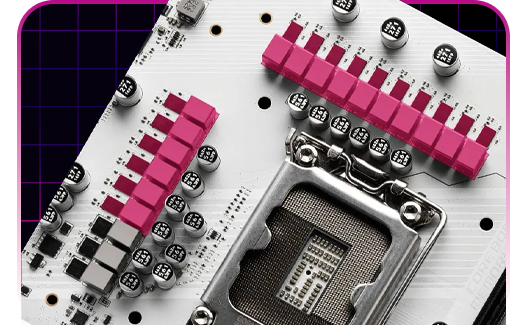

16+1+1+1 DRPS Power Design
Unleash and sustain maximum performance with a flagship VRM design built with a 16+1+1+1 Duet Rail Power System. Combining dual power connectors and 90A Smart Power Stage, The MPG Z890 EDGE TI WIFI is ready for the challenge of the latest high-end processors.

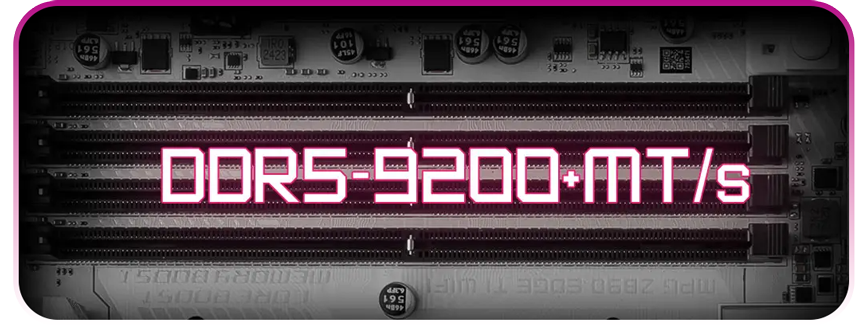

Maximum DDR5 Memory Performance
A huge step forward in regards to DDR5 performance, the MPG Z890 EDGE TI WIFI combines a dedicated SMT welding process and memory boost technology to reach speeds of up to 9200+ MT/s.

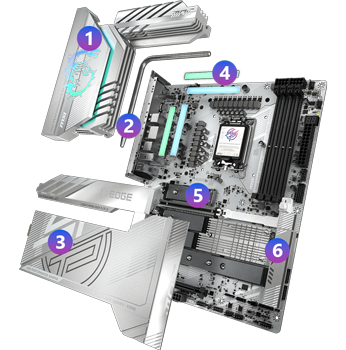

Impressive Thermal Performance
Extended Heatsink
Large Extended Heatsink works to enlarge the surface of heat dissipation, ensuring even high-end processors can run inat full speed whilst maintaining cool temperatures.
Heat-pipe
A heatpipe connecting the two MOS heatinks maximises thermal transfer by further increasing surface area.
M.2 Shield Frozr
Keep your M.2s safe, prevent throttling and allow them to run at maximum performance without worry.
7W/mK Thermal Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores can run at maximum performance.
Enhanced M.2 Thermal
Double-sided M.2 Shield frozr and enlarged heatsinks help to keep your high-performance SSDS safe from overheating & throttling.
Enlarged PCH Heatsink
Enlarging the chipset heatsink helps to maintain high heat efficiency whilst mainintaining low noise and dust resistance.
Next Generation WiFi 7
The latest generation of wireless technology, Wi-Fi 7, has made numerous advancements to meet the increased traffic demand and the rise in wireless devices.
Future-Proof Storage Options
MSI MPG series motherboards support all the latest storage standards, allowing users to connect ultra-fast storage devices, with space for up to five M.2 devices you'll have more than enough storage capabilities to save your movies, games, music and more.
Features
• Premium Thermal Design Heavy plated heatsink with heat-pipe / high quality 7W/mK MOSFET thermal pads / extra choke thermal pads / onboard M.2 Shield Frozr.
EZ PCIe Release A simple press of a button to effortlessly lock or unlock the PCIe slot, simplifying the installation and removal of the graphics card.
EZ M.2 Shield Frozr II The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier
Lightning Gen 5 The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
Latest DDR5 MemoryA huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Quintuple M.2 Connectors Onboard 5x M.2 connectors with one Lightning Gen 5 solution for the maximum storage performance.
Dual Thunderbolt™ 4 ports Thunderbolt™ 4 brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chain, Multi-Port Accessory Architecture and USB 4.0 compliant.

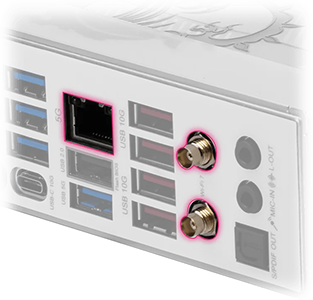

5G Network Solution Featuring premium 5G LAN to deliver better network experience.
Wi-Fi 7 The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
