MSI MAG Z890 TOMAHAWK WiFi DDR5 PCIe 5.0 ATX Motherboard
Black Friday
MSI MAG Z890 TOMAHAWK WiFi DDR5 PCIe 5.0 ATX Motherboard
Scan code: LN152104 Manufacturer code: Z890 TOMAHAWK WiFi
Was: £299.99
£274.99
Add To Basket
Get it Tomorrow, 07 DecIn stock
  • Thumbnail 1 : MSI MAG Z890 TOMAHAWK WiFi DDR5 PCIe 5.0 ATX Motherboard
  • Thumbnail 2 : MSI MAG Z890 TOMAHAWK WiFi DDR5 PCIe 5.0 ATX Motherboard
  • Thumbnail 3 : MSI MAG Z890 TOMAHAWK WiFi DDR5 PCIe 5.0 ATX Motherboard
  • Thumbnail 4 : MSI MAG Z890 TOMAHAWK WiFi DDR5 PCIe 5.0 ATX Motherboard
Black Friday

MSI MAG Z890 TOMAHAWK WiFi DDR5 PCIe 5.0 ATX Motherboard

MSI MAG Z890 TOMAHAWK WiFi, Intel Z890, S 1851, DDR5, PCIe 5.0, 4x M.2, 5G LAN, WiFi7, TB4, ATX
MORE INFO
MORE INFO

Scan code: LN152104 Manufacturer code: Z890 TOMAHAWK WiFi
Was: £299.99£274.99
FREE DELIVERY ON THIS ITEM
Order now and get it tomorrow (upgrade to Saturday delivery at checkout)
Add To Basket
Get it Tomorrow, 07 DecIn stock
  • By DPD On 9th Dec Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.79 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £11.46 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £22.92
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £274.99
    Total inc. interest: £274.99
    Monthly Payment: £11.46
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £274.99
    Total inc. interest: £274.99
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info

Frequently Bought Together

MSI promotion

MAG Z890 TOMAHAWK WIFI Intel ATX Motherboard

MSI Z890 Motherboard

Unleash Gaming Power The MAG Z890 TOMAHAWK WIFI motherboard is tailored for gamers, offering a robust, durable, and DIY-friendly platform for PC builds. It features advanced connectivity options, including Killer Wi-Fi 7 and 5G LAN, along with Thunderbolt 4 and PCIe 5.0 capabilities. Additionally, the motherboard includes supplemental PCIe power and exclusive EZ DIY features, making it well-suited for the latest Intel Core Ultra processors in competitive gaming environments.

Intel Z890Chipset

LGA 1851CPU Socket

Intel® Core™ Ultra Processors (Series 2)Compatible CPU

ATXForm Factor

Advanced Technology for Gaming and AI

Get ready for AI PC

MSI motherboards are equipped with cutting-edge hardware and technology to effectively support the demanding requirements of gaming and AI. Additionally, MSI has integrated AI features into both the MSI Center and BIOS, streamlining user experience and making operations simpler than ever before.

AI Engine Offers various categories to sync your desired applications, automatically optimising them for a more comfortable user experience.

Frozr AI Cooling Automatically regulates fan speeds to keep the system cool, stable, and performing at its best.

AI Boost An exclusive MSI feature that overclocks the NPU to significantly enhance AI performance.

AI LAN Manager Enhances networking performance and reduces latency, ensuring a smooth and uninterrupted online experience for users.

Ultra Powerful Performance

16+1+1+1

16+1+1+1 Duet Rail Power System Experience peak performance with MAG series motherboards, featuring a robust VRM design. Equipped with 8+8-pin power connectors and exclusive Core Boost technology, this motherboard is engineered to handle demanding gaming loads effortlessly.

16 Phases VCPU Power - 90A SPS

1 Phase SA Power

1 Phase GT Power

1 Phase VNNAON Power

Optimised PCB

Optimised PCB The PCB design has been enhanced to achieve higher bandwidth and faster transfer speeds, resulting in improved reliability for circuit transmission.

Boost Your Memory

DDR5 Support

DDR5 Memory Support Experience a massive step up in DDR5 memory performance. Combined with a dedicated SMT welding process and MSI Memory Boost technology, the MAG Z890 TOMAHAWK WIFI is ready to deliver world class memory performance.

XMP SUPPORT

MEMORY BOOST

SMT PROCESS

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

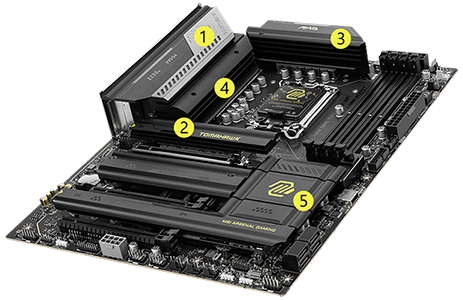

Optimum Cooling Efficiency

Extended Heatsink
The extended heatsink increases the heat dissipation surface area, ensuring optimal performance even under heavy loads.

Double-sided M.2 Shield Frozr
The enhanced M.2 thermal solution protects the M.2 SSD, ensuring it remains safe while delivering exceptional performance.
Cooling Efficiency

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS, aiding in effective heat dissipation.

7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and extra choke thermal pads guarantee stable performance during high-speed operation on all cores.

Enlarged Chipset Heatsink
The enlarged heatsink minimises dust and noise while ensuring efficient heat dissipation.

Easily Build Your Dream PC

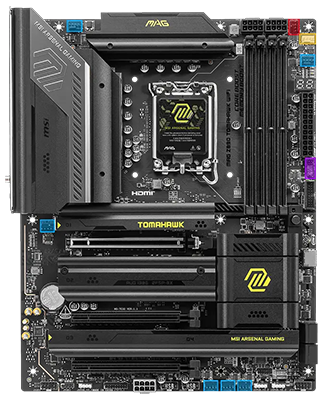

DIY 2.0 Connect and synchronise with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

DIY 2.0

◼  FOR CPU COOLER
◼  FOR LIQUID COOLER
◼  FOR SYSTEM FAN
◼  EXCLUSIVE EZ CONN. - JAF_2

Lighting Fast Transfers

PCIe 5.0

LIGHTNING GEN 5 PCI-E Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

Steel Armor II Compared to the previous generation, Steel Armor II's weight endurance has increased by 21%, ensuring excellent signal transmission.

SMT PCIE 5.0 SLOT The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully supporting PCI-E 5.0.

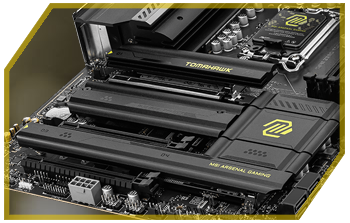

Up to 128 Gbps

FAST AND FUTURE-READY STORAGE MSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

WI-FI 7 WI-FI 6

WI-FI 7 Wi-Fi 7 is the latest wireless solution that takes a huge leap forward with multiple improvements to meet the traffic demands brought from the growing number of wireless devices.

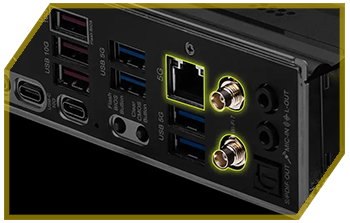

10G

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK MSI's premium network solution provides incredible data transfer speeds for demanding users.

Versatile Connectivity Options

IO Options
USB 10Gbps Type-A
USB 5Gbps Type-A
5G LAN
Wi-Fi/Bluetooth
Audio Connectors
HDMI™
Thunderbolt™ 4 40Gbps (Type-C)
USB 10Gbps Type-C
Flash BIOS Button
Clear CMOS Button
USB 5Gbps Type-A
S/PDIF-OUT
Specifications
Core Specifications
Edition MAG Z890 TOMAHAWK WIFI
Form Factor ATX
CPU Socket 1851
Chipset Intel Z890
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U)
Memory Speed (Mhz)
  • DDR5 - 6400(OC)
  • DDR5 - 6400+(OC)
  • DDR5 - 6600(OC)
  • DDR5 - 6600+(OC)
  • DDR5 - 6800(OC)
  • DDR5 - 7000(OC)
  • DDR5 - 7000+(OC)
  • DDR5 - 7200(OC)
  • DDR5 - 7400(OC)
  • DDR5 - 7600(OC)
  • DDR5 - 7800(OC)
  • DDR5 - 7800+(OC)
  • DDR5 - 7900(OC)
  • DDR5 - 7950(OC)
  • DDR5 - 8000(OC)
  • DDR5 - 8200(OC)
  • DDR5 - 8266(OC)
  • DDR5 - 8400(OC)
  • DDR5 - 8600(OC)
  • DDR5 - 8800(OC)
  • DDR5 - 9000+(OC)
  • DDR5 - 9200+(OC)
Max. Memory Capacity
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • HDMI 2.1
  • Thunderbolt 4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x M.2, 22-60/80, PCIe Gen4x4/SATA
  • 1 x M.2, 22-60/80, PCIe Gen5x4
  • 1 x M.2, 22-60/80/110 PCIe Gen 4x4
  • 2 x PCIe 4.0 x16
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via SATA3 / M.2
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Chassis Intrusion connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 4 x M.2
  • 1 x PCIe Power Connector
  • 1 x RGB Header
  • 4 x SATA III - 6Gb/s
  • 6 x System Fan header
  • 1 x TPM 2.0 Header
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1
  • 1 x USB 3.2 Gen2x2
External Connectivity
Network Interface Type Wired 5 Gigabit LAN (5000)
Network Chip/Modules 1 x 802.11be WiFi 7 + BT5.4

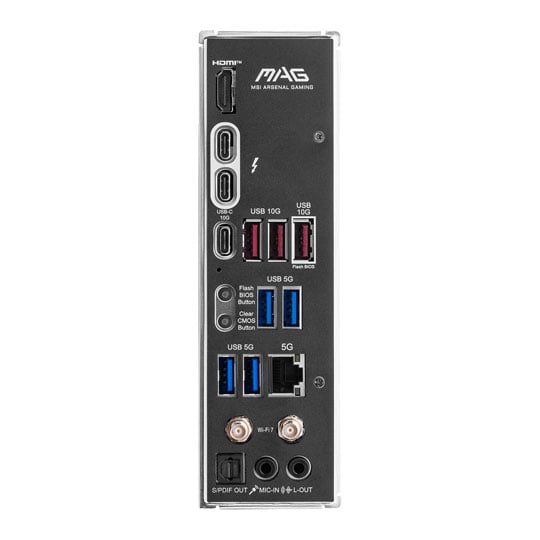

Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x Clear CMOS Button
  • 1 x HDMI 2.1
  • 1 x Headphone-Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 2 x Thunderbolt 4
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-A (BIOS Flash)
  • 1 x USB 3.2 Gen2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN152104
Model Number Z890 TOMAHAWK WiFi
GTIN 4711377259712
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
MSI
