MSI Intel MAG B760M MORTAR WIFI II Micro-ATX Motherboard

MSI MAG B760M MORTAR WIFI II, Intel B760, LGA1700, DDR5, SATA3, PCIe 5.0, 3x M.2, 2.5GbE, WiFi 6E, USB 3.2 Gen2x2, mATX
MORE INFO
MORE INFO

Scan code: LN141989 Manufacturer code: MAG B760M MORTAR WIFI II
£179.99
£5.48 NEXT DAY DELIVERY
Order now and get it tomorrow, Wed 15th Jan
Add To Basket
Get it Tomorrow, 15 JanIn stock

Email me when the availability or price changes

  • By DPD On 15th Jan Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.79 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £15.00 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £15.00
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £179.99
    Total inc. interest: £179.99
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info

Frequently Bought Together

MSI steam promotion

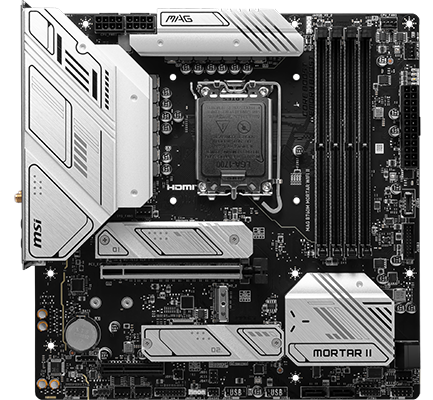

MSI Intel MAG B760M MORTAR WIFI II Micro-ATX Motherboard

MSI B760 Motherboard

Unite As One Meet the B760M MORTAR WiFi II, the latest edition to the MAG B760 series, designed and constructed to draw the full potential from the latest 14th Generation Raptor-Lake CPUs, by combining durability, value and stunning aesthetics with a military-inspired twist as well as a small micro-ATX footprint for maximum compatibility with smaller more compact builds. Boasting support for ultra-fast DDR5 memory, an enhanced 12+1+1 duet rail power system, lightning-fast PCIe 5.0 technology, Gen4 M.2 storage and a premium thermal solution consisting of extended heatsink designs, M.2 Shield Frozr and high-end thermal pads. Combined these features allow you to push the boundaries of modern performance. Build something beautiful with MSI.

Intel B760Chipset

LGA 1700CPU Socket

14th/13th/12th Gen Intel® Core™ ProcessorsCompatible CPU

M-ATXForm Factor

Outstanding Cooling Solution

Superb Cooling
Thermal Pads

7W/mK MOSFET Thermal Pads

M.2 Shield FROZR

M.2 Shield Frozr

Pump fan support

Pump Fan Support

Extended heatsinks

Extended Heatsink

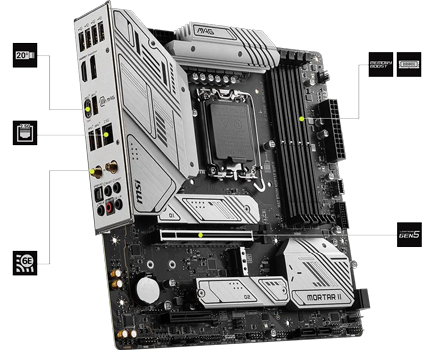

High-Speed Transmission

Connectivity options
10G

2.5G LAN

10G

Lighting USB 20G

Wifi 6e

Wifi
6E

Gen 5 slots

PCIE 5.0
Slots

Memory Boost

DDR5 Memory

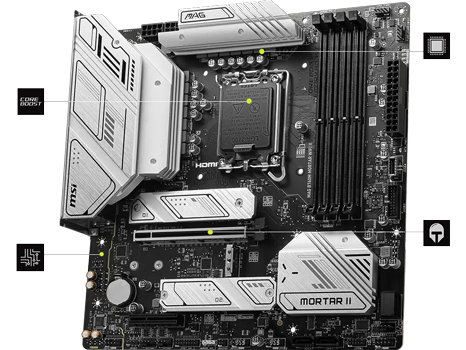

A Stable Cornerstone for Your System

DIY protection
Steel PCIe slots

Steel PCIe
armor

Digital PWM

12+1+1
Duet Rail Power75A SPS

PCB

Server Grade
PCBs

Digital PWM

Core
Boost

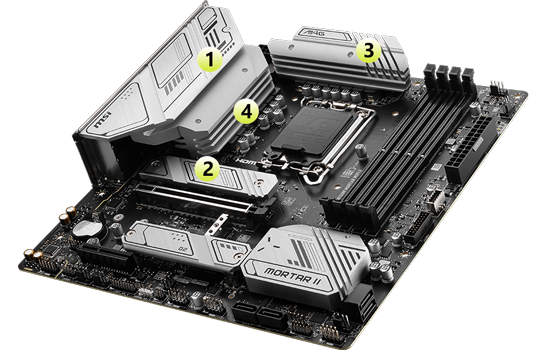

Massive Cooling Potential

1. Extended HeatsinksLarge extended heatsinks increase the surface area of heat dissipation, ensuring even high-end processors can run at full speed.

2. M.2 Shield FrozrM.2 thermal solutions keep M.2 SSDs safe while preventing throttling, making them run cooler and faster.

Massive Cooling heatsinks

3. Heavy Plated VRM HeatsinkThis VRM heatsink, covers the upper MOS and helps to increase heat dissipation.

4. 7W/mK Thermal PadHigh quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensures all cores run at their maximum performance.

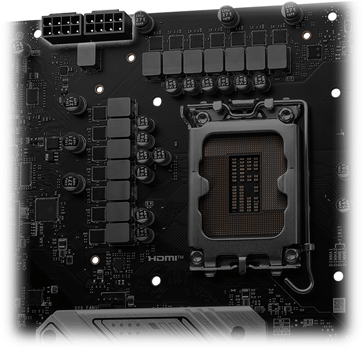

Aggressive Power Design

Robust power design

12 PhaseCore 75A Power Stage

1 PhaseGT Power

1 PhaseAUX Power

12+1+1 DUET RAIL POWER SYSTEMUnleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MAG B760 series motherboard is ready to sustain heavy gaming loadings.

Meet The Latest Generation

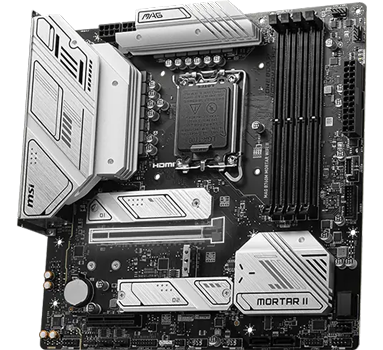

PCIE 5 slots

LIGHTNING GEN 5 PCI-ESay hello to double the speeds of the previous generation, PCIe 5.0 brings an x16 interface capable of reaching speeds of up to 128 GB/s.

SMT PCIe 5.0 SlotThe advanced surface mount technology (SMT) PCIe slot reduces interference and electrical noise to fully support the PCIe 5.0 signal.

Maximise Your Storage Capabilities

Storage capabilities

Fast and future ready storageMSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

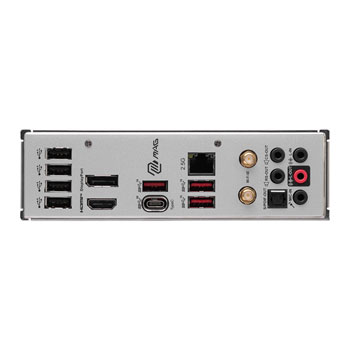

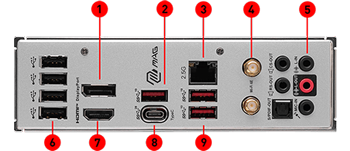

Fully Comprehensive I/O Panel

i/O Panel

Rear: 1: DisplayPort 1.4
2: USB 3.2 Gen 2 10Gbps Type-A
3: 2.5G LAN Port
4: Wi-Fi / Bluetooth
5: HD Audio Connectors
6: USB 2.0
7: HDMI™ 2.1 Port
8: USB 3.2 Gen 2x2 20Gbps Type-C
9: USB 3.2 Gen 2 10Gbps Type-A

Specifications
Core Specifications
Edition MAG B760M MORTAR WIFI II
Form Factor MicroATX
CPU Socket 1700
Chipset Intel B760
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz)
  • DDR4 - 5333(0C)
  • DDR5 - 4800
  • DDR5 - 5000
  • DDR5 - 5200
  • DDR5 - 5400
  • DDR5 - 5600
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600(OC)
  • DDR5 - 6800(OC)
  • DDR5 - 7000(OC)
  • DDR5 - 7400(OC)
  • DDR5 - 7600(OC)
  • DDR5 - 7800+(OC)
Max. Memory Capacity 192GB
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x M.2, 22-80, PCIe/SATA
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 2.5 Gigabit LAN
  • 1 x 802.11ax WiFi 6E + BT5.3
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x Central Speaker Out
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 2.0
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi 802.11ax 6E / Bluetooth 5.3
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 243.84mm x 243.84mm mm
Note
Additional Information
Scan Code LN141989
Model Number MAG B760M MORTAR WIFI II
GTIN 4711377140119
