MSI Cubi NUC 1M Intel Core 3 100U Barebone Desktop Mini PC
MSI Cubi NUC 1M Intel Core 3 100U Desktop Mini-PC, Barebone Kit, Thunderbolt 4, Dual LAN, VESA, WiFi 6E
- SCANPROTECT Protect against installation damage for 28 days. More info
MSI Cubi NUC 1M Intel Core 3 (14th Gen) Barebone Desktop Mini PC Kit
The essence of productivity Sleek and elegant, the MSI Cubi 1M NUC is a versatile Mini-PC that redefines convenience. Whether you're looking for a change in simplicity or building a sustainable multi-user network, the NUC is a great option that provides essentials for everyone. MSI Cubi 1M Barebone Kit comes fitted with an Intel® Core™ 3 100U (14th Gen) processor and integrated Iris® Xe graphics. For true customisation, you can install up to 64GB DDR5 SO-DIMM RAM in 2 slots and there's ample space to add storage drives (x1 2.5" HDD, x1 M.2 PCIe 22-42 Gen4 SSD and x1 M.2 PCIe 22-80 Gen4 SSD ‐ sold separately). When you need to make an upgrade, rest assured you can, knowing that this Barebone Kit is reliable, cost-effective and ready to take on whatever it's given.
Intel Core 3100U (14th Gen) CPU
DDR5 SO-DIMMMax. 64GB / Memory Type
Intel Iris XeIntegrated Graphics
M.2 SSDStorage Type
Resilient and Pioneering
The spirit of your business Your business should be empowered to stop at nothing while navigating your journey with the MSI Business & Productivity Series products. Ideal for Digial Signage & Public Service, Hostel & Restaurant, Medical & Science and Education.
Stable and Powerful
Supports Windows 11 Pro Equipped with up to Intel® Core™ 3 Processor 100U (14th Gen) with 6 cores and 8 threads, it provides faster and more reliable performance. It also features 4.7 GHz with Intel Turbo Boost Max Technology 3.0, which allows users to multitask a variety of applications with ease. Supports Windows 11 Pro and Dual Channel DDR5 memory which is upgradeable.
Get all the Performance Benefits
Wi-Fi 6E TechnologyWi-Fi 6E puts more emphasis on transmission security and improves the signal between the interference problem can also be connected to more devices at the same time, thereby meeting the trend of higher and higher data transmission bandwidth requirements with speed up to 2.4Gbps.
Superspeed TransfersWith data transfer speeds up to 10Gbps, dual USB 3.2 Gen 2 Type A ports in the front I/O offer twice the bandwidth of the older USB 3.1 Gen 1 Type A ports, effectively halving any data delay or waiting time.
Built for Sustainability
Environment-friendly materials The Cubi NUC Series blends business-centric design with environmental responsibility – an embodiment of MSI's dedication to sustainability. By utilizing green material, PCR (Post-Consumer Recycled) plastic, ensures not only the products' durability but also commits to a greener world. The commitment extends to incorporating sustainable materials in both MSI's product design and packaging, all of which hold certifications from EPEAT and ENERGY STAR®. The Cubi NUC Series embodies sustainable value and heightened productivity.
Maximize Space with the Versatile Cubi NUC
Mini yet powerful The Cubi NUC is the ideal solution for confined spaces. It confidently handles a myriad of tasks, from basic computing to multimedia streaming and multitasking, leveraging their compact size. Its perfect for spaces with limited room, featuring a 0.826-liter chassis. It can be mounted behind a monitor, on a wall, or in digital signage, freeing up desk space and creating a tidier workspace.
Bolt to the Next Power

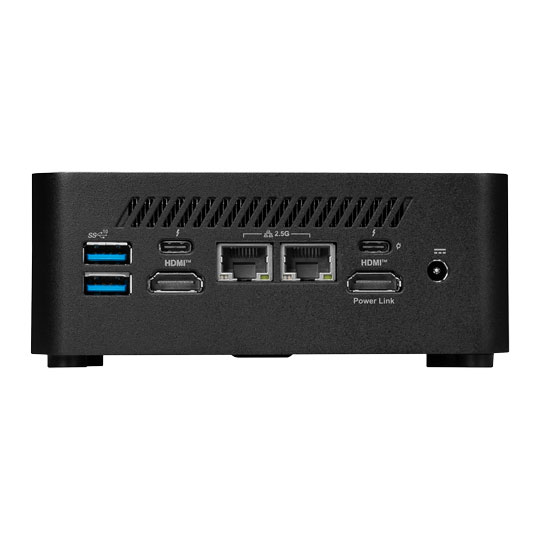

Always be your backup with dual LAN design Thunderbolt™ 4 brings Thunderbolt to USB-C at speeds up to 40 Gbps, creating one compact port that does it all – delivering the fastest, most versatile connection to any dock, display, or data device & NAS. Embracing a wide array of interface compatibilities so that you can edit, collaborate and share seamlessly. The Cubi NUC Series can be powered on using the power button on the MSI-selected monitor to bring the most convenient user experience.
Up to
40 gbpsData Transmission Speed
Up to
10 gbeLAN Speed
with Thunderbolt™
to 10GbE Switch
Supports
USB-CProtocols
Extend Your View
Quadruple display supportSupporting up to 4 displays with HDMI™-out and Thunderbolt 4 allows for increased productivity by providing more screen space to manage multiple applications simultaneously.
Fast, Secure and Wireless Backup
MSI Cloud Center Download between your PC and mobile devices. Transfer files, photos, videos, and more between your PC, Android, and iOS device faster and easier than a cabled connection. You can make these files accessible to your family or team members, or you can also make files as private as you want. The decision is in your hands.
Vesa Mountable Design
Flexible installationWith its VESA Mountable design, the Cubi NUC Series can be easily installed in any location, providing users with greater flexibility and efficient space management in both home and office settings.
Ease to Use and Makes Life Simple
Small but powerful Bring it home when you need without any inconvenience that it can be your mini PC and your portable storage device.
TPM Support(Trusted Platform Module) dTPM 2.0 technology provides hardware-based security functions. Sensitive data and passwords can be stored with encryption for advanced protection.
Easy MaintenanceUsers can easily upgrade two SO-DIMM, two M.2 SSDs (2280 & 2242), or one 2.5” HDD/SSD by disassembling the cover. This makes Cubi NUC an even more flexible desktop and also reduces the time wasted on upgrading.
External Power Switch DesignThe external power switch makes it much more convenient to turn on the computer. When the computer is located in a hard-to-reach area, the external power switch on the desk is a better option than bending down to turn it on.
Prioritize Your Work
Ultilize MSI Center
The MSI Center takes optimization to the next level with easily adjustable system modes; it helps to prioritize & allocate the resource on your hand to accelerate the performance of those software which you work with everyday.
* The interface and functionality may differ due to version change. Please download the latest MSI Center APP through Microsoft Store.
