Scan code: LN146567 Manufacturer code: B760M PROJECT ZERO

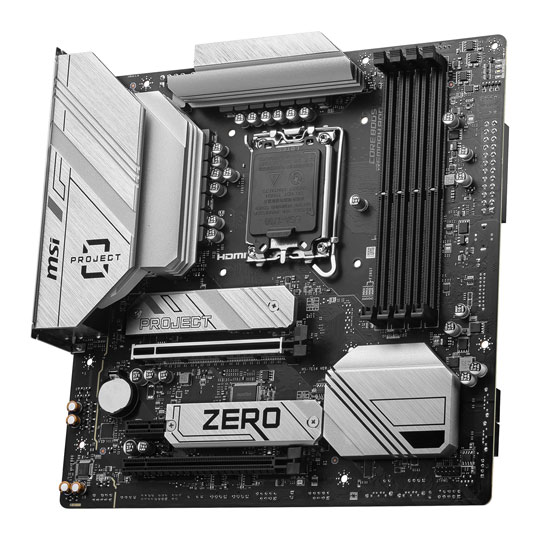

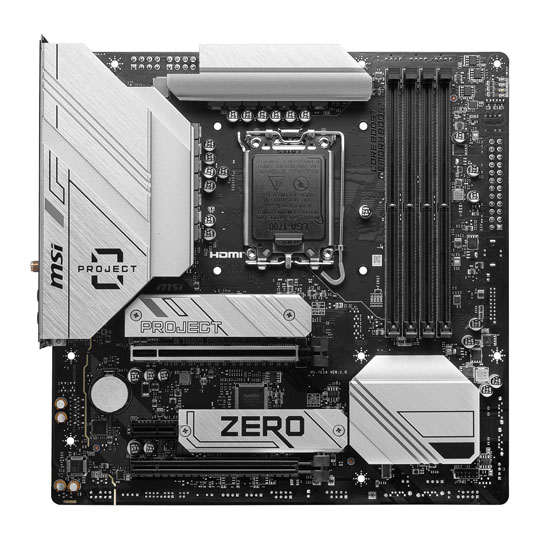

MSI Intel B760M PROJECT ZERO DDR5 Micro-ATX Motherboard

MSI B760M PROJECT ZERO, Intel B760, S 1700, DDR5, PCIe 5.0, 2x M.2, 2.5GbE, WiFi 6E, USB 3.2 Gen2x2, mATX

Thumbnail 1 : MSI Intel B760M PROJECT ZERO DDR5 Micro-ATX Motherboard Thumbnail 2 : MSI Intel B760M PROJECT ZERO DDR5 Micro-ATX Motherboard Thumbnail 3 : MSI Intel B760M PROJECT ZERO DDR5 Micro-ATX Motherboard Thumbnail 4 : MSI Intel B760M PROJECT ZERO DDR5 Micro-ATX Motherboard
Scan code: LN146567 Manufacturer code: B760M PROJECT ZERO
Order now and get it tomorrow, Mon 24th Jun
£209.99
Get it Tomorrow, 24 JunIn stock
From £10.26 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £19.03
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £209.99
Total inc. interest: £228.30
Monthly Payment: £10.26
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £209.99
Total inc. interest: £246.05
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th Jun to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

MSI B760M PROJECT ZERO LGA 1700 mATX Motherboard

MSI B760 Motherboard

Absolute Simplicity Meet the MSI B760M PROJECT ZERO mATX motherboard, Boasting a unique design feature, packed into a smaller form factor, the PROJECT ZERO features a unique back-connect design that reduces the complexity of cable management by having all of your connectors located on the back-side of the motherboard, resulting in an overall neater, more aesthetically pleasing system. Crafted to support the latest Intel processors the B760M PROJECT ZERO is packed with the latest features including support for DDR5 7800+(OC) memory, an enhanced power design, lightning-fast PCIe 5.0 technology, Gen4 storage, WiFi 6E and a premium thermal solution consisting of an extended heatsink and M.2 Shield Frozr technology, combined they offer optimised passive cooling and powerful performance, allowing you to continue to push your system to all new heights.


Note: Please be sure to check MSI's Compatibility list to ensure your case is compatible Here

Intel B760Chipset

LGA 1700CPU Socket

14th/13th/12th Gen Intel® Core™ ProcessorsCompatible CPU

mATXForm Factor

Outstanding Cooling Solution

Superb Cooling
Thermal Pads

7W/mK MOSFET Thermal Pads

M.2 Shield FROZR

M.2 Shield
Frozr

Extended heatsinks

Extended
Heatsink

High-Speed Transmission

Connectivity options
10G

2.5G LAN

Wifi 6e

WIFI
6E

Gen 5 slots

PCIE 5.0
Slots

Memory Boost

Memory
Boost

A Stable Cornerstone for Your System

DIY protection
6 Layer PCB

6-Layer
PCB

Back connect Design

back-connect
Design

Pump fan support

Pump Fan
Support

Massive Cooling Potential

1. Extended HeatsinksExtended heatsinks increase the surface area of heat dissipation, ensuring even high-end processors can run at full speed.

2. M.2 Shield FrozrKeeps M.2 SSDs safe while preventing throttling, making them run faster.

Massive Cooling heatsinks

3. Heavy Plated VRM HeatsinkThe VRM heatsink covers the upper MOS and helps with overall heat dissipation.

4. 7W/mK Thermal PadHigh quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensures all cores run at their maximum performance.

Aggressive VRM Design

Robust power design

12 PhaseCORE POWER DRMOS/75A

1 PhaseGT Power

1 PhaseAUX Power

12+1+1 DUET RAIL POWER SYSTEMUnleash and sustain maximum performance with an aggressive VRM design built with a digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, B760M PROJECT ZERO is ready to sustain heavy loads.

Back-Connect Design

Back connect design

A Unique AdditionThe B760M PROJECT ZERO features a back-connect design, which relocates the motherboard power, CPU power, fan pins, SATA, and other interfaces to the back of the motherboard. This allows for simpler cable management, while also providing a cleaner and more aesthetically pleasing appearance.

Meet The Latest Generation

PCIE 5 slots

LIGHTNING GEN 5 PCI-ESay hello to double the speeds of the previous generation, PCIe 5.0 brings an x16 interface capable of reaching speeds of up to 128 GB/s.

SMT PCIe 5.0 SlotThe advanced surface mount technology (SMT) PCIe slot reduces interference and electrical noise to fully support the PCIe 5.0 signal.

Maximise Your Storage Capabilities

Storage capabilities

Fast and future ready storageMSI PROJECT ZERO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

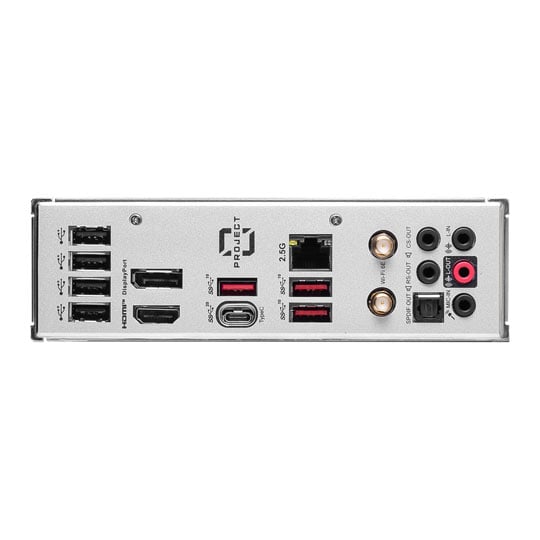

Fully Comprehensive I/O Panel

i/O Panel

Rear: 1: USB 2.0
2: DisplayPort 1.4
3: USB 10Gbps Type-A
4: 2.5G LAN
5: Wi-Fi / Bluetooth Antenna
6: HD Audio Connectors
7: HDMI™ 2.1 Port
8: USB 20Gbps Type-C
9: Optical S/PDIF OUT

Specifications
Core Specifications
Edition B760M PROJECT ZERO
Form Factor MicroATX
CPU Socket 1700
Chipset Intel B760
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz)
  • DDR4 - 5333(0C)
  • DDR5 - 4800
  • DDR5 - 5000
  • DDR5 - 5200
  • DDR5 - 5400
  • DDR5 - 5600
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600(OC)
  • DDR5 - 6800(OC)
  • DDR5 - 7000(OC)
  • DDR5 - 7400(OC)
  • DDR5 - 7600(OC)
  • DDR5 - 7800+(OC)
Max. Memory Capacity 256GB
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 2 x 24-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 4 x 4-pin System Fan Connector
  • 2 x 8-pin (Power)
  • 2 x Addressable Gen 2 Header
  • 1 x Chassis Intrusion connector
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 2 x RGB LED connector
  • 1 x TBT connector
  • 1 x TPM 2.0 Header
  • 4 x USB 2.0 Port
  • 2 x USB 3.2 Gen 1
  • 1 x USB 3.2 Gen2 Type-C Port
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 2.5 Gigabit LAN
  • 1 x 802.11ax WiFi 6E + BT5.3
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x Central Speaker Out
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 2.0
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi 802.11ax 6E / Bluetooth 5.3
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 243.84mm x 243.84mm mm
