MSI Intel B760M GAMING PLUS WIFI DDR5 ATX Motherboard

MSI B760M GAMING PLUS WIFI, Intel B760, S 1700, DDR5, SATA3, PCIe 4.0, 2x M.2, 2.5GbE, USB 3.2 Gen2, ATX
MORE INFO
MORE INFO

Scan code: LN142642 Manufacturer code: B760M GAMING PLUS WIFI
£139.99
£5.48 NEXT DAY DELIVERY
Order now and receive it by Monday, 27th January
Add To Basket
Get it Monday, 27 JanIn stock

Email me when the availability or price changes

  • By DPD On 27th Jan Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £11.67 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £11.67
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £139.99
    Total inc. interest: £139.99
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info

Frequently Bought Together

MSI steam promotion

MSI B760M GAMING PLUS WIFI LGA 1700 mATX Motherboard

MSI B760 Motherboard

Unite As OneB760M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all. Boasting support for DDR5 memory, an enhanced 12+1+1 duet rail power system, lightning-fast PCIe 4.0 technology, Gen4 M.2 storage and a premium thermal solution consisting of extended heatsink designs, M.2 Shield Frozr and high-end thermal pads. Combined these features allow you to push the boundaries of modern performance. Build something beautiful with MSI.

Intel B760Chipset

LGA 1700CPU Socket

14th/13th Gen Intel® Core™ ProcessorCompatible CPU

mATXForm Factor

Outstanding Cooling Solution

Superb Cooling
Thermal Pads

7W/mK Thermal Pads

M.2 Shield FROZR

M.2M
Shield Frozr

Pump fan support

Pump Fan
Support

Extended heatsinks

Extended
Heatsink

High-Speed Transmission

Connectivity options
10G

2.5G
LAN

Wifi 6e

WIFI
6E

Gen 5 slots

Lighting
Gen 4

Memory Boost

Memory
Boost

DDR5

DDR5
Support

HDMI

HDMI
2.1

A Stable Cornerstone for Your System

DIY protection
Steel PCIe slots

Steel PCIe
armor

Digital PWM

Digital
PWM

CORE BOOST

CORE
BOOST

Massive Cooling Potential

1. Extended HeatsinkExtended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

2. M.2 Shield FrozrStrengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.

Massive Cooling heatsinks

3. Heavy Plated VRM HeatsinkThe VRM heatsink covers the upper MOS and helps dissipate the heat.

4. 7W/mK Thermal PadHigh-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.

Aggressive Power Design

Robust power design

12+1+1 DUET RAIL POWER SYSTEMUnleash and sustain the maximum performance with a VRM design built with a total of 12+1+1 power design. Combining dual power connectors and exclusive Core Boost technology, B760M GAMING PLUS WIFI is ready to sustain heavy daily work.

Meet The Latest Generation

PCIE 4 slots

LIGHTNING GEN 4 PCI-EDoubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.

REINFORCED, HEAVY SOLDERED CONNECTIONSSecure to the motherboard with extra solder points and support the weight of heavy graphics cards.

Maximise Your Storage Capabilities

Storage capabilities

Fast and future ready storageB760 GAMING PLUS WIFI motherboard supports all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

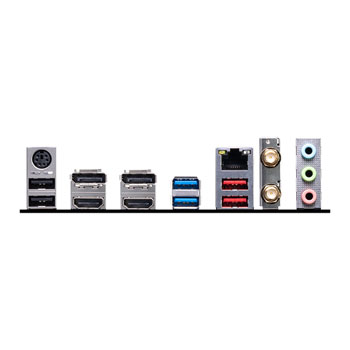

Fully Comprehensive I/O Panel

I/O Panel

Rear: 1: Keyboard / Mouse
2: DisplayPort
3: USB 3.2 Gen 1 5Gbps (Type-A)
4: 2.5G LAN
5: Wi-Fi / Bluetooth
6: USB 2.0
7: HDMI™
8: USB 3.2 Gen 2 10Gbps (Type-A)
9: Audio Connectors

Specifications
Core Specifications
Edition B760 GAMING PLUS WIFI
Form Factor MicroATX
CPU Socket 1700
Chipset Intel B760
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000
  • DDR5 - 5200
  • DDR5 - 5400
  • DDR5 - 5600
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600(OC)
  • DDR5 - 6800(OC)
Max. Memory Capacity 192GB
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0 (SATA only)
  • RAID 1 (SATA only)
  • RAID 10 (SATA only)
  • RAID 5 (SATA only)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 2 x 8-pin (Power)
  • 2 x Addressable Gen 2 Header
  • 1 x Chassis Intrusion connector
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 1 x RGB LED connector
  • 1 x Serial (COM) Header
  • 2 x System Fan header
  • 1 x TPM 2.0 Header
  • 4 x USB 2.0 Header
  • 5 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi 6E + BT5.2
  • 1 x Realtek RTL8125 (2.5G LAN)
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 2 x DisplayPort 1.4
  • 2 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x S/PDIF-Out
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x WiFi 802.11ax 6E / Bluetooth 5.3
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 243.84mmx243.84mm mm
Note
Additional Information
Scan Code LN142642
Model Number B760M GAMING PLUS WIFI
GTIN 4711377154017
