MSI Intel B760 GAMING PLUS WIFI DDR5 ATX Motherboard

MSI B760 GAMING PLUS WIFI, Intel B760, S 1700, DDR5, SATA3, PCIe 4.0, 2x M.2, 2.5GbE, USB 3.2 Gen2, ATX

Thumbnail 1 : MSI Intel B760 GAMING PLUS WIFI DDR5 ATX Motherboard Thumbnail 2 : MSI Intel B760 GAMING PLUS WIFI DDR5 ATX Motherboard Thumbnail 3 : MSI Intel B760 GAMING PLUS WIFI DDR5 ATX Motherboard Thumbnail 4 : MSI Intel B760 GAMING PLUS WIFI DDR5 ATX Motherboard
Scan code: LN136152 Manufacturer code: B760 GAMING PLUS WIFI
There are 5 people viewing this product
Order now and get it tomorrow, Mon 24th Jun
£149.99
Get it Tomorrow, 24 JunIn stock
FREE DELIVERY ON THIS ITEM
From £13.59 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £13.59
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £149.99
Total inc. interest: £163.06
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th Jun to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
MSI steam promotion

MSI B760 GAMING PLUS WIFI LGA1700 ATX Motherboard

MSI B760 Motherboard

Unite As One The B760 GAMING PLUS WIFI is designed and constructed to draw the full potential from the latest 13th Generation CPUs, by combining durability, value and stunning aesthetics with a military-inspired twist. Boasting support for DDR5 memory, an enhanced 12+1+1 duet rail power system, lightning-fast PCIe 4.0 technology, Gen4 M.2 storage and a premium thermal solution consisting of extended heatsink designs, M.2 Shield Frozr and high-end thermal pads. Combined these features allow you to push the boundaries of modern performance. Build something beautiful with MSI.

Intel B760Chipset

LGA 1700CPU Socket

12th/13th Gen Intel® Core™ ProcessorsCompatible CPU

ATXForm Factor

Outstanding Cooling Solution

Superb Cooling
Thermal Pads

7W/mK MOSFET Thermal Pads

M.2 Shield FROZR

M.2M
Shield Frozr

Pump fan support

Pump Fan
Support

Extended heatsinks

Extended
Heatsink

High-Speed Transmission

Connectivity options
10G

2.5G
LAN

Wifi 6e

WIFI
6E

Gen 5 slots

Lighting
Gen 4

Memory Boost

Memory
Boost

DDR5

DDR5
Support

Type-C

Reversible
Type-C

A Stable Cornerstone for Your System

DIY protection
Steel PCIe slots

Steel PCIe
armor

Digital PWM

Digital
PWM

PCB

2oz
Coppper PCB

Dual Power Connectors

Dual Power
Connectors

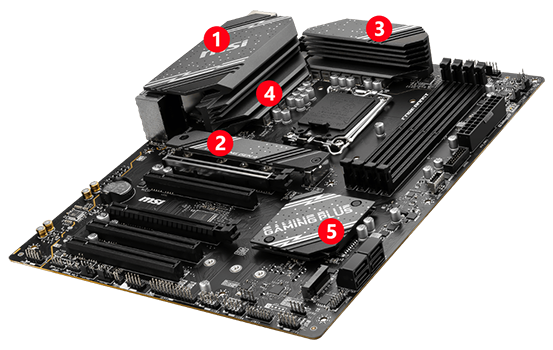

Massive Cooling Potential

1. Extended HeatsinksExtended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

2. M.2 Shield FrozrStrengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.

Massive Cooling heatsinks

3. Heavy Plated VRM HeatsinkThe VRM heatsink covers the upper MOS and helps dissipate the heat.

4. 7W/mK Thermal PadHigh-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.

5. Chipset HeatsinkThe chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

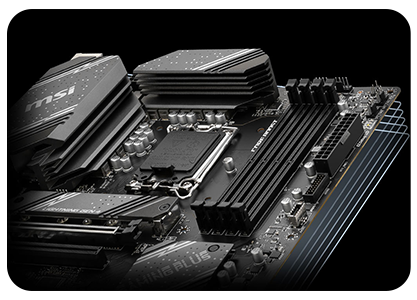

Aggressive Power Design

Robust power design

12+1+1 DUET RAIL POWER SYSTEMUnleash and sustain the maximum performance with a VRM design built with a total of 12+1+1 power design. Combining dual power connectors and exclusive Core Boost technology, B760 GAMING PLUS WIFI is ready to sustain heavy daily work.

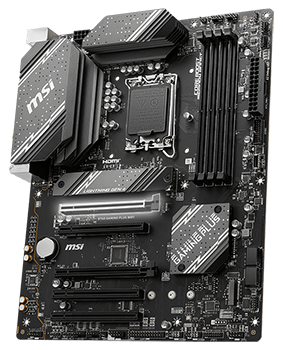

Meet The Latest Generation

PCIE 4 slots

LIGHTNING GEN 4 PCI-EDoubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.

REINFORCED, HEAVY SOLDERED CONNECTIONSSecure to the motherboard with extra solder points and support the weight of heavy graphics cards.

Maximise Your Storage Capabilities

Storage capabilities

Fast and future ready storageB760 GAMING PLUS WIFI motherboard supports all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

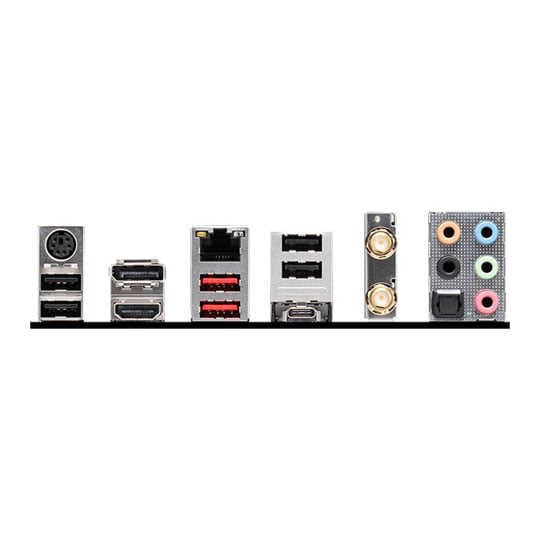

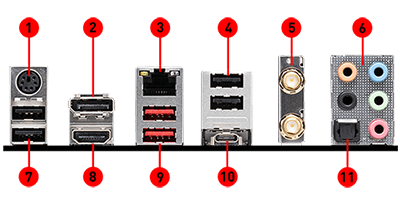

Fully Comprehensive I/O Panel

I/O Panel

Rear: 1: Keyboard / Mouse
2: DisplayPort
3: 2.5G LAN
4: USB 2.0
5: Wi-Fi / Bluetooth
6: Audio Connectors
7: USB 2.0
8: HDMI™
9: USB 3.2 Gen 2 10Gbps (Type-A)
10: USB 3.2 Gen 2 10Gbps (Type-C)
11: S/PDIF-OUT

Specifications
Core Specifications
Edition B760 GAMING PLUS WIFI
Form Factor ATX
CPU Socket 1700
Chipset Intel B760
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000
  • DDR5 - 5200
  • DDR5 - 5400
  • DDR5 - 5600
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600(OC)
  • DDR5 - 6800(OC)
Max. Memory Capacity 192GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 3 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x4
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0 (SATA only)
  • RAID 1 (SATA only)
  • RAID 10 (SATA only)
  • RAID 5 (SATA only)
Internal I/O
  • 1 x 4-pin CPU Fan Connector
  • 2 x Addressable Gen 2 Header
  • 1 x Chassis Intrusion connector
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 1 x RGB LED connector
  • 1 x Serial (COM) Header
  • 5 x System Fan header
  • 1 x TBT connector
  • 1 x TPM 2.0 Header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x WiFi / Bluetooth Module
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 243.84 x 304.8 mm
Note
Additional Information
Scan Code LN136152
Model Number B760 GAMING PLUS WIFI
GTIN 4711377086561
