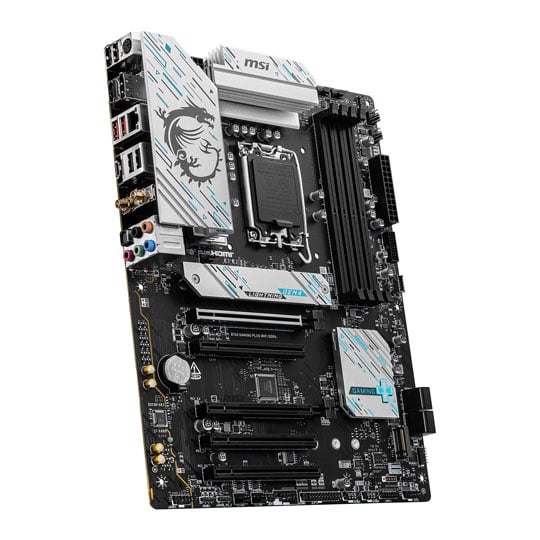

MSI Intel B760 GAMING PLUS WIFI DDR4 ATX Motherboard
MSI Intel B760 GAMING PLUS WIFI DDR4 ATX Motherboard
Scan code: LN151063 Manufacturer code: B760 GAMING PLUS WIFI DDR4
£129.98
Get it Tomorrow, 15 NovIn stock
  • Thumbnail 1 : MSI Intel B760 GAMING PLUS WIFI DDR4 ATX Motherboard
  • Thumbnail 2 : MSI Intel B760 GAMING PLUS WIFI DDR4 ATX Motherboard
  • Thumbnail 3 : MSI Intel B760 GAMING PLUS WIFI DDR4 ATX Motherboard
  • Thumbnail 4 : MSI Intel B760 GAMING PLUS WIFI DDR4 ATX Motherboard

MSI Intel B760 GAMING PLUS WIFI DDR4 ATX Motherboard

MSI B760 GAMING PLUS WIFI DDR4, Intel B760, S 1700, DDR4, SATA3, PCIe 4.0, 2x M.2, 2.5GbE, USB 3.2 Gen2, ATX

Scan code: LN151063 Manufacturer code: B760 GAMING PLUS WIFI DDR4
£129.98
Order in the next 2 hrs 3 mins and get it tomorrow
Get it Tomorrow, 15 NovIn stock
  • By DPD On 15th Nov Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.79 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £10.84 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £10.84
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £129.98
    Total inc. interest: £129.98
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info

MSI B760 GAMING PLUS WIFI DDR4 LGA 1700 ATX MOTHERBOARD

MSI B760 GAMING PLUS WIFI LGA1700 DDR4 ATX

A Ferocious FoundationThe B760 GAMING PLUS WIFI DDR4 unlocks the full capabilities of Intel's 12th - 14th Gen CPU Lines, merging durability, affordability, and eye-catching aesthetics with a military-inspired flair. It features support for DDR4 memory, an advanced 12+1+1 duet rail power system, ultra-fast PCIe 4.0 technology, Gen4 M.2 storage, and a top-tier thermal solution that includes extended heatsink designs, M.2 Shield Frozr, and premium thermal pads. Together, these elements empower you to elevate your performance to new heights. It's the ultimate baseline for a beast of a setup.

Intel B760CPU Chipset

LGA 1700Intel Socket

12 - 14th Intel® Core™ SeriesCompatible Processors

ATXBoard Form Factor

High-Speed & Adaptable

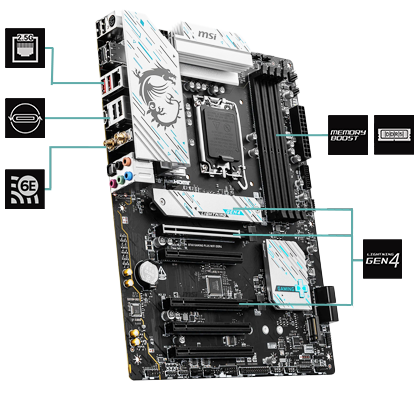

Connectivity options
10G

2.5G
LAN

Wifi 6e

WIFI
6E

Gen 5 slots

Lighting
Gen 4

Memory Boost

Memory
Boost

DDR5

DDR4
Support

Type-C

Reversible
Type-C

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

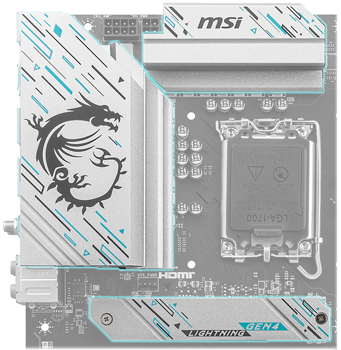

Limitless Cooling Potential

Adaptable Thermal Padding

Stylish Thermal PaddingThe M.2 Shield Frozr safeguards your SSDs, preventing throttling for sustained speed. A Heavy Plated VRM Heatsink efficiently cools the upper MOS, while 7W/mK Thermal Pads & Additional Choke Pads ensure maximum performance across all cores.

Hardware Monitoring

Hardware MonitoringWith Total Fan Control, you can easily monitor and manage fan settings through the BIOS. Set up to four custom temperature targets for your system to automatically adjust to.

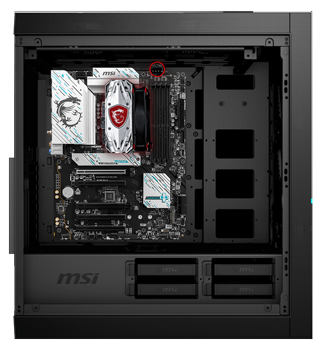

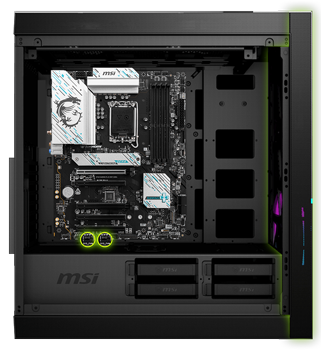

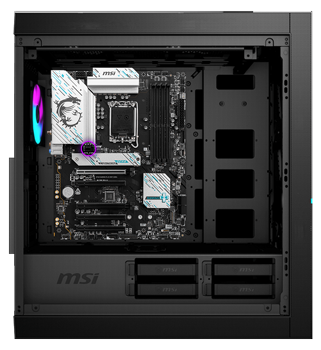

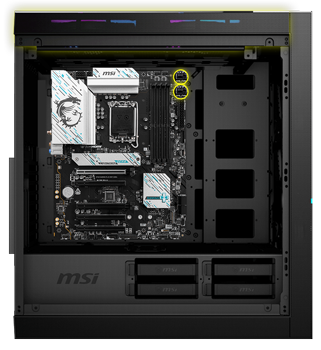

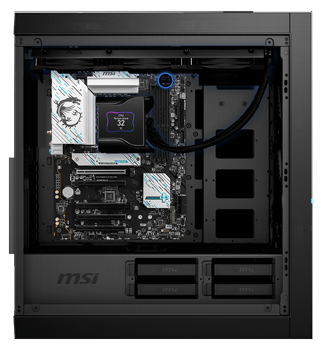

Plan Your FansThe B760 GAMING PLUS WIFI DDR4 supports a plethora of advanced cooling solutions, perfect for top-spec gaming rigs. Whether you choose your CPU to be Air Cooled, or AIO Liquid Cooled, rest assured knowing this board provides plenty of options to keep your components ice cold and cared for. Certified to work with products from Corsair®, Thermaltake®, Cooler Master®, Ekwb® & Bitspower®.

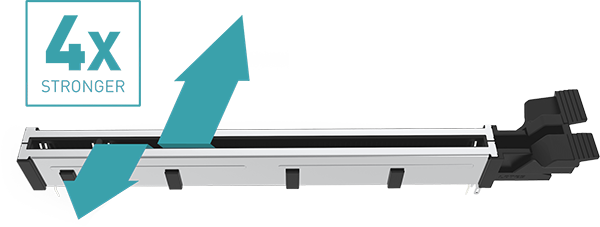

Your GPU, Secured In Steel

PCIE STEEL ARMOURMSI PCI Express Steel Armour slots are secured to the motherboard with extra solder points and support the weight of ultra heavy graphics cards. When every advantage in games counts, Steel Armour shields the point of contact from interference.

PCI-E Steel Armor

Sound-Quality Audio

DJI Air 3 Drone

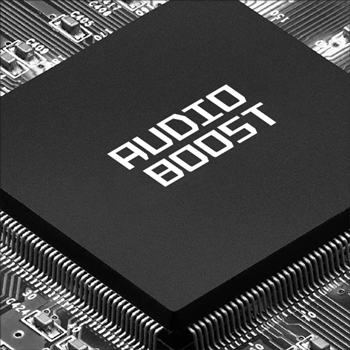

Pristine Processing

DJI Air 3 Drone

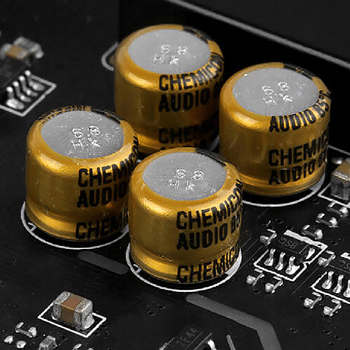

Robust Capacitors

DJI Air 3 Drone

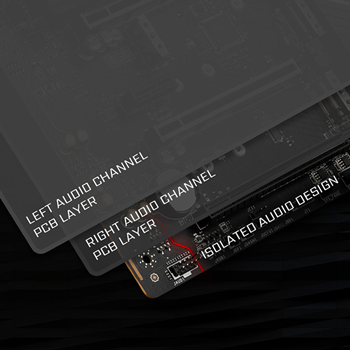

Separated Channels

DJI Air 3 Drone

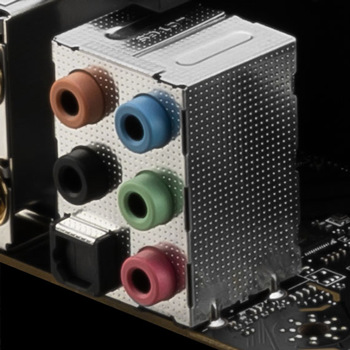

High-Quality 3mm Jacks

DJI Air 3 Drone

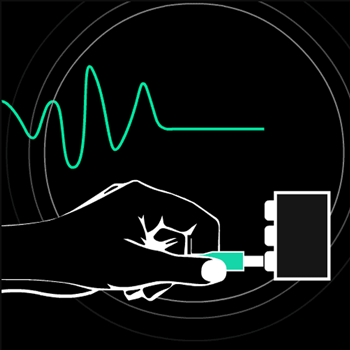

De-Pop Protection

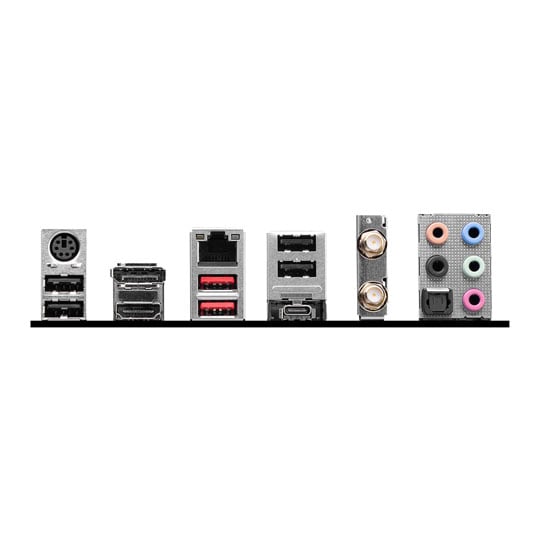

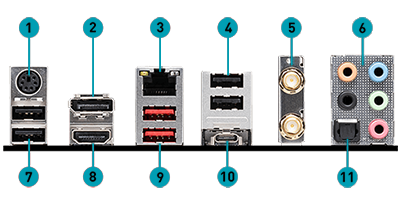

Comprehensive I/O Panel

I/O Panel

Rear: 1: Keyboard / Mouse
2: DisplayPort
3: 2.5G LAN
4: USB 2.0
5: Wi-Fi / Bluetooth
6: Audio Connectors
7: USB 2.0
8: HDMI™
9: USB 3.2 Gen 2 10Gbps (Type-A)
10: USB 3.2 Gen 2 10Gbps (Type-C)
11: S/PDIF-OUT

Specifications
Core Specifications
Edition B760 GAMING PLUS WIFI DDR4
Form Factor ATX
CPU Socket 1700
Chipset Intel B760
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4200(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 5000(OC)
  • DDR4 - 5066(OC)
  • DDR4 - 5200(OC)
  • DDR4 - 5333(0C)
Max. Memory Capacity 128GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 3 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x4
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0 (SATA only)
  • RAID 1 (SATA only)
  • RAID 10 (SATA only)
  • RAID 5 (SATA only)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Gen 2 Header
  • 1 x Chassis Intrusion connector
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 1 x RGB LED connector
  • 1 x Serial (COM) Header
  • 5 x System Fan header
  • 1 x TPM 2.0 Header
  • 4 x USB 2.0 Port
  • 3 x USB 3.2 Gen1
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi 6E + BT5.3
  • 1 x Realtek RTL8125BG
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x S/PDIF-Out
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x WiFi / Bluetooth Module
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 243.84 x 304.8 mm
Note
Additional Information
Scan Code LN151063
Model Number B760 GAMING PLUS WIFI DDR4
GTIN 4711377247900
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
MSI
Loading Please Wait

Please wait . . .

Buying Guide
Need help choosing the right board? Read our Intel Motherboard Buying Guide
