MSI 4U Liquid cooled G4101-01 4U AMD 9004 Server Barebone Chassis
MSI 4U Liquid cooled G4101-01 4U AMD 9004 Server Barebone Chassis
Scan code: LN156111 Manufacturer code: G4101-01
£5,159.99Stock arrives 2-3 weeks from time of order
Pre Order
ETA 2-3 weeks
  • Thumbnail 1 : MSI 4U Liquid cooled G4101-01 4U AMD 9004 Server Barebone Chassis
  • Thumbnail 2 : MSI 4U Liquid cooled G4101-01 4U AMD 9004 Server Barebone Chassis

MSI 4U Liquid cooled G4101-01 4U AMD 9004 Server Barebone Chassis

MSI 4UG4101-01 4U Barebone Chassis, AMD EPYC™ 9005/9004, Liquid Cooled, 12x DDR5 DIMM Slots, 12x 2.5" U.2 Bays
MORE INFO
MORE INFO

Scan code: LN156111 Manufacturer code: G4101-01
£5,159.99
Stock arrives 2-3 weeks from time of order
Pre Order
ETA 2-3 weeks

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free

Finance this product

  • From £145.49 / month (APR 16.9%) for 48 months or 0% for 4 months
  • With a 10% deposit from just £128.88 / month (APR 15.9%)
Product Overview

MSI G4101-01 4U AMD 9004 Barebone Server

The MSI G4101-01 is a powerful 4U rackmount server barebone designed for high-performance computing, featuring support for AMD EPYC 9004 series processors. This server is built to accommodate demanding workloads such as AI training, video production, 3D rendering, and visualisation.

Features

• 4U
• Single Socket SP5, supports AMD EPYC™ 9005/9004 series processors
• (12) DDR5 DIMM Slots, 1DPC, up to 6000MT/s, RDIMM/RIMM-3DS
• (4) PCIe 5.0 x16 slots
• (2) PCIe 4.0 x16 slots (x8 signal)
• (12) Hot-swap 2.5” U.2 PCIe 4.0 NVMe drive bays
• (1) 1000Base-T Dedicated Server Management Port
• (1) ASPEED AST2600 with IPMI & DMTF Redfish Support, Dual BMC Flash
• Closed Loop Liquid cooling module for CPU

Specifications
Edition G4101-01 Barebone
Form Factor 4U
CPU Included No
CPU Type AMD EPYC™ 9005 Series
CPU Model
Architecture Zen 5
Manufacturing Process
Unlocked CPU No
Core
No. of Threads N/A
Clock Speed N/A
Burst Frequency N/A
CPU Cache
CPU Cooler All-in-One Water Cooler
TDP
CPU Socket SP5
Chipset N/A
Motherboard Form Factor
Motherboard Model
Memory Type DDR5
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels Dodeca (12)
Memory Type (ECC) ECC
Memory Type (R/U) RDIMM (Registered)
Memory Speed (Mhz) DDR5 - 6000(OC)
Max. Memory Capacity RAM Memory Not Included - Please Buy Separately
On-board/Integrated Graphics No
Processor/Motherboard Graphics Chip N/A
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface N/A
Expansion Slots
  • 1 x M.2, 22-80/110, PCIe Gen3
  • 1 x M.2, 22-80/110, PCIe Gen3x2
  • 2 x PCIe 4.0 x16 (x8 Bandwidth)
  • 4 x PCIe 5.0 x16
SATA N/A
HDD Storage Included No
HDD Storage Type
HDD Storage Capacity N/A
SSD Storage Included No
SSD Storage Type
SSD Storage Capacity
Optical Drive None
Drive Bays 12 x Hot-swap 2.5" U.2 PCIe 4.0 NVMe
Backplane I/O
RAID Support
Internal I/O N/A
Network Interface Type
Network Chip/Modules

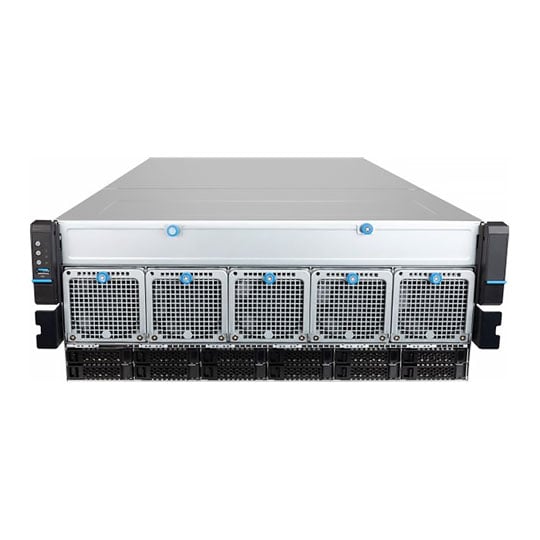

Front Panel
  • 5 x Easy-Swap chassis Fans
  • 12 x Hot-swap 2.5" drive bays
  • 1 x Power Button with LED
  • 4 x Status LED
  • 1 x System Reset button
  • 1 x Universal Information (UID) LED
  • 1 x USB 3.2 Gen1 Type-A

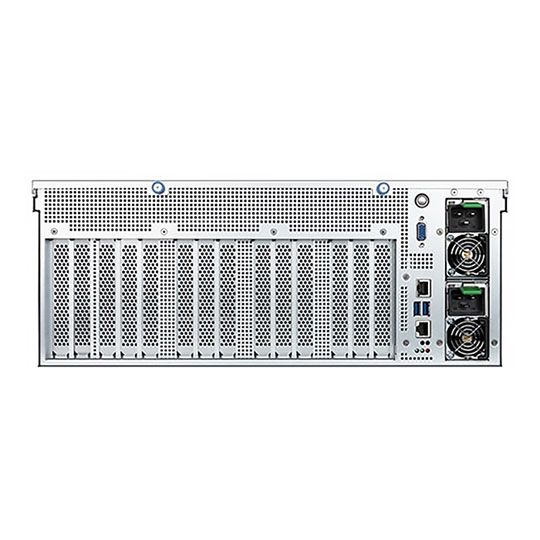

Back Panel
  • 1 x COM RJ45 Port
  • 1 x D-Sub (VGA)
  • 1 x RJ-45 Mgmt LAN
  • 3 x System Status LED
  • 1 x UID LED Button
  • 2 x USB 3.2 Gen1 Type-A
Cooling Fans 5 x 80mm
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable N/A
PSU Wattage 3000 W
PSU Efficiency Rating 80 PLUS Platinum
PSU Redundancy 1+1
Operating System Included No
Operating System N/A
Colour
Dimensions 438 x 176 x 831 (mm WxHxD)
Weight
Includes
  • 1 x Barebone Server
  • 2 x C19 Power cords for EU(250V/16A)
  • 2 x C19 Power cords for US(125V/10A)
  • 4 x Chassis Handles
  • 1 x CPU Liquid cooling module
  • 4 x PCIe card fixed brackets
  • 4 x PCIe CEM5(12VHPWR) 16-pin power cables (Inside)
  • 2 x Power supplies(inside system)
  • 1 x Quick Start Guide
  • 1 x Slide rail Kit
Notes
Additional Information
Scan Code LN156111
Model Number G4101-01
GTIN 4711377207270
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
24 months
