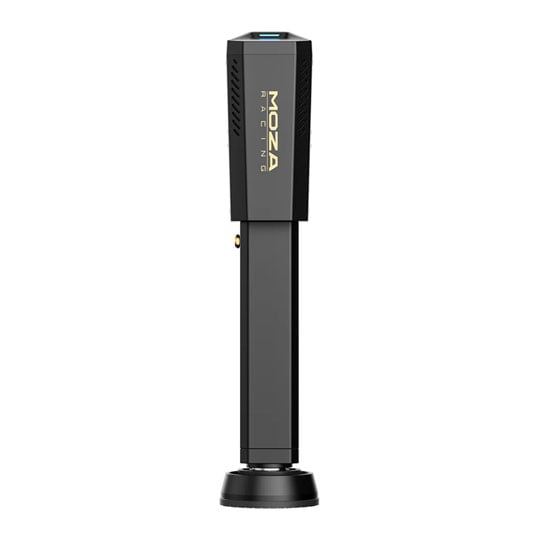

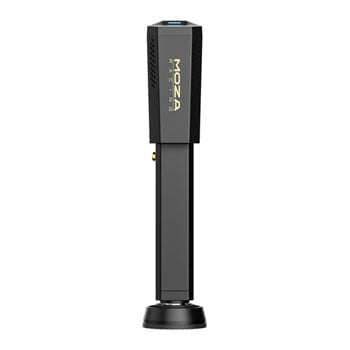

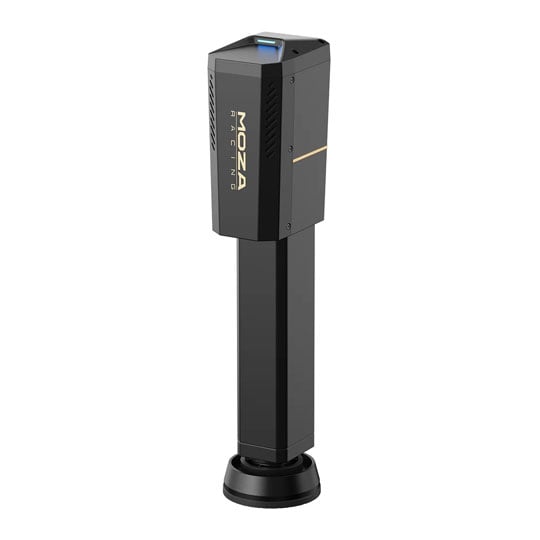

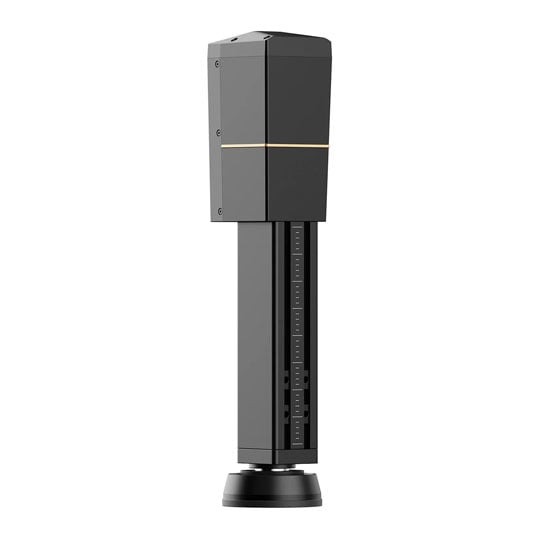

MOZA HMA150 4-Axis 3DOF Haptic Motion System

MOZA's First Flagship Motion System

MOZA's first flagship motion system marks a major milestone in the evolution of the MOZA simulation ecosystem. With in-house development across racing simulators, flight simulators, and motion systems, MOZA now offers a complete simulation ecosystem covering every aspect of immersive simulation.

High-Torque-Density Servo Motor

Near-zero cogging torque delivers millisecond-level response with smooth, detailed motion feedback.

Proprietary Motion Control Algorithms

Precisely reproduces realistic vehicle dynamics, delivering immersive motion feedback in every moment.

Proprietary Motion Manager Software

Customizable motion settings with official presets for a seamless plug-and-play experience.

In-House Linear Actuator System

Developed entirely in-house, the system integrates a high-performance servo motor and precision ball screw actuator to deliver accurate motion control and rapid response.

Sleek Design. Intelligent Lighting

The MOZA HMA150 features a sleek, streamlined design that blends refined aesthetics with a dynamic, modern look, Its customizable 16.7 million-colour RGB lighting provides real-time telemetry feedback for ABS, TC, flag signals, and other in-game events.

48V Low-Voltage DC Power

Powered by a high-performance 48V servo motor, the HMA150 is designed for safe and reliable home use. Low-voltage operation delivers enhanced safety, quiet performance, and efficient operation.

Integrated Emergency Stop

An integrated emergency stop switch enables instant motion shutdown when needed. Power-loss protection automatically lowers the platform smoothly in the event of a sudden power interruption.

Integrated Design. Flexible Mounting

Integrated control electronics save space and simplify installation. Built-in mounting rails allow adjustable height positioning for versatile setups.

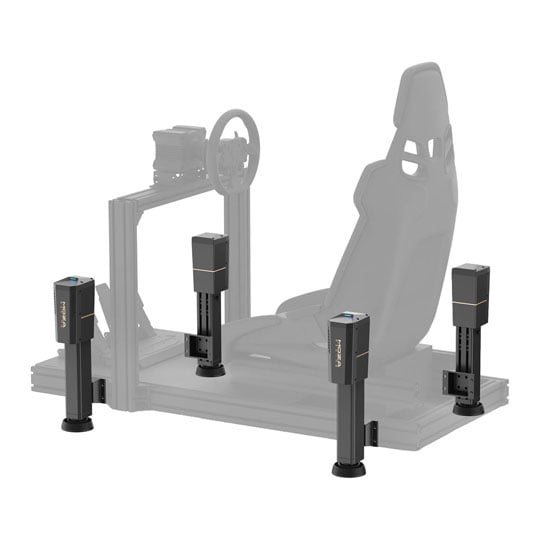

4-Axis 3DOF Motion System

Powered by four actuators, the HMA150 delivers realistic Pitch, Roll, and Heave motion to recreate authentic vehicle dynamics.

Ultra-Low Latency

Millisecond-level actuator response delivers rapid feedback and precise synchronization with in-game visuals.

Exceptional Dynamic Performance. Precise Motion Reproduction

With high-speed response and accurate motion control, the HMA150 faithfully recreates everything from major vehicle movements to subtle driving details. Experience realistic feedback from rally jumps, landing impacts, rough terrain, and aggressive curb strikes.

0–200 Hz Wide-Band Vibration

Supporting vibration frequencies up to 200 Hz, the HMA150 delivers powerful engine feedback while accurately reproducing subtle details such as road seams and surface textures.

Quiet Operation. Immersive Simulation

Featuring a high-performance servo motor and precision ball screw actuator, the MOZA HMA150 delivers smooth and quiet operation. Even under maximum speed and acceleration conditions, noise remains below 55 dB for a more immersive simulation experience.

21-Bit Magnetic Encoder 600 MHz Control Processor

The 21-bit magnetic encoder provides 2,097,152 points of resolution for ultra-precise motion sensing and detailed feedback. Powered by a 600 MHz high-performance control processor and advanced algorithms, the system processes motion data in real time for rapid response and accurate control. Together, they deliver precise motion control and real-time feedback with near-zero latency.

High-Strength Aluminium Alloy Housing

Constructed from high-strength aluminium alloy, the housing combines lightweight design with exceptional rigidity. Its robust structure provides stable support and long-lasting durability for reliable motion performance.

Rigorously Tested. Built to Last

The HMA150 has undergone over 5 million full-stroke cycles to ensure long-term reliability. After 24-hour high and low temperature testing, it maintains stable and consistent performance.

MOZA Motion Manager Software

MOZA Motion Manager is a proprietary motion control solution developed for the HMA150 motion system. It provides extensive customization options, allowing users to fine-tune motion range, intensity, degrees of freedom effects, vibration feedback, and more to create a personalized simulation experience.

Extensive Game Compatibility

Compatible with a wide range of racing simulation titles, including Assetto Corsa, DiRT Rally, iRacing, Forza Horizon, F1, and many more.

Open Ecosystem

Compatible with custom DIY builds and pre-built cockpits featuring European-standard 40 × 80 mm or larger aluminium profiles.

• Heave: ± 75 mm
• Pitch: ± 7.59°
• Roll: ± 12.04°
• Actuation mechanism: Electric motor + ball screw actuator
• Housing material: Aluminium alloy / plastic
• Peak actuator thrust (per actuator): 180 kg
• Maximum actuator stroke: 150 mm
• Maximum actuator speed: 300 mm/s
• Maximum actuator acceleration: 1G
• Actuator dimensions (per actuator): 475 × 110 × 85 mm
• Actuator weight (per actuator): 6.8 kg
• Maximum payload (4-actuator system): 350 kg
• Rated power consumption (4-axis system): 1500 W
• Control box ports: Power input, emergency stop, actuator connectors
• Mounting method: Bolt-on mounting
• Emergency stop: Included
