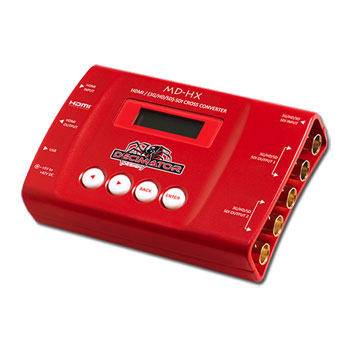

Decimator Design MD-HX Cross Converter

MD-HX: HDMI/SDI Cross Converter w/ Scaling & Frame Rate Conversion

Decimator Design
Scan code: LN63396 Manufacturer code: DD-HX Request call
£300.49
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Free Delivery Delivery options Free By DPD On 6th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Product Overview HDMI / SDI Cross Converter with Scaling and Frame Rate Conversion Features • Combines several converters for the price of one (e.g. SDI to HDMI, HDMI to SDI, Down Up Cross Converter, etc.)

• Robust Aluminium Case with easy to use LCD and button control system.

• Features the following 14 modes:
1. SDI IN to HDMI and SDI OUT
2. SDI IN to SDI OUT and HDMI IN to HDMI OUT
3. SDI IN to SDI OUT and Scaled SDI IN to HDMI OUT
4. SDI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
5. HDMI IN to SDI OUT and SDI IN to HDMI OUT
6. HDMI IN to HDMI and SDI OUT
7. HDMI IN to SDI OUT and Scaled SDI IN to HDMI OUT
8. HDMI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
9. Scaled SDI IN to SDI OUT and SDI IN to HDMI OUT
10. Scaled SDI IN to SDI OUT and HDMI IN to HDMI OUT
11. Scaled SDI IN to HDMI and SDI OUT
12. Scaled HDMI IN to SDI OUT and SDI IN to HDMI OUT
13. Scaled HDMI IN to SDI OUT and HDMI IN to HDMI OUT
14. Scaled HDMI IN to HDMI and SDI OUT

• 4 x (3G/HD/SD)-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier. Output pair 1 can either be a copy of the SDI input (default) or the same as pair 2.

• The audio pairs in the SDI and HDMI outputs can be rearranged as required.

• Includes the same Down Up Cross Converter from our multi-award winning MD-DUCC, allowing either the HDMI or SDI input to be scaled and/or frame rate converted to the required standard.

• This unit also includes:
- USB port for control and firmware updates
- New Metal Thread Locking DC Power Socket
- Power Supply, HDMI Cable and USB Cable
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
1 months
