Decimator Design MD-DUCC Cross Converter
MD-DUCC Decimator Design Multi-Definition Down Up Cross Converter, 3G/HD/SD-SDI to 3G/Hd/SD-SDI, HDMI and Analogue Video
£378.49Item currently awaiting an ETA
Pre order
Pay on Scan Finance with a 10% deposit from just £9.45 / month (APR 15.9%)
From
£18.17
/ month (APR 14.9%)
Free Delivery
Delivery options
Free
By DPD
DPD
Delivered to your specified address. Receive SMS with one-hour delivery window.
£4.79
Collect from local shops
UPS and DPD Pickup
Collect your parcel from your newsagents, petrol stations and convenience stores.
Free
Collect Instore
Q-Collect
Place your order online and collect from our Bolton store with Q-Collect.
Weekend, timed and European delivery options are available at checkout
ScanProtect protection
ScanProtect
Protect against installation damage for 28 days.More
Product Overview
Multi-Definition Down Up Cross Converter
(3G/HD/SD)-SDI to (3G/HD/SD)-SDI, HDMI and Analogue Video with 2 x AES/EBU or 2 x Analogue Audio Outputs Features • The audio source for all 4 stereo pairs in the HDMI output can be selected from the 8 stereo pairs available in the SDI input
• When scaling is enabled, the audio source for all 8 stereo pairs in the SDI output can be selected from the 8 stereo pairs available in the SDI input
• Auto detects 3G, HD or SD (26 Formats in total)
• Full 10-bit data path and multipoint interpolation
• Professional motion-adaptive de-interlacing
• True Down Up Cross conversion, allowing the conversion between any of the supported formats. Simply select the output format you require, no matter what the input format is
• Complete 16:9, 14:9 and 4:3 Aspect ratio conversion support, with individual selection for HD to HD, HD to SD, SD to HD and SD to SD conversions
• Full 16-Channel Audio metering with:
- Any of the 4 audio groups individually selectable
- Vertical or Horizontal Bars
- AES, VU, Extended VU, BBC, EBU, DIN and NORDIC Scales
- Bar & Float, Bar only or Float only
- Transparency adjustment
- Separate Bar and Float Ballistics control
- Adjustable Reference level
- Red, Yellow and Green Range adjustment
- Bar thickness adjustment
- Margin adjustment
• Adjustable Graticules Generator with:
- Separate enables for Safe Action, Safe Title and Centre Cross
- Adjustable position for either Safe Action or Safe Title
- Adjustable colours for Safe Action, Safe Title and Centre Cross
• Text Overlays with:
- Adjustable Foreground and Background colours
- Adjustable 16 character text
- Current input format status
• HDMI output
• Selectable analogue video output from:
- 3 x CVBS out
- YPbPr out
- RGB out
- CVBS & YC out
• 2 x (3G/HD/SD)-SDI 10-bit outputs with audio from input automatically delayed and passed
• GPI on RJ-45 for Tallies
• 3G/HD/SD-SDI Active Loop-Through Output
• De-Embedded audio can be output on 2 x RCA connectors as either AES or Analogue with adjustable analogue audio level
• LEDs for status and buttons for basic configuration
• USB port for control and firmware updates
• Locking DC Power Socket
• The following is also included with the unit:
- Power Supply, HDMI Cable, USB Cable and Mounting Bracket
(3G/HD/SD)-SDI to (3G/HD/SD)-SDI, HDMI and Analogue Video with 2 x AES/EBU or 2 x Analogue Audio Outputs Features • The audio source for all 4 stereo pairs in the HDMI output can be selected from the 8 stereo pairs available in the SDI input
• When scaling is enabled, the audio source for all 8 stereo pairs in the SDI output can be selected from the 8 stereo pairs available in the SDI input
• Auto detects 3G, HD or SD (26 Formats in total)
• Full 10-bit data path and multipoint interpolation
• Professional motion-adaptive de-interlacing
• True Down Up Cross conversion, allowing the conversion between any of the supported formats. Simply select the output format you require, no matter what the input format is
• Complete 16:9, 14:9 and 4:3 Aspect ratio conversion support, with individual selection for HD to HD, HD to SD, SD to HD and SD to SD conversions
• Full 16-Channel Audio metering with:
- Any of the 4 audio groups individually selectable
- Vertical or Horizontal Bars
- AES, VU, Extended VU, BBC, EBU, DIN and NORDIC Scales
- Bar & Float, Bar only or Float only
- Transparency adjustment
- Separate Bar and Float Ballistics control
- Adjustable Reference level
- Red, Yellow and Green Range adjustment
- Bar thickness adjustment
- Margin adjustment
• Adjustable Graticules Generator with:
- Separate enables for Safe Action, Safe Title and Centre Cross
- Adjustable position for either Safe Action or Safe Title
- Adjustable colours for Safe Action, Safe Title and Centre Cross
• Text Overlays with:
- Adjustable Foreground and Background colours
- Adjustable 16 character text
- Current input format status
• HDMI output
• Selectable analogue video output from:
- 3 x CVBS out
- YPbPr out
- RGB out
- CVBS & YC out
• 2 x (3G/HD/SD)-SDI 10-bit outputs with audio from input automatically delayed and passed
• GPI on RJ-45 for Tallies
• 3G/HD/SD-SDI Active Loop-Through Output
• De-Embedded audio can be output on 2 x RCA connectors as either AES or Analogue with adjustable analogue audio level
• LEDs for status and buttons for basic configuration
• USB port for control and firmware updates
• Locking DC Power Socket
• The following is also included with the unit:
- Power Supply, HDMI Cable, USB Cable and Mounting Bracket

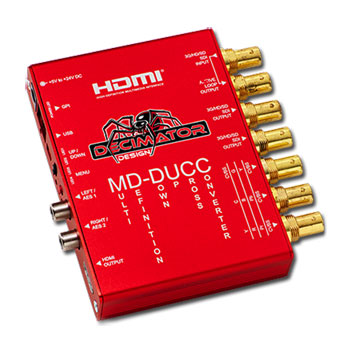

Decimator Design MD-DUCC Cross Converter
