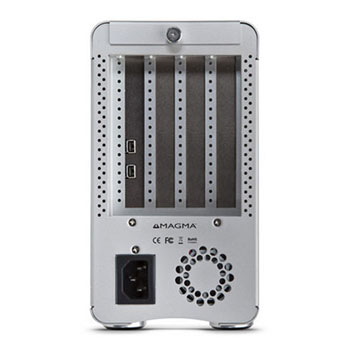

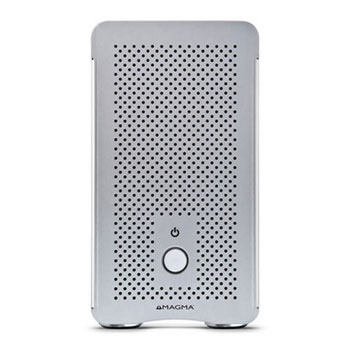

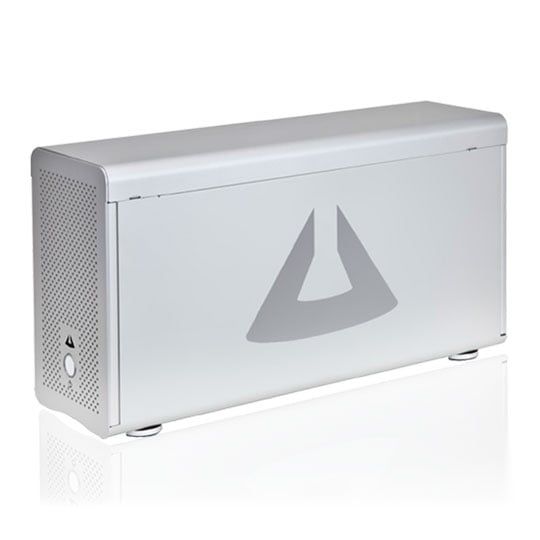

Magma ExpressBox 3T with 4 Drive Bays
Magma ExpressBox 3T - 3 Slot Thunderbolt 2 to PCIe Expansion, 4 Drive Bays, 10 Gbps Bi-directional, Aluminium Chassis
Scan code:
LN73356
Manufacturer code:
MA-EB3T-DB
End Of Life
This product is no longer available to purchase
Delivery Options
- By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- SCANPROTECT Protect against installation damage for 28 days. More info
Product Overview
The portability of the ultra versatile ExpressBox 3T with (4) 2.5” drive bays. The ExpressBox 3T-DB is the ultimate package of expansion and storage for any computing environment.
Key Features
• Hot-swappable Fan.
• 3 PCIe Slots.
• 250 Watts.
• 20 Gbps.

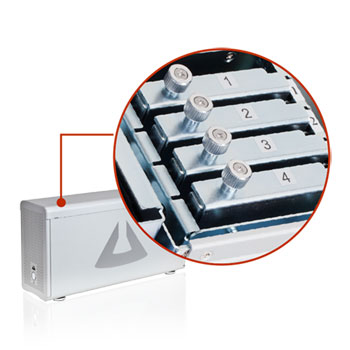

• (4) 2.5" Drive Bays
Please Note This unit can only support a single dual slot card.
ExpressBox 3T-DB provides an ‘outside-the-box’ solution for using PCIe cards with Thunderbolt 2-equipped computers. High-performance work flows are possible by connecting a Thunderbolt 2-equipped computer to a Thunderbolt 2 expansion chassis containing PCIe cards such as video capture, media transcoding, audio processing, and fast data storage. And because Thunderbolt 2 is also based on DisplayPort technology, you can daisy chain a high-resolution display with your Magma ExpressBox 3T. Features Benefits:
• Attach PCIe cards to Thunderbolt 2-enabled computer
• Extension of PCI Express signals outside the computer
• Daisy-chain or end-point device
Features
• Easy Plug and Play installation
• Use any combination of x1, x4, x8 and x16 PCIe cards
• Hot-swappable cooling fan
• Works with Mac OS X 10.6.8 or higher and Windows 7 and 8
• Additional blower for extra hot cards
• Optional built in drivebay for up to four (4) 2.5? SSD or SAS/SATA drives
• 250W power supply with (2) auxiliary power connectors
Hardware
• Backplane
- (3) Full-Length PCI Express Slots*
- one x8 PCIe (slotted to accommodate x16 card)
- one x8 PCIe
- one x 4 PCIe
- Compatible with ALL of card lengths: 1/2 length, 3/4 length and full length
• Cable Required - Thunderbolt (Sold Separately)
• Interconnect Bandwidth - 20 Gbps Bi-directional
• Hard Drive Support - Optional built in drivebay for up to four (4) 2.5" SSD or SAS/SATA drives
(when using the drivebay, maximum card length is limited to 8.5")
Please Note This unit can only support a single dual slot card.
Enclosure
• Material - Aluminum Chassis
• Dimensions - 14.6” L x 4.3” W x 7.9” H (371mm x 110mm x 200mm)
• Weight - 6 lbs (2.72 kg)
System Cooling
• (1) Hot Swappable Fan
• (1) Removable Blower Fan
Power Supply
• 250W, 100-240 VAC, 50-60HZ
• Two 4-pin auxiliary power tabs
Environmental
• Ambient Temperature - 0º to 50º C
• Storage Temperature - -20º to 60º C
• Relative Humidity - 5% to 85% non-condensing
Regulatory Compliance
• FCC - Class A Verified
• RoHS - Compliant
Supported Operating Systems
• Windows 7, 8
• Mac OS X Yosemite
Warranty
• 30 day money back guarantee
• 1 year return to factory
Partner Approvals
• Avid
• Lynx Studio
• Universal Audio
• Apogee
Package Contents
• Blower (if needed for cooling)
• Carry Bag
Key Features
• Hot-swappable Fan.
• 3 PCIe Slots.
• 250 Watts.
• 20 Gbps.
• (4) 2.5" Drive Bays
Please Note This unit can only support a single dual slot card.
ExpressBox 3T-DB provides an ‘outside-the-box’ solution for using PCIe cards with Thunderbolt 2-equipped computers. High-performance work flows are possible by connecting a Thunderbolt 2-equipped computer to a Thunderbolt 2 expansion chassis containing PCIe cards such as video capture, media transcoding, audio processing, and fast data storage. And because Thunderbolt 2 is also based on DisplayPort technology, you can daisy chain a high-resolution display with your Magma ExpressBox 3T. Features Benefits:
• Attach PCIe cards to Thunderbolt 2-enabled computer
• Extension of PCI Express signals outside the computer
• Daisy-chain or end-point device
Features
• Easy Plug and Play installation
• Use any combination of x1, x4, x8 and x16 PCIe cards
• Hot-swappable cooling fan
• Works with Mac OS X 10.6.8 or higher and Windows 7 and 8
• Additional blower for extra hot cards
• Optional built in drivebay for up to four (4) 2.5? SSD or SAS/SATA drives
• 250W power supply with (2) auxiliary power connectors
Hardware
• Backplane
- (3) Full-Length PCI Express Slots*
- one x8 PCIe (slotted to accommodate x16 card)
- one x8 PCIe
- one x 4 PCIe
- Compatible with ALL of card lengths: 1/2 length, 3/4 length and full length
• Cable Required - Thunderbolt (Sold Separately)
• Interconnect Bandwidth - 20 Gbps Bi-directional
• Hard Drive Support - Optional built in drivebay for up to four (4) 2.5" SSD or SAS/SATA drives
(when using the drivebay, maximum card length is limited to 8.5")
Please Note This unit can only support a single dual slot card.
Enclosure
• Material - Aluminum Chassis
• Dimensions - 14.6” L x 4.3” W x 7.9” H (371mm x 110mm x 200mm)
• Weight - 6 lbs (2.72 kg)
System Cooling
• (1) Hot Swappable Fan
• (1) Removable Blower Fan
Power Supply
• 250W, 100-240 VAC, 50-60HZ
• Two 4-pin auxiliary power tabs
Environmental
• Ambient Temperature - 0º to 50º C
• Storage Temperature - -20º to 60º C
• Relative Humidity - 5% to 85% non-condensing
Regulatory Compliance
• FCC - Class A Verified
• RoHS - Compliant
Supported Operating Systems
• Windows 7, 8
• Mac OS X Yosemite
Warranty
• 30 day money back guarantee
• 1 year return to factory
Partner Approvals
• Avid
• Lynx Studio
• Universal Audio
• Apogee
Package Contents
• Blower (if needed for cooling)
• Carry Bag
