Magewell One-channel HD encoder
Magewell Ultra stream HDMI
Email me when the availability or price changes
Single-Channel HD Streaming Encoder
Magewell - 'Ultra Stream HDMI'
perfect for YouTube Live, Facebook Live
and Twitch, or custom RTMP servers

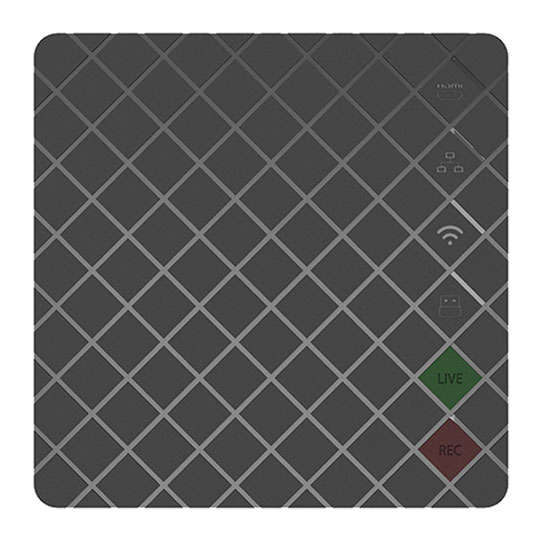

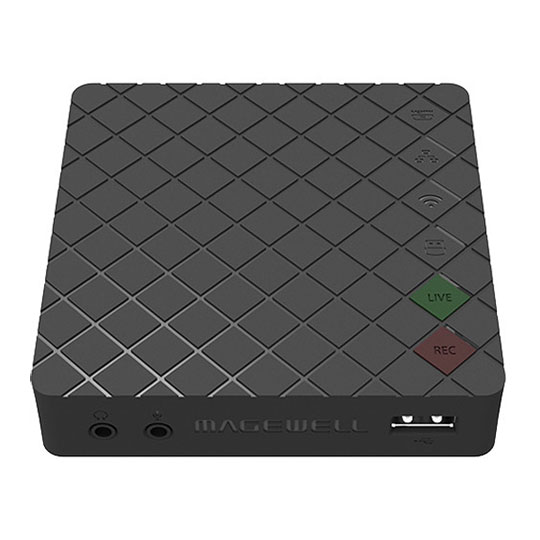

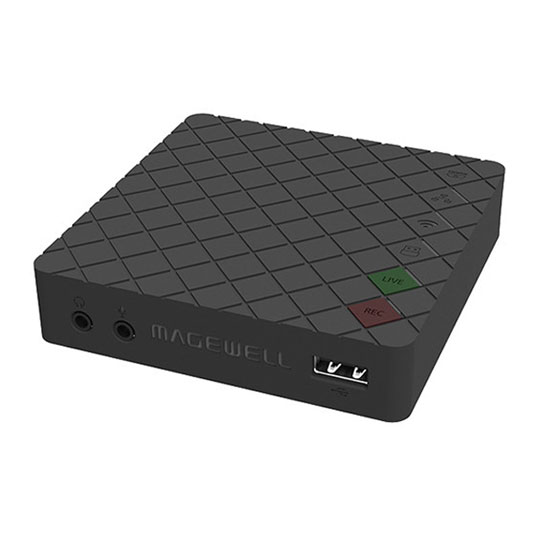

Magewell's Ultra Stream HDMI is a simple-to-use single-channel HDMI streaming encoder that can encode streams up to 1080p at 60 fps for popular content delivery networks (CDNs) such as YouTube Live, Facebook Live, and Twitch, or custom RTMP servers. Simultaneously, you can record the stream to your mobile device or a USB drive plugged into the front panel USB 2.0 port.

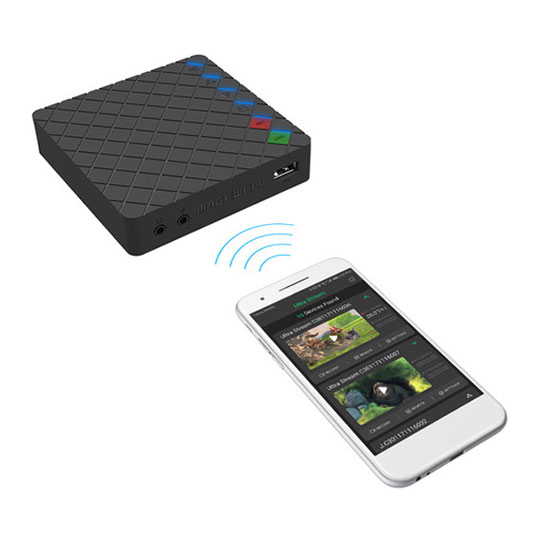

All the device's controls are found in the mobile app for iOS and Android devices. Simple push-button controls to start/stop streaming and recording are on the unit itself, exactly where you'd expect to find them.
The HDMI input can accept UHD and DCI 4K signals up to 60 fps, so streaming from PCs or game consoles that support 4K output doesn't require any other hardware. Use the HDMI loop output to view the unaffected input signal at its full resolution. Internally, the Ultra Stream HDMI will downscale it appropriately for streaming and/or recording. If you like to have live audio over your streams and recordings, use the 3.5mm input jack to plug in a mic and the other 3.5mm jack to monitor on headphones.
Key Features
• Single-Channel HD Streaming Encoder
• HDMI Loop Output
• Accepts HDMI Video Sources up to DCI 4K
• Stream up to 1080p Resolution in MP4
Meet the 'Ultra Stream HDMI' from Magewell
The Tech Spec
| Specification | Description |
|---|---|
| Inputs | HDMI: 1 x HDMI type A, v1.4a Microphone: 1 x 3.5 mm |
| Outputs | HDMI: 1 x HDMI type A, loop output Headphones: 1 x 3.5 mm |
| Other I/O | Storage: 1 x USB 2.0 Type-A Ethernet: 1 x RJ45 |
| Resolution Support | Input: Up to 4096 x 2160 at 30 fps (4:4:4, 4:2:2 sampling) or 60 fps (4:2:0 sampling) Recording: Up to 1920 x 1080 at 60 fps |
| Frame Rate Support | Input: 60/60i/30/25 Recording: 60/50/30/25/24/15 |
| Sampling | Input: 12/10/8-bit 4:4:4, 4:2:2, 4:2:0 Recording: 8-bit, 4:2:0 |
| Wireless Connectivity | Wi-Fi: IEEE 802.11 a/b/g/n/ac Bluetooth: 4.0 BLE |
| Power Input | 1 x Coaxial, 5 VDC, 2 A |
| Power Consumption | 6 W (max) |
| Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C Storage Temperature: -4 to 158°F / -20 to 70°C Relative Humidity: 5-90%, non-condensing |
| Dimensions | 3.7 x 3.7 x 1.1" / 94 x 94 x 29 mm |
