Magewell Ultra Encode SDI

Magewell Ultra Encode SDI Video Encoder, H.264/H.265, NDI HX, 1920x1080, 1x SDI Input, 1x SDI Loopthrough

Thumbnail 1 : Magewell Ultra Encode SDI Thumbnail 2 : Magewell Ultra Encode SDI Thumbnail 3 : Magewell Ultra Encode SDI Thumbnail 4 : Magewell Ultra Encode SDI
Scan code: LN118020 Manufacturer code: 53050
£480.49Item currently awaiting an ETA
Pre order
From £23.47 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £43.53
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £480.49
Total inc. interest: £522.37
Monthly Payment: £23.47
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £480.49
Total inc. interest: £563.07
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £12.77 / month (APR 19.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Magewell - 'Ultra Encode SDI'

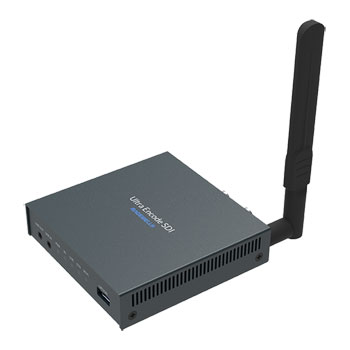

Magewell Ultra Encode SDI

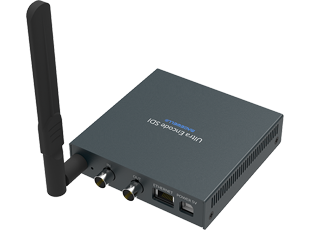

Flexible & Affordable Universal EncoderThe Ultra Encode family of universal live media encoders offers system integrators, streaming professionals, and OEM partners a flexible and affordable encoding solution for applications including live streaming, AV over IP, remote contribution, IP production workflows and much more. The Ultra Encode SDI supports high-quality H.264, H.265 (HEVC) and NDI®|HX encoding and multiple streaming protocols with wired or wireless network connectivity.


Magewell Ultra Encode SDI

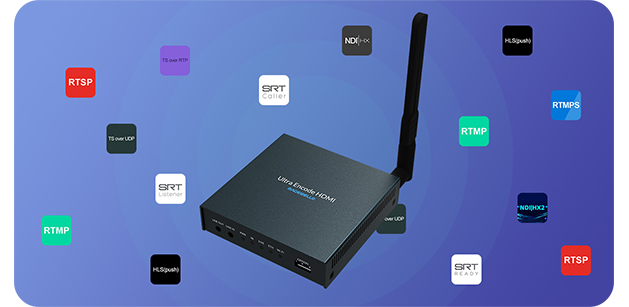

Live StreamingUltra Encode supports live streaming in protocols including RTMP, RTMPS, HLS and more at bitrates up to 16Mbps, with configurable presets for easy streaming to Facebook, Twitch and YouTube. Some protocols can be streamed to multiple destinations simultaneously.

NDI®|HX Support

Magewell Ultra Encode SDI

Production, Contribution & MonitoringIn addition to mainstream streaming protocols, Ultra Encode supports NewTek’s NDI®|HX technology for IP production workflows and the Secure Reliable Transport (SRT) protocol (developed and open-sourced by Haivision) for robust delivery of H.264/H.265 streams over unpredictable networks such as the Internet. The encoder can be camera-mounted for easy remote contribution, while bandwidth-efficient NDI®|HX streams can be sent over wireless networks to multiple receivers, simplifying on-site production and monitoring workflows.

Magewell Ultra Encode SDI

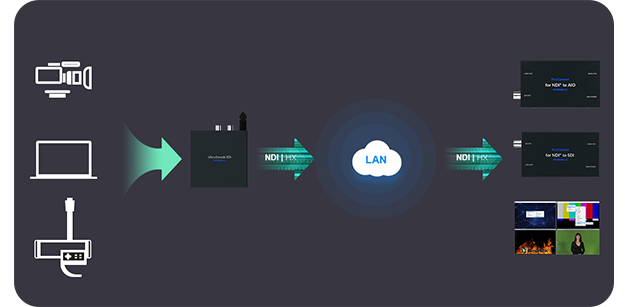

AV over IPUltra Encode can be combined with Magewell's Pro Convert decoders to form flexible AV over IP infrastructures leveraging NDI®|HX and SRT technology. The devices can be configured and controlled through an intuitive Web GUI or HTTP-based APIs, providing systems integrators with exceptional deployment and integration flexibility.

The Tech Spec

Features Specification
Input Features Max input & loop-through signal: 2048x1080 60fps
Supported inputs include:
2048x1080p/2048x1080i/1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
1280x720p 25/29.97/30/50/59.94/60
720x576 25p/50i (PAL SD)
720x480 29.97p/59.94i (NTSC SD)
8/10/12-bit colour
Input & loopthrough 16-Channel SDI embedded audio
Input Audio from 3.5 mm LINE IN
SD/HD/3G BNC input & loopthrough
SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL(ST 425)/3Gb-DS(ST 425) standards
Encoding Features Dual stream encoding: main stream and sub stream
Max bitrates:
Main Stream - 16Mbps
Sub Stream - 2Mbps
Supported resolutions:
HD: 1920x1080, 1600x1200, 1440x1080, 1440x900, 1280x1024, 1280x960, 1280x800, 1280x720, 1024x768
SD: 960x540, 800x600, 768x576, 720x576, 720x540, 640x480, 640x360, 480x360, 480x270
Supported frame rates: 60/59.94/50/30/29.97/25/24/15/10/5fps
H.264/H.265(HEVC) video encoders
Encoding 2-channel AAC audio at 48kHz, 16-bit
Supported audio bitrates: 256/192/128/96/64/48/32/16 kbps
Extracting audio from input signal and output through LINE OUT
Streaming Features Natively support Facebook, Twitch and YouTube
Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI|HX2/HLS (push)/TS over UDP/TS over RTP
Allow simultaneous sessions over the same streaming protocol. Streaming protocols are as follows.
Up to 6 sessions of TS over RTP and TS over UDP simultaneously
Up to 6 sessions of SRT Caller and SRT Listener simultaneously, containing one SRT Listener session at most (max 8 clients simultaneously)
Up to 6 sessions of RTMP and RTMPS simultaneously
Stream only 1 session of HLS (push), RTSP, or NDI|HX2
Total bitrates for different network connection types:
24Mbps for all streams is recommended for a wired network connection
16Mbps for all streams is recommended for a wireless network connection
Specify streaming main stream or sub stream for each session
Web UI Management Provide comprehensive information regarding the system information of device and working status in real-time
Video thumbnail preview
Configure parameters of volume and color, color format and quantization of input and output signals, stream profiles, as well as the network connection
Update firmware
Export configuration profiles of the device
Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers
Provide HTTP APIs
Network Interfaces Wired Ethernet network: 10/100/1000Mbps
Wi-Fi 802.11 a/b/g/n/ac
3G/4G USB mobile broadband Modem (not included)
Input/Output Interfaces SD/HD/3G BNC input and loop-through interfaces
3.5mm LINE IN
3.5mm LINE OUT

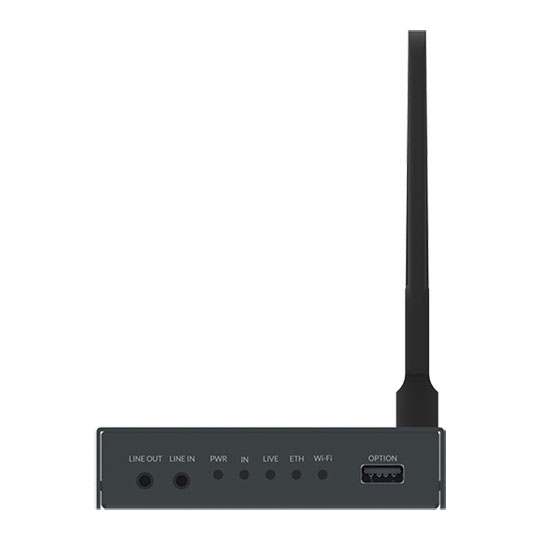

LED Indicators LEDs indicating the status of power, input signal, streaming, Ethernet and Wi-Fi connection
Power Supply and Consumption DC 5V/2A
Max power consumption: ~7.6 W
Dimensions 106.6mm x 106.2mm x 25mm
Included Accessories AC adapter
Wi-Fi antenna
USB 2.0 Type B cable
Screw Mounting Hole 2 x M3 threaded hole
A standard 1/4"-20 socket provided by T-bracket
Operating temperature 0 to 40 deg C
Storage temperatur –20 to 70 deg C
Relative humidity 5% to 90% non-condensing
