Magewell Ultra Encode AIO
Magewell Ultra Encode AIO, H.264/H.265, NDI|HX3, 4096 x 2160p60, Mix HDMI & SDI In PIP Or Side By Side
Email me when the availability or price changes
Magewell - 'Ultra Encode AIO'
a whole new level for advanced use casesIntroducing the Magewell Ultra Encode AIO, a cutting-edge live media encoder for advanced use cases. This all-in-one encoder boasts HDMI and SDI input connectivity within a single unit, offering unparalleled versatility. With the capability of 4K encoding and streaming directly from the HDMI input, the Ultra Encode AIO delivers an enhanced streaming experience. Simultaneous multi-protocol streaming, higher bit rates for streaming, and the convenience of both SD card and external USB recording make this encoder a powerful tool for high-quality live streaming across diverse applications, including sports, education, live events, IP-based production, and AV-over-IP setups.
Multi-Input Video Processing
mix video from the HDMI and SDI inputsThe single-channel Ultra Encode AIO can encode one live input source – either HDMI or SDI – or mix video from the HDMI and SDI inputs (picture-in-picture or side-by-side) into a combined output. Up to eight user-configurable overlays – including text, images, and a clock – can be applied to the output profile.
Flexible Formats And Protocols
multiple video encoding formatsUltra Encode AIO supports multiple video encoding formats – including H.264, H.265 (HEVC), NDI®|HX 2, and NDI®|HX 3 – and a wide array of delivery protocols including RTMP, RTMPS, SRT, RTSP, RTP, HLS, and TVU’s ISSP technology. Up to eight channels of audio can be encoded in AAC format.
Powerful Encoding And Streaming Capabilities
up to 4096x2160 at 30 frames per secondVideo can be encoded at resolutions up to 4096x2160 at 30 frames per second from HDMI sources, or up to 1080p HD at 60 fps from the device’s 3G-SDI input. Ultra Encode AIO can stream to up to six different target destinations simultaneously at bitrates up to 32Mbps per stream.
Versatile Recording And Streaming

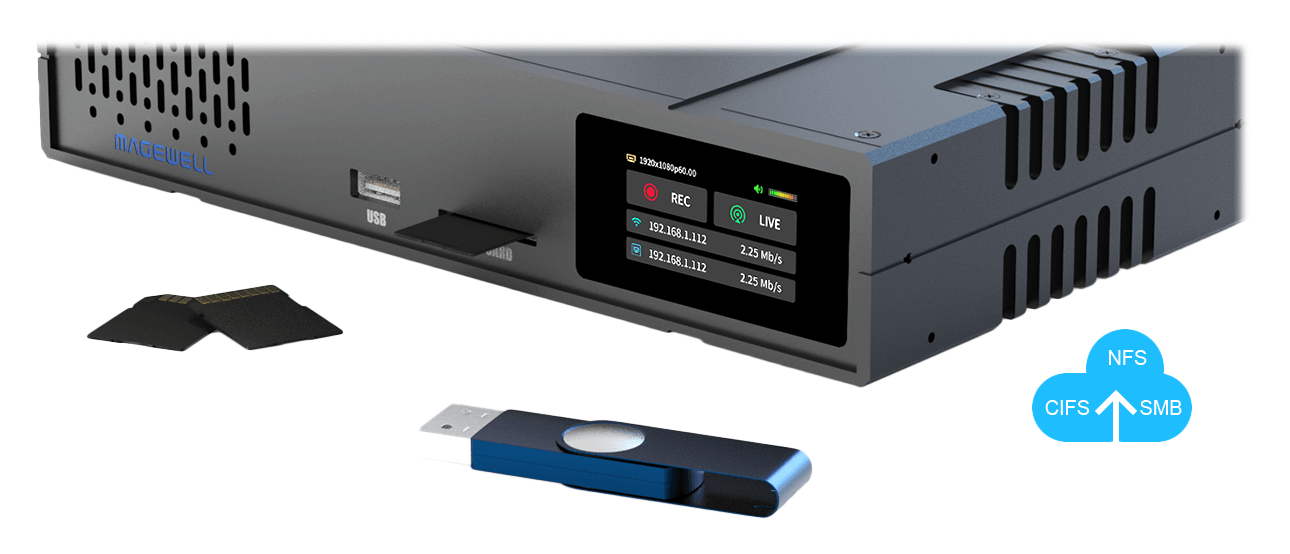

stream and record simultaneouslyUltra Encode AIO supports streaming and recording simultaneously. Inputs can be recorded as files to an SD card or an external, USB-connected storage device or networked storage (NFS, CIFS or SMB).
New NDI|HX 3 Support
NDI|HX 3For IP production workflows and AV-over-IP signal distribution architectures, Ultra Encode AIO supports NDI®|HX 3, the latest version of the high-efficiency, low-bandwidth option in the popular NDI® IP media transport technology platform. Ultra Encode AIO also supports the earlier NDI®|HX 2 for broad compatibility.
The Tech Spec
| Features | Specification | Input & Loop-through | HDMI Supports HDMI 1.4a, DVI-D Typical resolution/frame rate: 4096x2160 30fps 4:4:4/4:2:2 4096x2160 60fps 4:2:0 2048x1080p/2048x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60 1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60 1280x720p 25/29.97/30/50/59.94/60 720x576 25p/50i (PAL SD) 720x480 29.97p/59.94i (NTSC SD) colour depth: 8/10/12-bit colour sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 Custom EDID SDI Supports SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL(ST 425)/3Gb-DS(ST 425) standards Typical resolution/frame rate: 2048x1080p/2048x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60 1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60 1280x720p 25/29.97/30/50/59.94/60 720x576 25p/50i (PAL SD) 720x480 29.97p/59.94i (NTSC SD) colour sampling: YCbCr 10-bit 4:2:2, YCbCr 10-bit 4:4:4:4, YCbCr 12-bit 4:2:2, YCbCr 12-bit 4:4:4 Audio SDI embedded audio: 16-Channel, 24-bit, 192kHz sample rate HDMI embedded audio: 8-Channel, 24-bit, 192kHz sample rate Audio from 3.5 mm LINE IN: 2-Channel, 24-bit, 192kHz sample rate |
|---|---|
| Encode | Video Bitrate: NDI® HX3: up to 62.0Mbps, down to 1.5Mbps Others: up to 32.0Mbps, down to 256kpbs Dual-stream encoding: main stream and sub stream Main stream Resolution/frame rate: 4096x2160p/3840x2160p 30/29.97/25/24/15/10/5 2048x1080p/1920x1200p 60/59.94/50/30/29.97/25/24/15/10/5 1920x1080p/1920x720p 60/59.94/50/30/29.97/25/24/15/10/5 1664x936p/1600x1200p/1600x900p 60/59.94/50/30/29.97/25/24/15/10/5 1440x1080p/1440x900p 60/59.94/50/30/29.97/25/24/15/10/5 1280x1024p/1280x960p/1280x800p/1280x720p 60/59.94/50/30/29.97/25/24/15/10/5 1024x768p 60/59.94/50/30/29.97/25/24/15/10/5 960x540p/800x600p 60/59.94/50/30/29.97/25/24/15/10/5 768x576p/720x576p/720x540p/720x480p 60/59.94/50/30/29.97/25/24/15/10/5 640x480p/640x360p 60/59.94/50/30/29.97/25/24/15/10/5 480x360p/480x270p 60/59.94/50/30/29.97/25/24/15/10/5 Native CEA–608/608 over 708 captions for SDI Sub stream Supports enabling/disabling sub stream Resolution/frame rate: 1920x1080p/1920x720p 60/59.94/50/30/29.97/25/24/15/10/5 1664x936p/1600x1200p/1600x900p 60/59.94/50/30/29.97/25/24/15/10/5 1440x1080p/1440x900p 60/59.94/50/30/29.97/25/24/15/10/5 1280x1024p/1280x960p/1280x800p/1280x720p 60/59.94/50/30/29.97/25/24/15/10/5 1024x768p 60/59.94/50/30/29.97/25/24/15/10/5 960x540p/800x600p 60/59.94/50/30/29.97/25/24/15/10/5 768x576p/720x576p/720x540p/720x480p 60/59.94/50/30/29.97/25/24/15/10/5 640x480p/640x360p 60/59.94/50/30/29.97/25/24/15/10/5 480x360p/480x270p 60/59.94/50/30/29.97/25/24/15/10/5 H.264/H.265 (HEVC) Codec: System timecode or RP–188 standard timecode for SEI Message setting H.265 (HEVC) SEI message supports carrying interlacing signal mark Video aspect ratio conversion Image rotation: 0°, 90°, 180°, 270° Cropping Audio Encode up to 4 audio streams SDI Up to 8 channels can be selected for mapping when SDI input carries more than 8 audio channels Supports mapping between source channels and encoded audio channels Contains 1 x 8-channel stream and 3 x 2-channel streams HDMI Supports up to 8 source channels Supports mapping between source channels and encoded audio channels Contains 1 x 8-channel stream and 3 x 2-channel streams Bitrate: 256/192/128/96/64/48/32/16 kbps Output source embedded audio and line in through LINE OUT |
| Live stream | Natively supports streaming to: Twitch YouTube (HLS/RTMP), publishing to timeline or a new event and setting “made for kids”. Facebook, enabling backup stream and publishing to timeline or a new event. WOWZA over RTMP, adding token and publishing to timeline or a new event. WOWZA over SRT, setting AES encryption (AES–128/192/256) and publishing to a channel or a new event. Supports streaming protocols: RTSP RTMP/RTMPS SRT Caller/SRT Listener NDI®|HX2/NDI® HX3 HLS TS over UDP/TS over RTP TVU ISSP Supports streaming to 6 destinations simultaneously, containing 1 session of RTSP/SRT Listener/HLS/ISSP (if included), or 2 NDI®|HX2 sessions (if included) Supports 1 NDI® HX3 sessions exclusively Supports specifying a video stream and an audio stream for each streaming session Supports live stream scheduler |
| Record | Supports setting and managing recording function and tasks Supports recording to external SD card Supports format and performance test Supported system format: FAT32, exFAT and NTFS Automatically upload files to remote file storage platform Supports recording to external USB storage Supported system format: FAT32, exFAT and NTFS Supports recording to network attached storage (NFS/CIFS) Supported system format: NFS, CIFS Supports loop recording and normal recording Supports saving recording files in MP4, MOV or TS format Supports specifying a video stream and an audio stream for each recording task Supports customizing recording file name and prefix Supports splitting recording files by time MP4, MOV: up to 4 hours TS: no limit Supports exporting or downloading files through Web UI Supports recording scheduler |
| LCD | 1.9 inch LCD display with 320x172 resolution View real-time system information including preview image, audio meter, record and live status, IP address and QR code (Web UI). Tap to start/stop recording/live streaming |
| Web UI | Access Web UI via PC and smartphone View real-time device status Preview encoded video Set input sources Customize encoding parameters Manage streaming destinations, start/stop streaming, view streaming status Manage recording tasks and recorded files Set up to 8 overlays for each stream, including text, picture, and clock Set LCD touch screen Update firmware Supports registering Magewell Control Hub for centralized management Supports Microsoft Edge/Firefox/Chrome/Safari/Opera web browsers |
| API | Provides APIs for 3rd party control system |
| Network Connections | Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T PoE+ (IEEE 802.3at) 4G/5G USB modem (not supplied) USB Net |
| Input/Output Ports | 2 x SD/HD/3G BNC ports 2 x HDMI ports 1 x 3.5mm LINE IN 1 x 3.5mm LINE OUT 1 x USB Type-C (config) 1 x SD card slot 2 x USB Type-A |
| Storage | SD card (not supplied): FAT32, NTFS, exFAT USB flash drive (not supplied): FAT32, NTFS, exFAT NAS (not supplied): NFS/CIFS |
| LED Indicators | LED indicators show the status of network connections, power, input signal, recording and streaming |
| Power Supply and Consumption | DC 9 ~ 18 V, max current: ~ 1.15 A Max power consumption: ~ 11.5 W |
| Dimensions | 214.9mm x 128.2mm x 44.55mm Support to mount onto a standard 1U rack with provided rack-mount kit |
| Accessories | 1 x Screw locking DC power adapter 2 x Wi-Fi antenna 1 x HDMI cable 7 x M2.5 screws 1 x Retainer plate 1 x 1U short rack ear 2 x 1U long rack ears |
| Working Environment | Operating temperature: 0 to 40 deg C Storage temperature: –20 to 55 deg C Relative humidity: 5% to 90% non-condensing |
