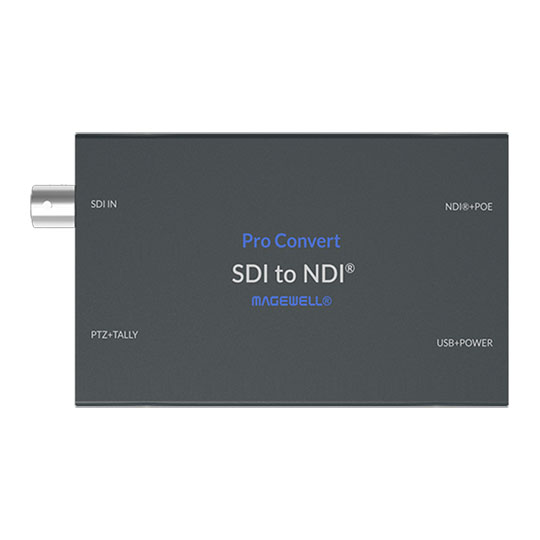

  • Thumbnail 4 : Magewell - 64063 Pro Convert SDI TX

Magewell - 64063 Pro Convert SDI TX

Magewell - 64063 Pro Convert SDI TX, Up to 2048x1200 60fps Full Bandwidth NDI Encoding

Scan code: LN110069 Manufacturer code: 640600000
£432.49
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
Get it Tomorrow, 10 NovIn stock
  • By DPD On 11th Nov Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • From £18.02 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £36.04
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £432.49
    Total inc. interest: £432.49
    Monthly Payment: £18.02
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £432.49
    Total inc. interest: £432.49
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • With a 10% deposit from just £11.49 / month (APR 19.9%)
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info

Magewell - '64063 Pro Convert SDI TX'
One-Channel HD Signal Converter

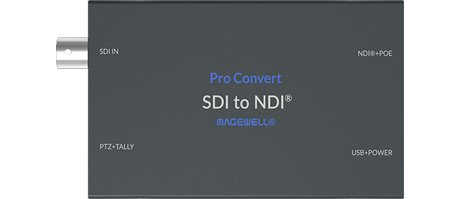

Magewell 64063 Pro Convert SDI TX

Full Bandwidth EncoderThe Magewell 64063 Pro Convert SDI TX is a HDMI to (full bandwidth) NDI encoder with I input for video up to 1080p60 and up to 8-ch embedded audio. Powered by POE or USB.

~1.5A5V Max Current

Up to 2048x1200 60fpsNDI Encoding

~6WMax Power Consumption

• Convert one channel of HDMI signal with embedded audio to NDI® stream

Magewell 64063 Pro Convert SDI TX

The Tech Spec

Features Specification
Supported Web Browsers (tested) Microsoft Internet Explorer 11
Microsoft Edge
Mozilla Firefox version 61 and above
Google Chrome version 49 and above
Apple Safari 11.1 and above
Opera 55.0.2994.44 and above
Supported Software (tested) OBS
XSplit
vMix
VidBlasterX
Wirecast
streamstar SW
mimoLive
Any other NewTek NDI-enabled encoding or streaming software

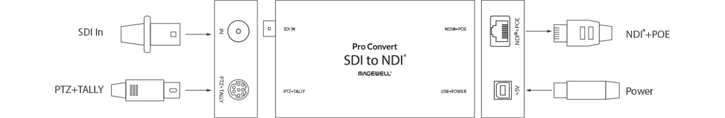

Input Interface BNC: SD/HD/3G SDI
Loop-through Interface HDMI: DVI-D 1.0, HDMI 1.4
Storage Interface SD Card (functions to be developed)
PTZ + TALLY Control Mini-DIN–8 jack
Screw Mounting Hole ¼–20 mounting hole
Network Interfaces 10/100/1000Mbps Ethernet
IEEE 802.3af PoE
USB Interface USB2.0 Type B
5V/2.1A power supply
USB RNDIS/ECM
Input feature Support for input video resolutions up to 2048x1200
SDI Specific Features Integrated cable equalizer extending the cable length as follows: up to 330m for SD-SDI signals, up to 230m for HD-SDI signals, up to 180m for 3G-SDI signals
Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS (SMPTE 2081) standards
Support for 2K (2048x1080) mode
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support for 8/10/12-bit color depth
Support for extraction of SMPTE 352 payload identifier
Support for up to 16 (mono) input and 16 output audio channels
Support for extraction of audio formation information & channel status data
Limited support for capture of one of dual link interfaces: YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60, YCbCr 4:4:4 10-bit: captured as 4:2:2, RGB 4:4:4: R/B sub-sampled
NDI® Output Format Support for 4:2:2 8-bit output
Support for up to 2048x1080 60fps output resolution
Support for NDI 4.1
Video Processing Features Support capture resolutions up to 2048x1080
Video brightness, contrast, saturation, hue adjustment
Video de-interlacing: Top & Bottom field only
Video aspect ratio conversion: Auto or manual selection of output aspect ratio
Video color format conversion: Auto or manual selection of input color format & quantization range, Auto or manual selection of output color format, quantization range & saturation range, Support for RGB, YUV BT.601, YUV BT.709, YUV BT.2020 input color formats, Support for YUV BT.601, YUV BT.709, YUV BT.2020 output color formats, Support for Limited or Full quantization range, Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Video mirror flip
NDI® Source Name Support for setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’.
Support for setting the source name shown in the system using Web UI. By default, the source name is ‘board-index + serial number’.
Support for setting board-index, from 0 to F, through on-board rotary switch.
Firmware Upgrade Support for manual update using Web UI
LED Indicator Status LEDs indicate: The state of power supply: on/off, Input signal indicator: locked/unlocked
Form Factor 100.9smm (L) x 60.2mm (W) x 23.3mm (H)
Accessories USB 2.0 A to B Cable
5V/2.1A power adaptor
Mini-DIN–8 (PTZ + TALLY) to RS232 (PTZ) + Mini-DIN–8 (TALLY)
Tally lights
L-bracket
LED matrix panel (optional)
Power Consumption 5V max current: ~1.5A
Max power consumption: ~6W
Working Environment Operating temperature: 0 to 45 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
