Magewell - 64033 Pro Convert SDI 4K Plus

Magewell - 64033 Pro Convert SDI 4K Plus, 4096x2160 30fps NDI full Bandwidth Encoding, Embedded Audio

Thumbnail 1 : Magewell  -  64033 Pro Convert SDI 4K Plus Thumbnail 2 : Magewell  -  64033 Pro Convert SDI 4K Plus Thumbnail 3 : Magewell  -  64033 Pro Convert SDI 4K Plus Thumbnail 4 : Magewell  -  64033 Pro Convert SDI 4K Plus
Scan code: LN110066 Manufacturer code: 64033
£960.49Item currently awaiting an ETA
Pre order
From £32.82 / month (APR 14.9%)
Monthly Payment: £86.23
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £960.49
Total inc. interest: £1,034.70
Monthly Payment: £46.11
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £960.49
Total inc. interest: £1,106.43
Monthly Payment: £32.82
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £960.49
Total inc. interest: £1,181.24
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Magewell - '64033 Pro Convert SDI 4K Plus'
One-channel 4K Signal Converter

Magewell 64063 Pro Convert SDI TX

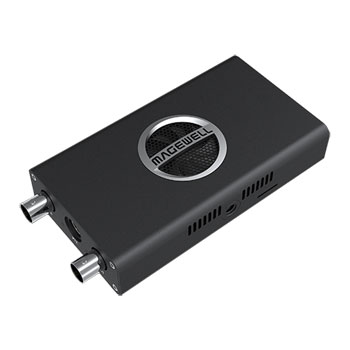

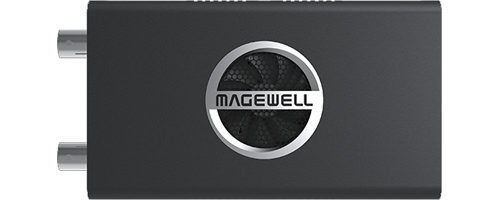

Full Bandwidth EncoderThe Magewell '64033 Pro Convert SDI 4K Plus is a full bandwidth NDI encoder which supports 4K 6G SDI input (with loop thru) up to 4096×2160p30 (HD at 60p) with 8-ch embedded audio. Powered by 5V DC via USB or POE. 8-pin port for NDI PTZ control (Sony Visca, Pelco-D, and Pelco-P) and tally signal output. A breakout cable & LED tally light are also included.

~1.5A5V Max Current

4096x2160 30fpsNDI Encoding

~7WMax Power Consumption

• Convert one channel of HDMI signal with embedded audio to NDI® stream
• Loop-through one channel of SD/3G/2K/6G-SDI signal with embedded audio

Magewell 64063 Pro Convert SDI TX

The Tech Spec

Features Specification
Supported Web Browsers (tested) Microsoft Internet Explorer 11
Microsoft Edge
Mozilla Firefox version 61 and above
Google Chrome version 49 and above
Apple Safari 11.1 and above
Opera 55.0.2994.44 and above
Supported Software (tested) OBS
XSplit
vMix
VidBlasterX
Wirecast
streamstar SW
mimoLive
Any other NewTek NDI-enabled encoding or streaming software

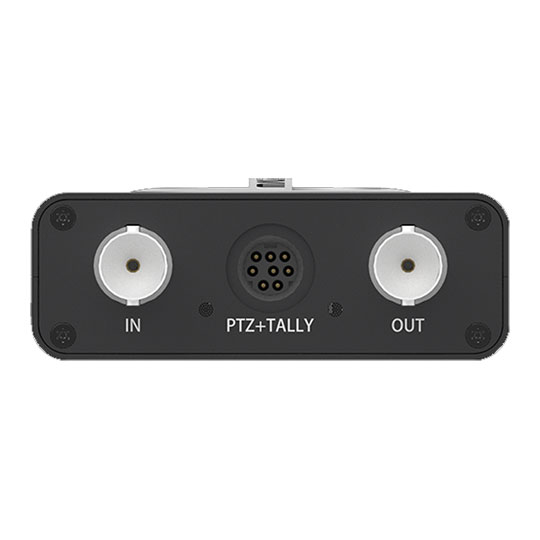

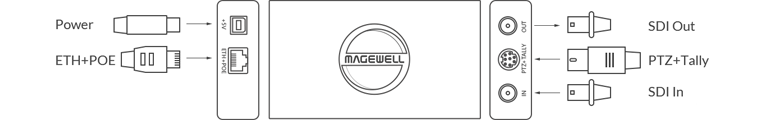

Input Interface BNC: SD/HD/6G SDI
Loop-through Interface BNC: SD/HD/6G SDI
Storage Interface SD Card (functions to be developed)
PTZ + TALLY Control Mini-DIN–8 jack
Screw Mounting Hole ¼–20 mounting hole

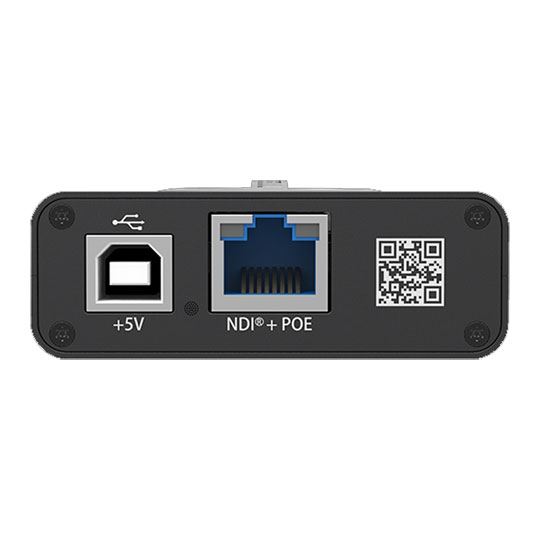

Network Interfaces 10/100/1000Mbps Ethernet
IEEE 802.3af PoE
USB Interface USB2.0 Type B
5V/2.1A power supply
USB RNDIS/ECM
Input feature Support for up to 4096x2160 30fps input resolution
SDI Specific Features Integrated cable equalizer extending the cable length as follows: up to 180m for SD-SDI signals, up to 180m for HD-SDI signals, up to 150m for 3G-SDI signals, up to 100m for 6G-SDI signals
Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS/6G (SMPTE 2081) standards
Support for 2K (2048x1080) & 4K (4096x2160) mode
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support for 10/12-bit color depth
Support for extraction of SMPTE 352 payload identifier
Support for up to 16 (mono) audio channels
Support for extraction of audio formation information & channel status data
Limited support of 3Gb-DS: only the first stream can be captured
Limited support for capture of the first link of dual link interfaces: YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60, YCbCr 4:4:4 10-bit: captured as 4:2:2, RGB 4:4:4: R/B sub-sampled
NDI® Output Format Support for 4:2:2 8-bit output
Support for up to 4096x2160 60fps output resolution
Support for NDI 4.1
Video Processing Features Support capture resolutions up to 4096x2160
Video brightness, contrast, saturation, hue adjustment
Video de-interlacing: Top & Bottom field only
Video aspect ratio conversion: Auto or manual selection of output aspect ratio
Video color format conversion: Auto or manual selection of input color format & quantization range, Auto or manual selection of output color format, quantization range & saturation range, Support for RGB, YUV BT.601, YUV BT.709, YUV BT.2020 input color formats, Support for YUV BT.601, YUV BT.709, YUV BT.2020 output color formats, Support for Limited or Full quantization range, Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Video mirror flip
NDI® Source Name Support for setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’.
Support for setting the source name shown in the system using Web UI. By default, the source name is ‘board-index + serial number’.
Support for setting board-index, from 0 to F, through on-board rotary switch.
Firmware Upgrade Support for manual update using Web UI
LED Indicator Status LEDs indicate the working state of the device: Power supply: on/off, Tally: preview/program, Input signal: locked/unlocked, Loopthrough signal: loopthrough connected and signal detected/undetected
Form Factor 117.5mm (L) x 66.7mm (W) x 23.4mm (H)
Accessories USB 2.0 A to B Cable
5V/2.1A power adaptor
Mini-DIN–8 (PTZ + TALLY) to RS232 (PTZ) + Mini-DIN–8 (TALLY)
Tally lights
L-bracket
LED matrix panel (optional)
Power Consumption 5V max current: ~1.5A
Max power consumption: ~7W
Working Environment Operating temperature: 0 to 45 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
