Magewell Pro Convert NDI to HDMI
Scan code: LN110070
Manufacturer code: 641000000
£432.49
Magewell Pro Convert NDI to HDMI
Magewell Pro Convert NDI to HDMI, Up to 4096x2160 60fps HDMI Output, POE or USB 5V/2.1A Powered
Scan code:
LN110070
Manufacturer code:
641000000
Order now and get it tomorrow, Tue 17th Sep
- SCANPROTECT Protect against installation damage for 28 days. More info
Magewell - '64103 Pro Convert NDI to HDMI'
Standalone NDI Decoder
High Quality HDMI OutputThe Magewell 64103 Pro Convert NDI to HDMI is a standalone NDI decoder which converts NDI stream to HD HDMI signal and supports up to 4096x2160 60fps HDMI output. Powered by POE or USB 5V/2.1A.
~1.1A5V Max Current
Up to 4096x2160 60fpsHDMI Output
~5WMax Power Consumption
Amazing Features
• Optimize H.26x stream decoding performance and simplify operations
• Add the function of switching decoding channels by pressing hotkeys on a connected keyboard
• Fix known defects and optimize user experience
The Tech Spec
| Features | Specification | Supported Web Browsers (tested) | Microsoft Internet Explorer 11 Microsoft Edge Mozilla Firefox version 61 and above Google Chrome version 49 and above Apple Safari 11.1 and above Opera 55.0.2994.44 and above |
|---|---|

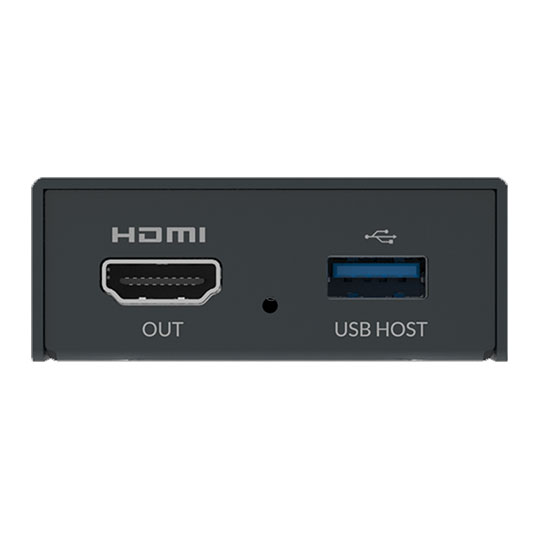

| Output Interfaces | HDMI: DVI-D 1.0, HDMI 1.4, HDMI 2.0 |
| Storage Interface | SD Card (functions to be developed) | Screw Mounting Hole | ¼–20 mounting hole |
| Network Interfaces | 10/100/1000Mbps Ethernet IEEE 802.3af PoE |
| USB Interface | USB2.0 Type B: 5V/2.1A power supply, USB RNDIS/ECM USB3.0 Type A: Support for connecting peripherals (keyboard and/or mouse) to customize the video and audio settings | Control Buttons | MENU: press to display the menu, or cycle through the options SELECT: press to display the menu, enter current option, or confirm the selection |
| HDMI Output Features | Support for up to 4096x2160 60fps HDMI output Support for 96KHz 16bits 8-channel audio streams Support for delivering videos at the preferred video format according to the EDID of the connected monitor |
| Stream Decoding Features | Support for decoding full NDI® and NDI HX in NDI 4.x Support for decoding streams of NDI, RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP Support for decoding videos in H.264 and H.265 format Support for decoding AAC/MP3 audios Support for up to 150M pixels/s decoding: When receiving 2K NDI® stream, the device could decode and convert it to 2K 60fps, When receiving 4K NDI® stream, the device could decode and convert it to 4K 15fps Support for modifying configurations using the Web UI or the Options menu Setting Video OSD composition, including: Source name & resolution, Tally indicators, Audio meter, Audio meter scale, Center cross, Safe area Video scaling, frame rate and aspect ratio conversion Video color format conversion: Auto or manual selection of input color format, Support YUV BT.601, YUV BT.709 color formats Video vertical and mirror flip Remote controlling the PTZ device connected to the video source Setting audio gain, sample rate and channels |
| Device Name | Support for setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’. Support for setting board-index, from 0 to F, through the on-board rotary switch. |
| Firmware Upgrade | Support for manual update using Web UI | LED Indicator | Power LED status indicator: On: power connected, Off: power unconnected Decode LED status indicator: On: decoding in progress, Blinks: decoding error, Off: source unselected |
| Form Factor | 100.9mm (L) x 60.2mm (W) x 23.3mm (H) |
| Accessories | USB 2.0 A to B Cable 5V/2.1A power adaptor L-bracket | Power Consumption | 5V max current: ~1.1A Max power consumption: ~5W |
| Working Environment | Operating temperature: 0 to 45 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing |
