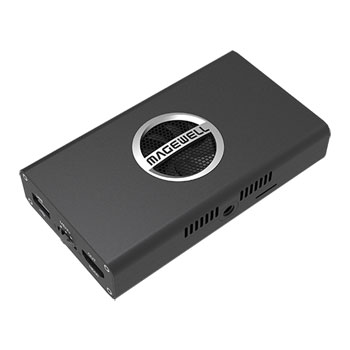

Magewell Pro Convert NDI to HDMI 4K
Scan code: LN110071
Manufacturer code: 641100000
£1,008.49Item currently awaiting an ETA
Pre order
Magewell Pro Convert NDI to HDMI 4K
Magewell Pro Convert NDI to HDMI 4K, 4K60 IP Stream Decoder, 4096x2160 60fps Output Res, HDMI 2.0 Output
Scan code:
LN110071
Manufacturer code:
641100000
Item currently awaiting an ETA
Pre order
- SCANPROTECT Protect against installation damage for 28 days. More info
Magewell - '64113 Pro Convert NDI to HDMI 4K'
Standalone 4K60 IP Stream Decoder
NDI DecoderThe Magewell 64113 Pro Convert NDI to HDMI 4K is a NDI decoder which supports HDMI output and converts multi-protocol IP-based stream into a 4K HDMI signal. It is powered by 5V DC via USB or POE.
~7.2WMax Power Consumption
Up to 4096x2160 60fpsOutput Resolution
HDMI 2.0Output
Amazing Features
• Optimize H.26x stream decoding performance and simplify operations
• Add the function of switching decoding channels by pressing hotkeys on a connected keyboard
• Fix known defects and optimize user experience
The Tech Spec
| Features | Specification | Supported Web Browsers (tested) | Microsoft Internet Explorer 11 Microsoft Edge Mozilla Firefox version 61 and above Google Chrome version 49 and above Apple Safari 11.1 and above Opera 55.0.2994.44 and above |
|---|---|
| Output Interfaces | HDMI: HDMI 1.4, HDMI 2.0 |
| Storage Interface | SD Card (functions to be developed) | Screw Mounting Hole | ¼–20 mounting hole |
| Network Interfaces | 10/100/1000Mbps Ethernet IEEE 802.3af PoE |

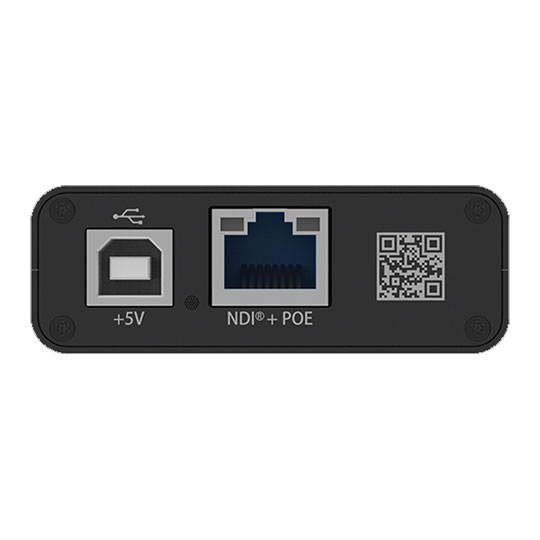

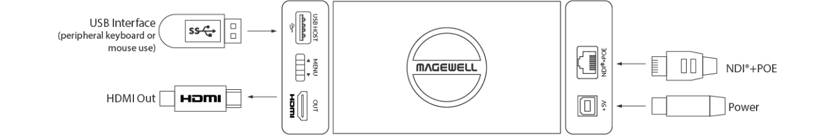

| USB Interface | USB2.0 Type B: 5V/2.1A power supply, USB RNDIS/ECM USB3.0 Type A: Support for connecting peripherals (keyboard and/or mouse) to customize the video and audio settings |

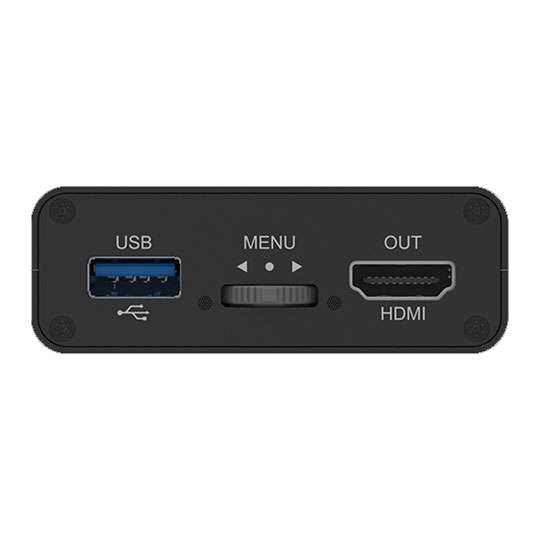

| Control Buttons | MENU: press to display the menu or select current parameter, or toggle the switch left and right to cycle through the options |
| HDMI Output Features | 297MHz HDMI receiver Support for up to 4:4:4 8-bit 4096x2160 60fps output HDMI resolutions Support for 96KHz 16bits 8-channel audio streams Support for delivering videos at the preferred video format according to the EDID of the connected monitor | Stream Decoding Features | Support for decoding full NDI® and NDI HX in NDI 4.x Support for decoding streams of NDI, RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP Support for decoding videos in H.264 and H.265 format Support for decoding AAC/MP3 audios Support for decoding up to 4K 60fps signal Support for modifying configurations using the Web UI or the Options menu Setting Video OSD composition, including: Source name & resolution, Tally indicators, Audio meter, Audio meter scale, Center cross, Safe area Video scaling, frame rate and aspect ratio conversion Video color format conversion: Auto or manual selection of input color format, Support for YUV BT.601, YUV BT.709 color formats Video vertical and mirror flip Remote controlling the PTZ device connected to the video source Setting audio gain, sample rate and channels Support for decoding sources in different network segment but can be able to pinged Support for decoding alpha channel, options are: Alpha only, Alpha blend with white, Alpha blend with black, Alpha blend with checkboard |
| Device Name | Support for setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’. Support for setting board-index, from 0 to F, through the on-board rotary switch. |
| Firmware Upgrade | Support for manual update using Web UI |
| LED Indicator | Power LED status indicator: On: power connected, Off: power unconnected Decode LED status indicator: On: decoding in progress, Blinks: decoding error, Off: source unselected |
| Form Factor | 117.5mm (L) x 66.7mm (W) x 23.4mm (H) |
| Accessories | USB 2.0 A to B Cable 5V/2.1A power adaptor L-bracket |
| Power Consumption | 5V max current: ~1.6A Max power consumption: ~7.2W | Working Environment | Operating temperature: 0 to 45 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing |
