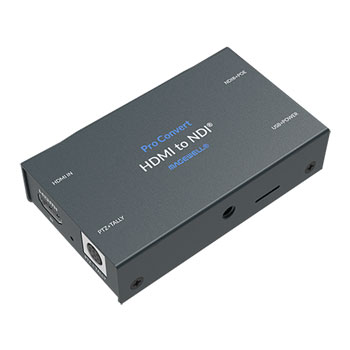

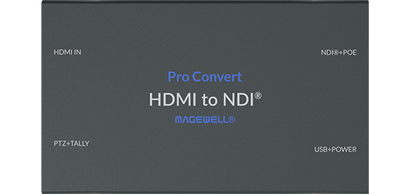

Magewell - Pro Convert HDMI TX
Magewell - Pro Convert HDMI TX, full bandwidth NDI encoder Up to 2048x1200 60fps, USB/POE Powered
Scan code:
LN110068
Manufacturer code:
640500000
Item currently awaiting an ETA
Pre order
- SCANPROTECT Protect against installation damage for 28 days. More info
Magewell - '64053 Pro Convert HDMI TX'
One-Channel HD Signal Converter
Full BandwidthThe Magewell 64053 Pro Convert HDMI TX is a HDMI to full bandwidth NDI encoder with HDMI input for video up to 1080p60 and up to 8-ch embedded audio. Powered by POE or USB.
• Convert one channel of HDMI signal with embedded audio to NDI® stream
Mini-DIN-8PTZ Interface
Up to 2048x1200 60fpsNDI Encoding
DC+5VPower Interface
The Tech Spec
| Features | Specification | Supported Web Browsers (tested) | Microsoft Internet Explorer 11 Microsoft Edge Mozilla Firefox version 61 and above Google Chrome version 49 and above Apple Safari 11.1 and above Opera 55.0.2994.44 and above |
|---|---|
| Supported Software (tested) | OBS XSplit vMix VidBlasterX Wirecast streamstar SW mimoLive Any other NewTek NDI-enabled encoding or streaming software |

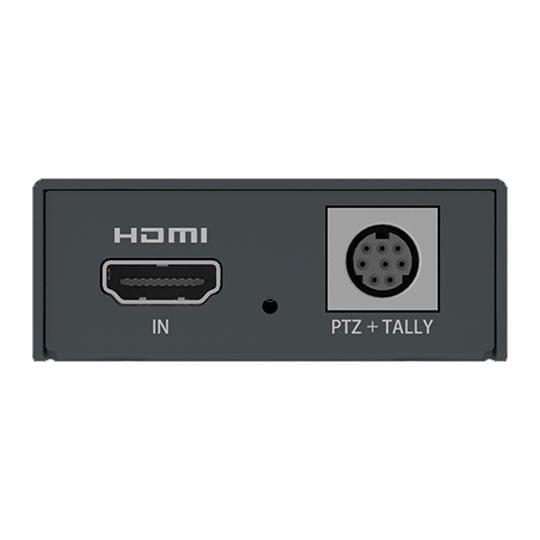

| Input Interface | HDMI: DVI-D 1.0, HDMI 1.4 | Loop-through Interface | HDMI: DVI-D 1.0, HDMI 1.4 |
| Storage Interface | SD Card (functions to be developed) |
| PTZ + TALLY Control | Mini-DIN–8 jack | Screw Mounting Hole | ¼–20 mounting hole |

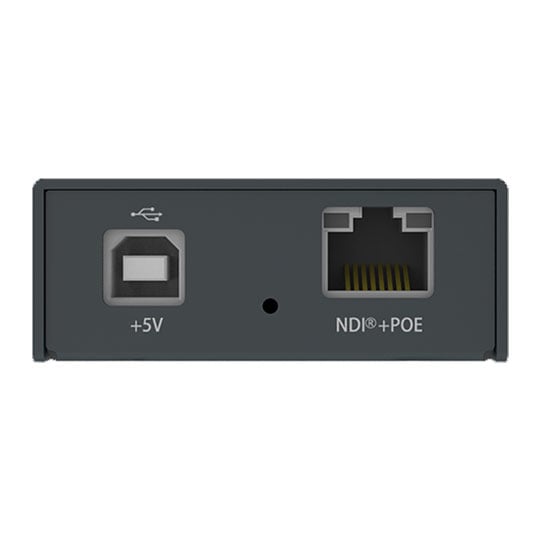

| Network Interfaces | 10/100/1000Mbps Ethernet IEEE 802.3af PoE |
| USB Interface | USB2.0 Type B 5V/2.1A power supply USB RNDIS/ECM |
| Input feature | Support for input video resolutions up to 2048x1200 |
| HDMI Specific Features | 165MHz HDMI receiver Adaptive HDMI equalizer support for cables lengths up to 30M Support for customized EDID Support for extraction of AVI/Audio InfoFrames Full colorimetry support Support up to 2048x1200 4:4:4/4:2:2 60fps input signals Support 8 input and 2 output IEC60958 audio streams Support for extraction of audio formation information & channel status data Support for extraction of video timing information Support for extraction of 3D format information Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode | NDI® Output Format | Support for 4:2:2 8-bit output Support for up to 2048x1200 60fps Support for NDI 4.1 |
| Video Processing Features | Video processing pipelines with 160 Mpixels/s Video brightness, contrast, saturation, hue adjustment Video de-interlacing: Top & Bottom field only Video aspect ratio conversion: Auto or manual selection of output aspect ratio Video color format conversion: Auto or manual selection of input color format & quantization range, Auto or manual selection of output color format, quantization range & saturation range, Support for RGB, YUV BT.601, YUV BT.709, YUV BT.2020 input color formats, Support for YUV BT.601, YUV BT.709, YUV BT.2020 output color formats, Support for Limited or Full quantization range, Support for Limited, Full & ‘Extended gamut’ saturation range Video frame rate conversion Video mirror flip |
| NDI® Source Name | Support for setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’. Support for setting the source name shown in the system using Web UI. By default, the source name is ‘board-index + serial number’. Support for setting board-index, from 0 to F, through on-board rotary switch. | Firmware Upgrade | Support for manual update using Web UI |
| LED Indicator | Status LEDs indicate: The state of power supply: on/off, Input signal indicator: locked/unlocked |
| Form Factor | 100.9smm (L) x 60.2mm (W) x 23.3mm (H) |
| Accessories | USB 2.0 A to B Cable 5V/2.1A power adaptor Mini-DIN–8 (PTZ + TALLY) to RS232 (PTZ) + Mini-DIN–8 (TALLY) Tally lights L-bracket LED matrix panel (optional) |
| Power Consumption | 5V max current: ~1.5A Max power consumption: ~6W | Working Environment | Operating temperature: 0 to 45 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing |
