Magewell Pro Convert HDMI Plus
Scan code: LN110065
Manufacturer code: 640200000
£479.99
Magewell Pro Convert HDMI Plus
Magewell Pro Convert HDMI Plus, 2048x2160 120fps NDI Encoding, 297MHz HDMI Receiver
Scan code:
LN110065
Manufacturer code:
640200000
Order by 8:30 PM today and get it tomorrow
Email me when the availability or price changes
Finance this product
- From £23.44 / month (APR 16.9%) for 24 months or 0% for 4 months
- With a 10% deposit from just £11.99 / month (APR 15.9%)
- SCANPROTECT Protect against installation damage for 28 days.
Magewell - '64023 Pro Convert HDMI Plus'
One-Channel HD Signal Converter

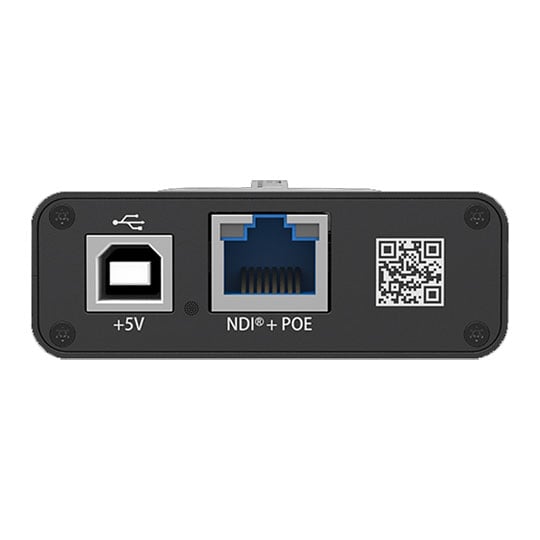

Full BandwidthThe Magewell 64023 Pro Convert HDMI Plus is a full bandwidth NDI encoder which supports HDMI input (with loop thru) up to 1080p60 HD with 8-ch embedded audio. It is powered by 5V DC via USB or POE. The 8-pin port is for NDI PTZ control (Sony Visca, Pelco-D, and Pelco-P) and tally signal output. A breakout cable and LED tally light are also included.
~8WMax Power Consumption
Up to 2048x2160 120fpsNDI Encoding
297MHzHDMI Receiver
• Convert one channel of HDMI signal with embedded audio to NDI® stream
• Loop-through one channel of HDMI signal with embedded audio
The Tech Spec
| Features | Specification | Supported Web Browsers (tested) | Microsoft Internet Explorer 11 Microsoft Edge Mozilla Firefox version 61 and above Google Chrome version 49 and above Apple Safari 11.1 and above Opera 55.0.2994.44 and above |
|---|---|
| Supported Software (tested) | OBS XSplit vMix VidBlasterX Wirecast streamstar SW mimoLive Any other NewTek NDI-enabled encoding or streaming software |
| Input Interface | HDMI: DVI-D 1.0, HDMI 1.4 | Loop-through Interface | HDMI: DVI-D 1.0, HDMI 1.4 |
| Storage Interface | SD Card (functions to be developed) |
| PTZ + TALLY Control | Mini-DIN–8 jack | Screw Mounting Hole | ¼–20 mounting hole |
| Network Interfaces | 10/100/1000Mbps Ethernet IEEE 802.3af PoE |
| USB Interface | USB2.0 Type B 5V/2.1A power supply USB RNDIS/ECM |
| Input feature | Support for input video resolutions up to 4096x2160 |
| HDMI Specific Features | 297MHz HDMI receiver Adaptive HDMI equalizer Support for customized EDID Support for extraction of AVI/Audio InfoFrames Full colorimetry support Support for up to 4096x2160 4:4:4/4:2:2 30fps or 4096x2160 4:2:0 60fps input signals Support for 8 channel IEC60958 audio streams Support for extraction of audio formation information & channel status data Support for extraction of video timing information Support for extraction of 3D format information Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode | NDI® Output Format | Support for 4:2:2 8-bit output Support for up to 2048x2160 120fps Support for NDI 4.1 |
| Video Processing Features | Video processing pipelines with 160 Mpixels/s Video brightness, contrast, saturation, hue adjustment Video de-interlacing: Top & Bottom field only Video aspect ratio conversion: Auto or manual selection of output aspect ratio Video color format conversion: Auto or manual selection of input color format & quantization range, Auto or manual selection of output color format, quantization range & saturation range, Support for RGB, YUV BT.601, YUV BT.709, YUV BT.2020 input color formats, Support for YUV BT.601, YUV BT.709, YUV BT.2020 output color formats, Support for Limited or Full quantization range, Support for Limited, Full & ‘Extended gamut’ saturation range Video frame rate conversion Video mirror flip |
| NDI® Source Name | Support for setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’. Support for setting the source name shown in the system using Web UI. By default, the source name is ‘board-index + serial number’. Support for setting board-index, from 0 to F, through on-board rotary switch. | Firmware Upgrade | Support for manual update using Web UI |
| LED Indicator | Status LEDs indicate: The state of power supply: on/off, Tally: preview/program, The state of input signal: locked/unlocked, The state of loopthrough signal: loopthrough connected and signal detected/undetected |
| Form Factor | 117.5mm (L) x 66.7mm (W) x 23.4mm (H) |
| Accessories | USB 2.0 A to B Cable 5V/2.1A power adaptor Mini-DIN–8 (PTZ + TALLY) to RS232 (PTZ) + Mini-DIN–8 (TALLY) L-bracket LED matrix panel (optional) |
| Power Consumption | 5V max current: ~1.5A Max power consumption: ~8W | Working Environment | Operating temperature: 0 to 45 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing |

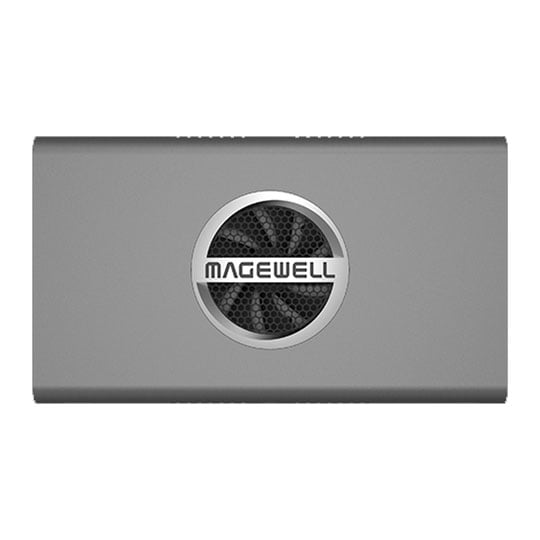

Magewell Pro Convert HDMI Plus
