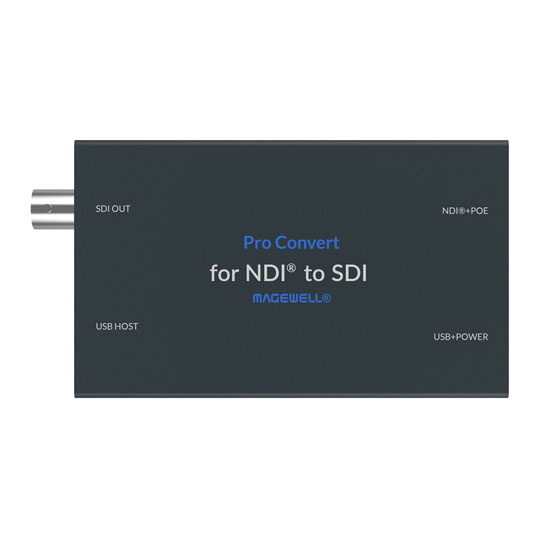

Magewell Pro Convert For NDI To SDI
Magewell Pro Convert For NDI To SDI, Up To 1080p60 Output, 16-Bit 8-Ch Audio, USB / PoE Power
Email me when the availability or price changes
Magewell - 'Pro Convert For NDI To SDI'
convert NDI stream with embedded audio to SDIIntroducing the Magewell Pro Convert for NDI to SDI Decoder, effortlessly transform NDI streams, complete with embedded audio, into high-quality SDI output signals. With support for resolutions up to 2K60 through NDI input and decoding capabilities reaching 1080p60 for 3G-SDI output, the Pro Convert ensures unparalleled flexibility in your workflow. Embracing the convergence of traditional and IP-based technologies, enabling smooth communication between different media environments. Harness the power of full-bandwidth NDI and high-efficiency NDI|HX modes, extending up to NDI|HX3, while enjoying compatibility with various streaming protocols such as SRT, RTSP, RTMP, UDP, RTP, HLS, and HTTP.
Up to NDI 2K60Input
Up to 1080p60 3G-SDIoutput signals
USB / PoEPower
The Tech Spec

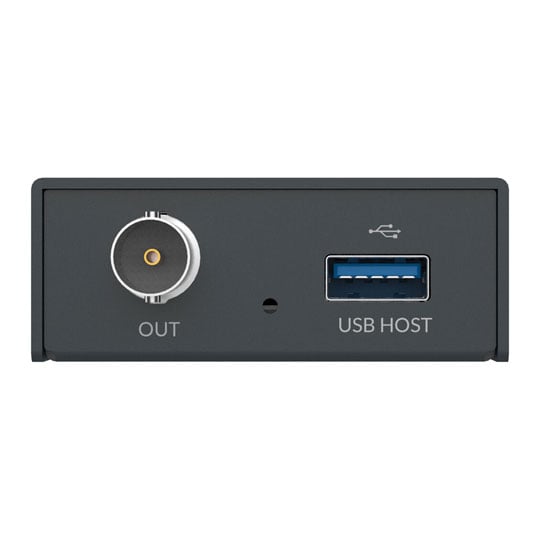

| Features | Specification | Output Features | Max output: 1920x1080p60 Support YUV BT.601, YUV BT.709 signals Support 48KHz 8-channel audio output SD/HD/3G-SDI BNC output Support SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425) SDI standards Output 3G-SDI signal and transmitted distance greater than 100m (328ft) |
|---|---|
| Decoding Features | Decoding up to 2Kp60 streams of Full NDI, NDI®|HX, NDI®|HX2, NDI®|HX3, RTSP, HTTP, HLS, RTMP Pull/Push, and MPEG-TS over UDP/SRT/RTP protocols H.264/H.265 video decoders AAC/MP3 audio decoders Support NDI 5.x |
| Configuration Management | Register with Control Hub Remote control via WebUI and Control Hub Provide comprehensive information regarding the device and decoded signals in real-time Allow to configure how a signal is processed and decoded Update firmware Support USB RNDIS/ECM Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers Provide HTTP APIs |
| On-board Control Buttons | MENU: press to display the menu, or cycle through the options SELECT: press to display the menu, enter current option, or confirm the selection 16 Position Rotary DIP Switch: set board-index from 0 to F |

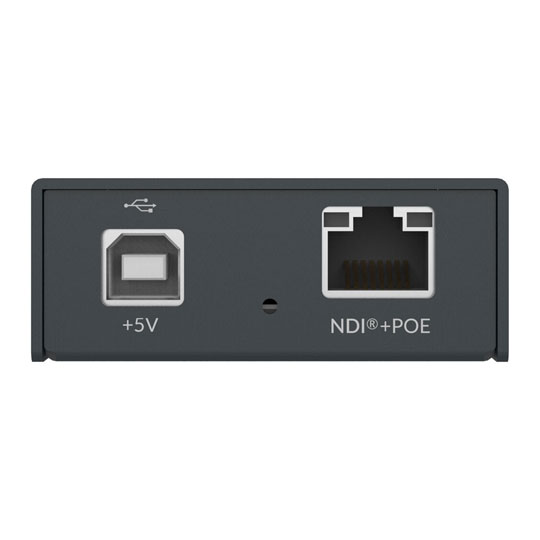

| Network Interfaces | 10/100/1000Mbps Ethernet IEEE 802.3af PoE |
| USB Interfaces | USB2.0 Type B: 5V/2.1A power supply, USB RNDIS/ECM USB3.0 Type A: Connecting peripherals (keyboard and/or mouse) to set up device |
| LED Indicators | Power LED status indicator Decode LED status indicator |
| Form Factor | 100.9mm (L) x 60.2mm (W) x 23.3mm (H) |
| Accessories | USB 2.0 A to B cable 5V/2.1A power adaptor L-bracket |
| Screw Mounting Hole | ¼–20 threaded hole |
| Power Consumption | 5V max current: ~1.05A Max power consumption: ~5.5W |
| Working Environment | Operating temperature: 0 to 40 deg C Storage temperature: –20 to 70 deg C Relative humidity: 5% to 90% non-condensing |
