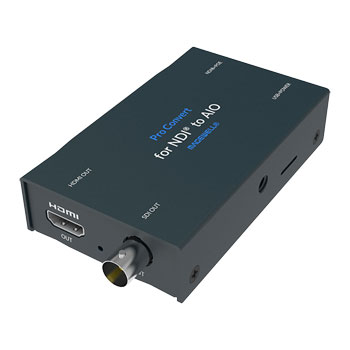

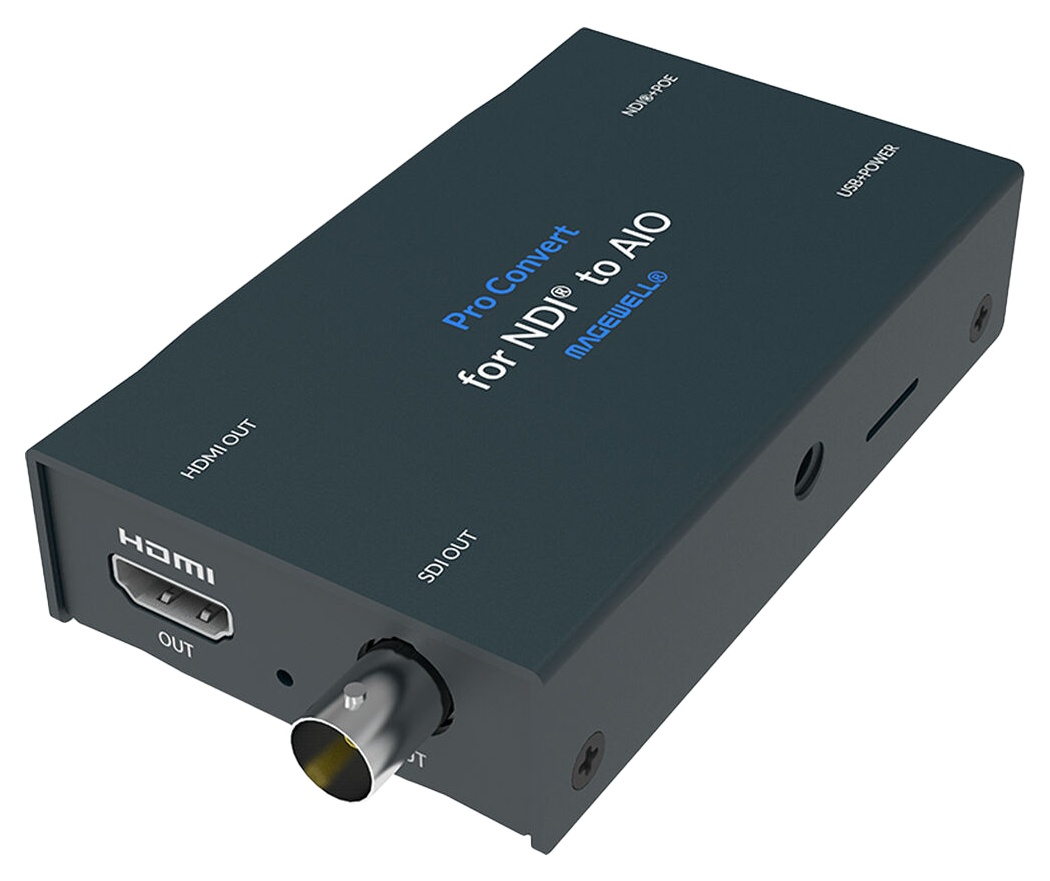

Magewell Pro Convert For NDI To AIO
Magewell Pro Convert For NDI To AIO, Up To 1920x1080 60fps HDMI And SDI Output, USB / PoE Power
Email me when the availability or price changes
-
Pay in
3
interest-free payments of
£152.00
- With a 10% deposit from just £12.12 / month (APR 19.9%)
Magewell - 'Pro Convert For NDI To AIO'
NDI to HDMI/SDI DecoderIntroducing the Magewell Pro Convert for NDI to AIO, a cutting-edge solution designed to seamlessly transform live NDI streams into HDMI and SDI outputs at resolutions of up to 1080p60. Simultaneously decoding up to a 2K60 H.264/H.265 stream with AAC/MP3 audio, this versatile device now supports NDI|HX3. The Pro Convert boasts a user-friendly Web UI that provides real-time insights into the decoded signal, offering a range of customizable options. Users can effortlessly adjust deinterlacing factors, resolution, audio gain, sample rate, channel mapping, network connection, and OSD settings. The onboard controls, including a 16-position rotary dip switch for board index configuration, simplify menu navigation. Power options include PoE or USB, with LED indicators offering clear visibility into power and decoding status, including decoding errors. Compact and easily integrated into workflows, the Pro Convert enhances your live streaming experience.
USB / PoEPower
1080p60 HDMI/SDIOutput
48 kHz 8-Channel HDMI/SDIAudio Output
The Tech Spec

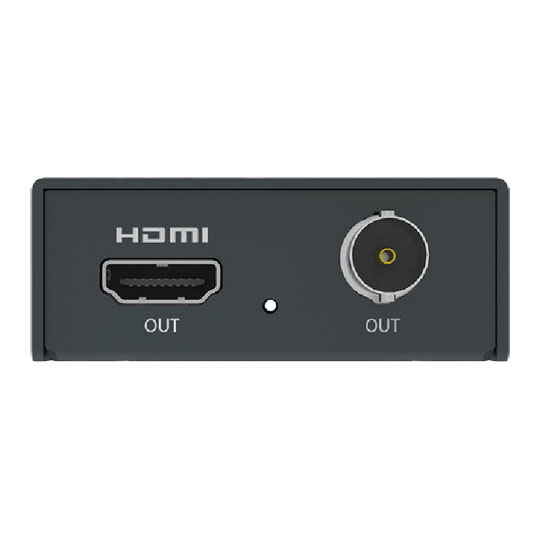

| Features | Specification | HDMI Output | Max output: 1920x1080p60 Delivery video within 2K at the preferred video format according to the EDID of the connected monitor Support YUV BT.601, YUV BT.709 signal Support 48KHz 8-channel audio output HDMI interface: HDMI 1.4 |
|---|---|
| SDI Output | Max output: 1920x1080p60. Support YUV BT.601/709 signal Support 48KHz 8-channel audio output SD/HD/3G-SDI BNC output Support SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425) SDI standards Output 3G-SDI signal and transmitted distance at 130m (427ft) |
| Decoding Features | Decoding up to 2Kp60 streams of Full NDI, NDI®|HX, NDI®|HX2, NDI®|HX3, RTSP, HTTP, HLS, RTMP Pull/Push, and MPEG-TS over UDP/SRT/RTP protocols Simultaneously decode and output HDMI and SDI signals H.264/H.265 video decoders AAC/MP3 audio decoders Support NDI 5.x |
| Configuration Management | Register with Control Hub Remote control via WebUI and Control Hub Provide comprehensive information regarding the device and decoded signals in real-time Allow to configure how a signal is decoded and output, including OSD settings, deinterlacing, resolutions, audio gain, sample rate, and channel mapping, as well as the network connection Update firmware Support USB RNDIS/ECM Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers Provide HTTP APIs |

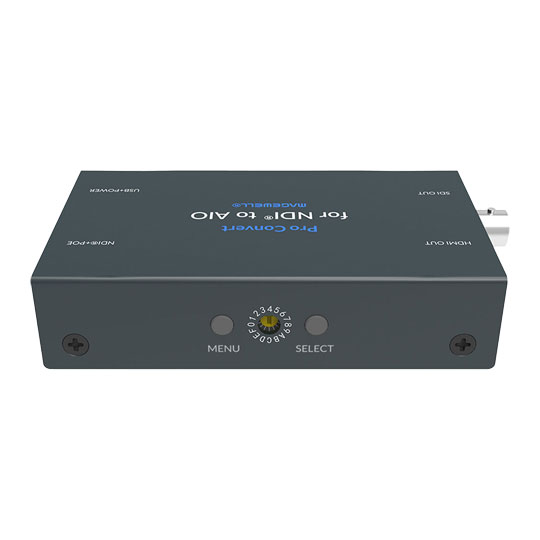

| On-board Control Buttons | MENU: press to display the menu, or cycle through the options SELECT: press to display the menu, enter current option, or confirm the selection 16 Position Rotary DIP Switch: set board-index from 0 to F |

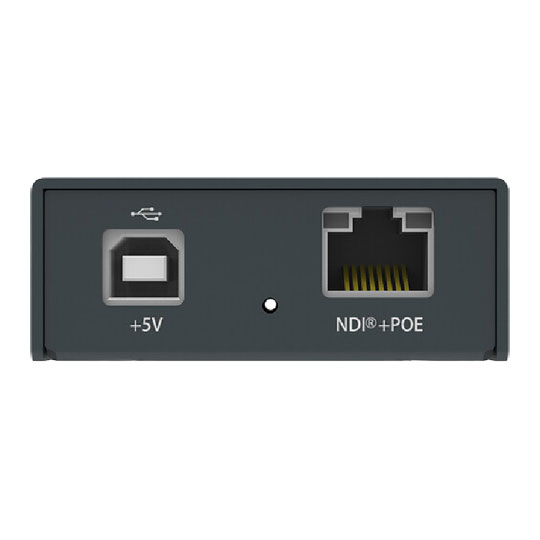

| Network Interfaces | 10/100/1000Mbps Ethernet IEEE 802.3af PoE |
| USB Interface | USB2.0 Type B: 5V/2.1A power supply USB RNDIS/ECM |
| LED Indicators | Power LED status indicator: On: power connected Off: power unconnected Decode LED status indicator: On: decoding Blinks: decoding error Off: source unselected |
| Form Factor | 100.9mm (L) x 60.2mm (W) x 23.3mm (H) |
| Accessories | USB 2.0 A to B cable 5V/2.1A power adaptor L-bracket |
| Screw Mounting Hole | ¼–20 threaded hole |
| Power Consumption | 5V max current: ~1.05A Max power consumption: ~5.5W |
| Working Environment | Operating temperature: 0 to 40 deg C Storage temperature: –20 to 70 deg C Relative humidity: 5% to 90% non-condensing |
