Magewell Pro Convert 12G SDI 4K Plus

Single Channel 12G-SDI to Full NDI Converter

The Magewell Pro Convert 12G-SDI 4K Plus is a single-channel 4Kp60 12G-SDI to Full NDI converter that offers a plug-and-play solution with one SDI input and loop-through featuring eight channels of embedded audio. Support for up to DCI 4K 4096x2160 video at 60fps input and support for DCI 4K 4096x2160 8-bit 4:2:2 60fps video output via the RJ45 Gigabit Ethernet port.

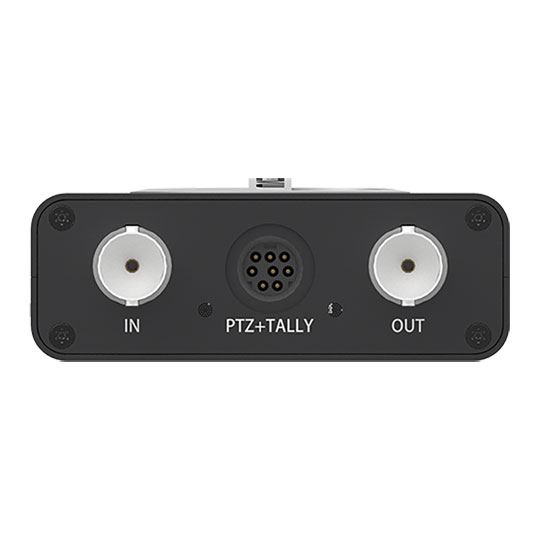

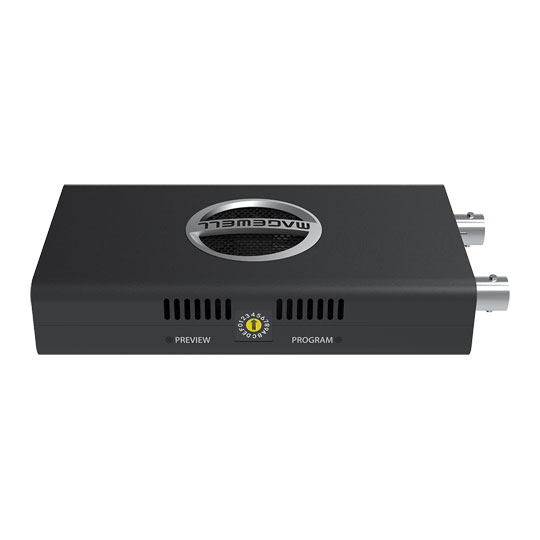

The 12G-SDI loop-through output allows you to monitor your input while the NDI-encoded stream can be sent to a variety of NDI-compatible encoding or streaming applications such as OBS, XSplit, vMix, Wirecast, and others via Ethernet. The mini DIN-8 tally/PTZ port provides tally input to pass-through as well as for use with the unit's status LEDs. The LEDs also indicate power, output, and input signal status.

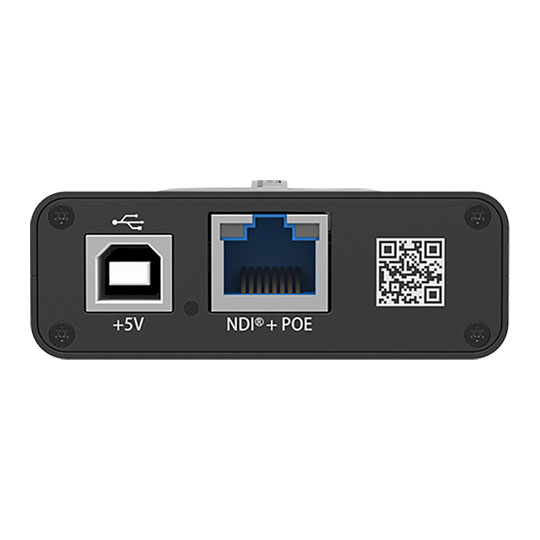

Powered by a 5V power adapter connected to its USB 2.0 Type-B port or via PoE over its RJ45 port. The Pro Convert can be managed with a web UI to configure settings and apply firmware updates via the USB port. A 1/4"-20 mounting thread allows you to mount the unit in a rack, with a bracket, or on a stand. Included with the Pro Convert are a USB cable, a 5V power adapter, a mini DIN-8 cable, and an L-bracket for mounting.

Input Features
• Single-link 12G-SDI input and loop-through
• Support for up to 4096x2160 60fps input
• Support for up to 16 (mono) audio channels

NDI® Format
• Support for up to 4096x2160 60fps 4:2:2 8-bit NDI encoding
• Send NDI streams across network segments
• Remotely control PTZ cameras via NDI
• Support for NDI 5.x

Features & Advantages
• Very low latency
• Advanced configuration and device status through intuitive Web GUI
• Tally lights and camera mounting for live production applications
• HTTP-based APIs for custom integration
• Provide Crestron Plugins
• Provide Q-SYS Control Plugins
