Maestro Ranger Overdrive Effects Pedal
Maestro - Ranger Overdrive Effects Pedal, Fully Analogue, True Bypass
Email me when the availability or price changes
Fully-Analogue Overdrive Pedal
Maestro - Ranger Overdrive

'Overdrive Inspired By Legendary Tube Amps'Inspired by the overdriven tones of some of the world’s most cherished vintage tube amps, the Ranger is a modern, all-analogue overdrive pedal featuring a Mode toggle switch that provides two different tonalities; a warm, expressive, amp-like overdrive and a second tonality that’s slightly cleaner and exceptionally touch-sensitive; it blends in some of the clean signal and is a great choice for use as an “always on” effect that can be controlled with your pick attack and your guitar’s volume control.

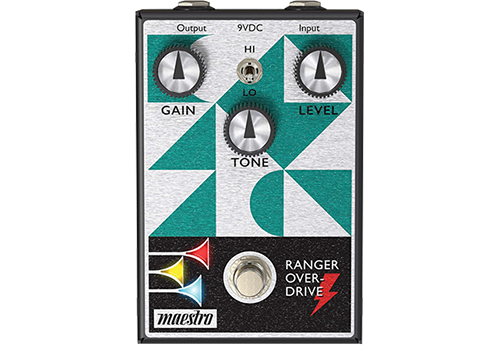

The Ranger’s classic 3-knob layout provides
intuitive adjustment of Gain (amount of overdrive), Tone, and output Level, with plenty of volume on tap to go well beyond unity gain. You can easily use the Ranger Overdrive as a boost to hit the input of your tube amp harder for even more grit and dirt. The true bypass footswitch triggers the LED lights in the bugles in the Maestro logo when it’s on, so you’ll always know when the effect is active.
at a glance
• Fully Analogue overdrive pedal
• Two different sound modes
• Controls: Gain, tone, level
• Switch: Lo/Hi
• True bypass
Maestro - Ranger Overdrive Demo

The Tech Spec
Features | Specification | Controls | Gain, Tone, Level |
---|---|
Switches | True Bypass footswitch, Hi/Lo Mode toggle switch |
Signal Processing | All-Analogue |
Power Requirement | 9V battery or regulated 9VDC power supply (5.5 x 2.1mm plug, wired centre-negative) |
Input Impedance | 1M ohms |
Output Impedance | 1K ohms |
Switching | True Bypass |
Dimensions (D x W x H) | 5.04” x 3.45” x 2.5” |
Weight | 500g |
