Maestro Discoverer Delay Effects Pedal
Maestro - Discoverer Delay Effects Pedal, Fully Analogue, True Bypass
Email me when the availability or price changes
Fully-Analogue Delay Pedal
Maestro - Discoverer Delay

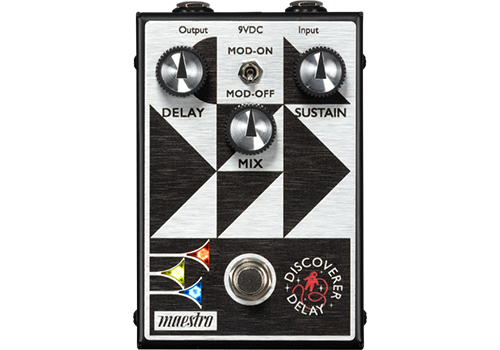

'Discover Your New Favorite Analogue Delay Pedal'The Maestro Discoverer Delay is a modern analogue delay pedal that proudly utilizes legendary analogue bucket brigade device (BBD) technology to deliver classic, warm, and inviting delay sounds. The intuitive 3-knob control layout lets users quickly dial up the length of the Delay time (with a range from 20 ms to 600 ms), the amount of Sustain (delay repeats), and adjust the level of the delays in the Mix.
A toggle switch engages built-in modulation that applies anything from a slightly saturated, tape-like wow and flutter effect to a heavily pitch-shifted modulation effect to the delayed signal. Two internal trim pots allow the user to adjust the Rate (speed) and Width (sweep range) of the modulation. The true bypass footswitch triggers the LED lights in the bugles in the Maestro logo when it’s on, so you’ll always know when the effect is active.
at a glance
• Fully Analogue delay pedal
• Warm, classic delay sounds
• Built-in modulation effect
• Controls: Delay, Mix, Sustain
• Switch: Mod on/off
• True bypass
Maestro - Discoverer Delay Demo

The Tech Spec
Features | Specification | Controls | Delay, Mix, Sustain |
---|---|
Switches | True Bypass footswitch, Mod On/Off Modulation Mode toggle switch |
Signal Processing | All-Analogue |
Power Requirement | 9V battery or regulated 9VDC power supply (5.5 x 2.1mm plug, wired centre-negative) |
Input Impedance | 470K ohms |
Output Impedance | 1K ohms |
Switching | True Bypass |
Dimensions (D x W x H) | 5.04” x 3.45” x 2.5” |
Weight | 590g |
