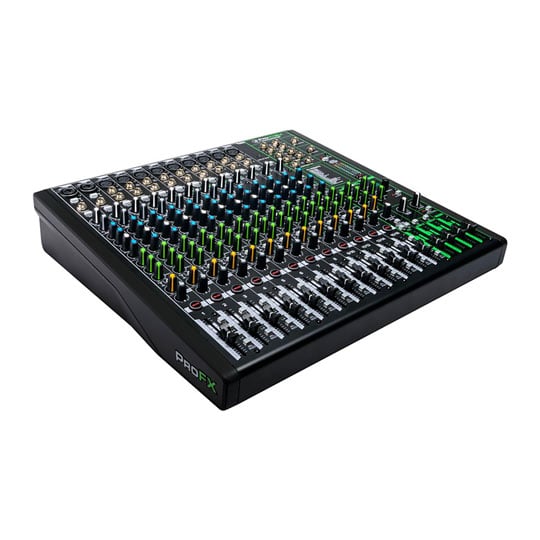

Mackie ProFX16v3 16 Channel Mixer

Product Overview The Mackie ProFX16v3 16-Channel Professional Effects Mixer with USB is the ultimate affordable solution for live sound, home recording, and content creators. Now with our renowned Onyx mic preamps that offer 60db of headroom, everything from gain hungry mics to guitars will sound better than ever, and you can keep it all in check with simple single-knob compression. The new GigFX™ effects engine offers 24 built-in FX for even more options for adding the finishing touch. Record your tracks in 24-Bit/192kHz quality with 2x4 USB I/O plus zero-latency hardware monitoring for easy overdubs. Both ProTools® | First and Waveform™ OEM recording software/plugin packages are included.

The Mackie ProFX16v3 Professional Effects Mixer with USB is the ultimate affordable solution for live, home recording, and content creators. Now with Onyx mic preamps that offer 60db of headroom, single-knob compression, and 24 built-in FX. Record your tracks in 24-Bit/192kHz quality with 2x4 USB I/O and zero-latency hardware monitoring. Both ProTools® | First and Waveform™ OEM recording software/plugin packages are included.

The Mackie ProFX16v3 features Onyx Mic Preamps, 192kHz 2x4 recording, 24 built-in FX, and simple single-knob compression with ProTools® | First and Waveform™ OEM recording software/plugin packages included.

Includes copy of Pro Tools First & Waveform OEM

Features •GigFX effects engine delivers 24 effects including reverbs, delays, and choruses
•11 Mackie Onyx mic preamps deliver clear signal and 60dB of gain
•Rugged design will stand up to the wear and tear of the road
•3 Band EQ and 100Hz low-cut filter on all channels
•Built-in channel compression
•48-volt phantom power on all mic channels
•24-bit/192kHz A/D for unmatched audio quality
•USB for playback music and recording into your computer
•Balanced XLR and balanced/unbalanced outputs
•Headphone output has separate volume control for comfortable monitoring

Specifications
•Type: Analog Mixer with USB Interface
•Channels: 16 (8 x mono, 4 x stereo)
•Computer Connectivity: USB (2 x 4)
•A/D Resolution: 24-bit/192kHz
•Faders: 16 x 60mm Faders
•Inputs - Mic Preamps: 2 x XLR-1/4" combo (mic/line/Hi-Z), 9 x XLR (mic)
•Phantom Power: Yes
•Inputs - Line: 6 x 1/4", 6 x 1/4" (3 x stereo), 1 x 1/8" (stereo)
•Outputs - Main: 2 x XLR, 2 x 1/4" (L/R), 2 x 1/4" (control room)
•Outputs - Other: 4 x 1/4" (subgroup out)
•Aux Sends: 1 x FX Send (post), 2 x Monitor Send (pre), 1 x Monitor Send (pre/post)
•Send/Return I/O: 1 x 1/4" (FX send), 3 x 1/4" (monitor send)
•Busses/Groups: 2 x Subgroup
•Inserts: 8 x 1/4" (channel)
•Headphones: 1 x 1/4"
•USB: 1 x Type B
•Other I/O: 1 x 1/4" (footswitch)
•EQ Bands: 3-band EQ with Variable Mid Frequency (mic channels), 100Hz Low-cut Filter
•Signal Processing: 8 x Channel Compressors
•Effects: GigFX Engine: Reverbs, Chorus, Delay, Flange, Auto-Wah
•Software: Pro Tools First, Waveform OEM DAW, Additional Plug-in packages available
•Power Source: Standard IEC AC cable
•Height: 4.4"
•Width: 17.1"
•Depth: 17.7"
•Weight: 15.2 lbs.
•Manufacturer Part Number: 2051302-00
