Mackie - '1202VLZ4' 12-Channel Compact Mixing Desk
Mackie - '1202VLZ4' 12-Channel Compact Analogue Mixing Desk, ONYX Preamps, Phantom Power, 3-Band EQ
- SCANPROTECT Protect against installation damage for 28 days. More info
12-Channel Compact Mixing Desk
Mackie - '1202VLZ4'
The Best of Its KindMackie continuously succeed when it comes to creating the perfect mixer. The VLZ4 series increases the level of sonic quality on every level, with Mackie's flagship Onyx mic preamps and premium components throughout, you get the most consistent, intuitive and best sounding compact mixer available.
Featuring Mackie's flagship Onyx mic preamps, the comprehensive Mackie VLZ4 range offers an incredible set of features, high-headroom/low-noise design and tough construction that started an industry over 25 years ago. From each input to every output, VLZ4 is designed to consistently deliver professional-quality results every time.
Amazing Features
• Improved RF rejection perfect for broadcast applications
• 4 balanced inserts perfect for integrating outboard gear
• 18 dB/oct 75Hz low-cut filter on mic input channels
• Phantom power for condenser mics
• 12 high-headroom line inputs
The Perfect Mixing Solution
Low Noise & High HeadroomStrict attention to component quality had led to innovations such as custom M80 op-amps and class-leading negative summing bus architecture.

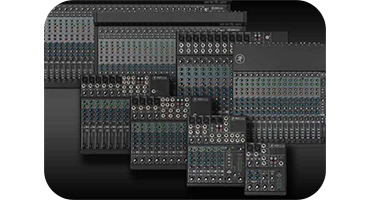

Comprehensive & ProvenThe VLZ4 range offers mixers with every channel count, price range and every application. From the compact 402VLZ4 to the tour ready 3202VLZ4, there is a mixer for every occasion.
Onyx PreampsWorld-Class ONYX preamps feature ultra-wide 60dB gain range, 128.5 dB dynamic range with +22 dBu line input handling and extended frequency response.
Built Like A TankMade from a robust steel enclosure with a powder-coat finish, sealed rotary controls and high-visibilty controls you'll be ready for any venue.

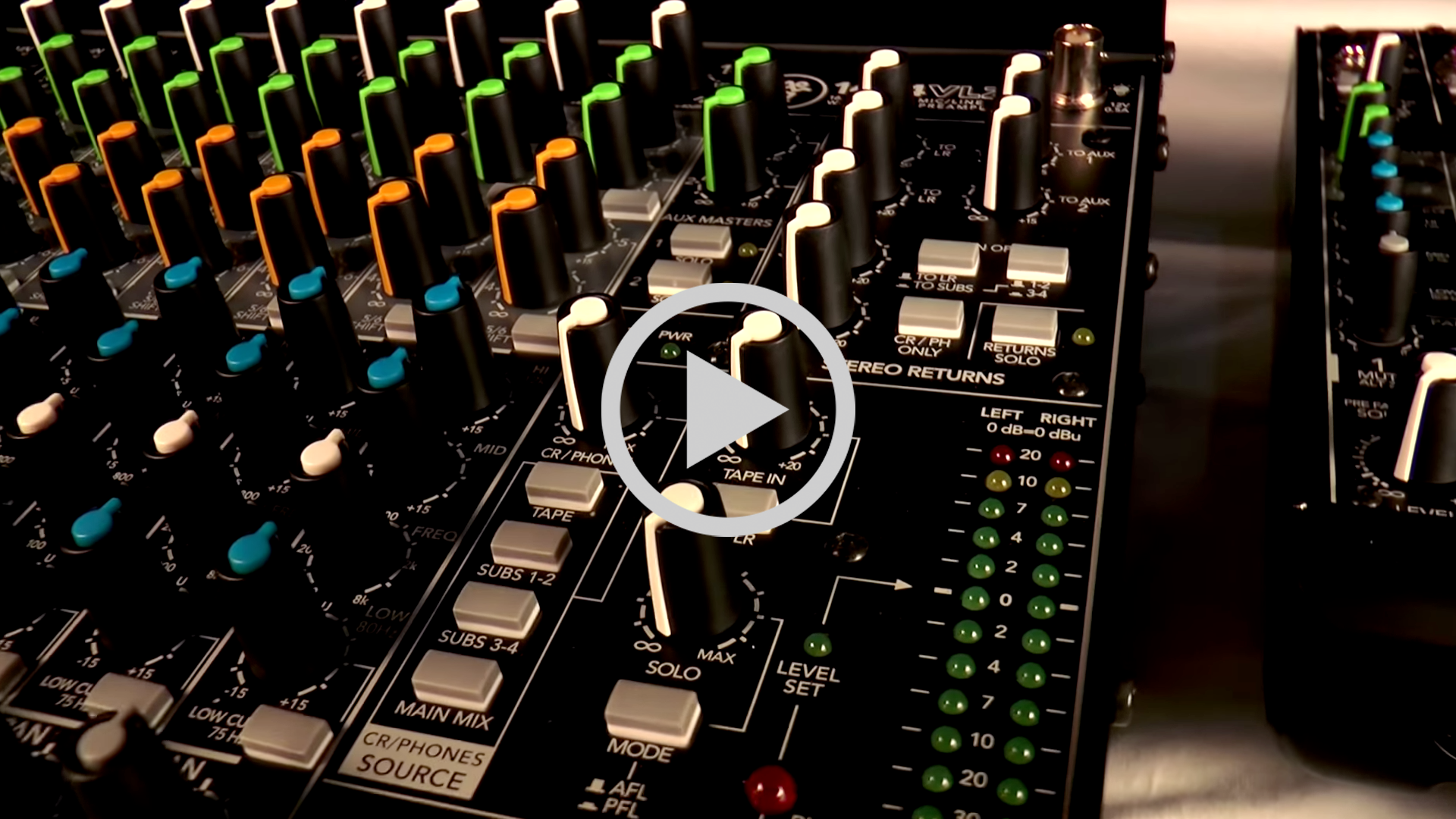

Mackie VLZ4 Series Compact Mixers - Series Overview
The Tech Spec
| Features | Specification | Type | Analog |
|---|---|
| Channels | 12 |
| Inputs - Mic Preamps | 4 x XLR (CH 1-4) |
| Phantom Power | 4 |
| Inputs - Line | 4 x 1/4" (CH 1-4), 8 x 1/4 (CH 5-12 Stereo), 2 x RCA (Tape) |

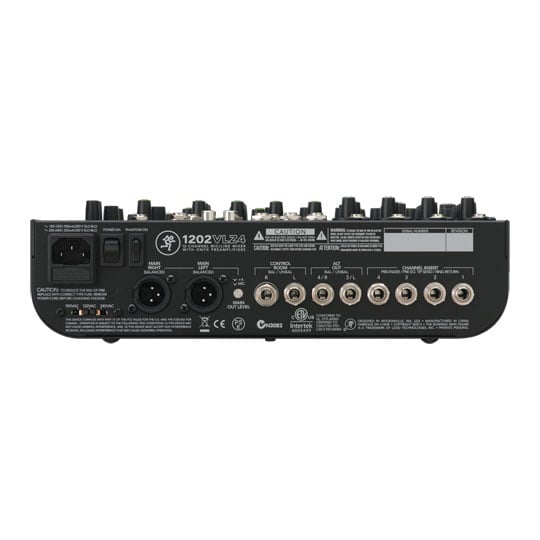

| Outputs - Main | 2 x XLR, 2 x 1/4" |
| Outputs - Other | 2 x RCA (Tape), 2 x 1/4" (Control Room), 1 x 1/4" (Alt) |
| Aux Sends | 1 x Pre/Post, 1 x Post |
| Send/Return I/O | 2 x 1/4" (Send), 4 x 1/4" (Return) |
| Busses/Groups | Alt 3-4 |
| Channel Inserts | Yes (CH 1-4) |
| Headphones | 1 x 1/4" |
| EQ Bands | 3-band |
| Rackmountable | Yes |
| Dimensions | Height: 3" Width: 11.9" Depth: 10.7" |
| Weight | 6.5 lbs. |
