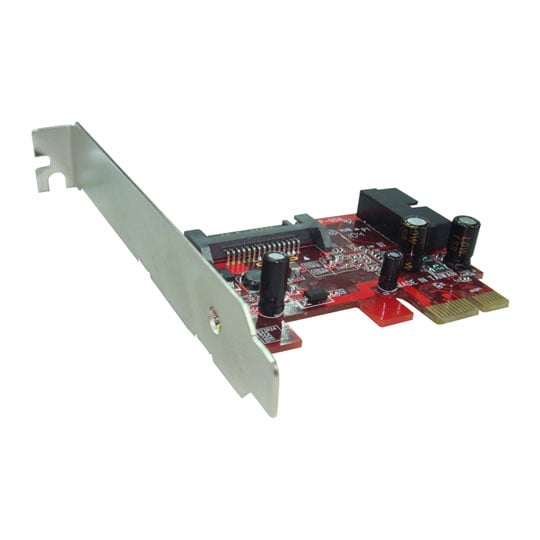

Intel eXtensible Host Controller Interface (xHCI) USB3.0 Internal connector on PCIe x1 Card

Lycom UB-114i 2 Port USB3.0 (NEC) xHCI Mobo Internal connector Via Low Profile PCIe x1 Card

Lycom
Scan code: LN40090 Manufacturer code: UB-114i Request call
£20.48
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
3xs Approved High End
Delivery options £5.48 By DPD On 6th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview USB 3.0 Internal Connector (USB3 ICC) 2Ports Low Profile PCIe Host Adapter (NEC chipset)

USB3 ICC Internal Connector 2Ports USB 3.0 SuperSpeed 5Gbps in one Low Profile PCIe Host Adapter to support all kind of 1.5Mbps, 12Mbps, 480Mbps and 5Gbps USB Devices!

• PCIe Gen 2 x1 Lane Host Adapter
• Compliant with Universal Serial Bus 3.0 Specification Revision 1.0
• Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification 0.95
• USB 3.0 Dual Port Internal Connector (USB3 ICC) on board
• All USB ports can handle SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transaction
• Support any USB3.0, USB2.0 and USB1.1 devices
• Compliant with PCI Express Specification 2.0
• Low Profile PCI Form Factor
• Includes an additional Low Profile PCI Bracket
• Built-in 15Pin SATA power connector for Max 1.5A 5V bus power one USB3.0 port from system power supply
• 64bit and 32bit Windows 7/8, Vista, XP drivers support
• Chipset: NEC
• Fully RoHS compliant

Features • PCIe Gen 2 x1 Lane Host Adapter
• Compliant with Universal Serial Bus 3.0 Specification Revision 1.0
• Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification 0.95
• USB 3.0 Dual Port Internal Connector (USB3 ICC) on board
• All USB ports can handle SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transaction
• Support any USB3.0, USB2.0 and USB1.1 devices
• Compliant with PCI Express Specification 2.0
• Low Profile PCI Form Factor
• Includes an additional Low Profile PCI Bracket
• Built-in 15Pin SATA power connector for Max 1.5A 5V bus power one USB3.0 port from system power supply
• 64bit and 32bit Windows 7/8, Vista, XP drivers support
• Chipset: NEC
• Fully RoHS compliant
Specifications
Specifications
Interface PCIe 2.0 (x1)
Internal Connectors 1 x USB 3.0 Header
External Connectors
Power Connector 1 x SATA Power
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
TekSpek Guides
USB 3.0
USB 3.0
Date Issued: 29th Jun 2010

USB 3.0, also known as SuperSpeed USB, is a buzzword you might have seen popping up repeatedly over the last 12 months or so. In this guide, we'll explain what it is, what it does, and what it could mean for you as the consumer.

Read More

PCI Express
PCI Express
Date Issued: 20th Oct 2008

A motherboard’s main job is to act as a conduit between the various hardware elements that make up a PC. It needs to be able to link the desired CPU(s), system memory, graphics card, hard drive(s), and add-in cards and enable them to work in harmony.

Read More

Reviews
Rated 4.8 out of 5 by 5 reviewers.
Rated 5 out of 5 by All you need if short of a 3.0 USB Pin Header All you need if short of a 3.0 USB Pin Header, Power input on the one I recieved was the 4 pin fdd type so you will need a Molex to 4 fdd or Molex to Sata 15 pin power cable. 02 March 2016
Rated 5 out of 5 by Fast and reliable on Linux This card is giving me sustained transfer rates of 70Mb/S onto external USB 3.0 drives (Seagate Expansion drives, formatted to ext4), transferring large files such as DVD iso images of 4Gb. The rate drops when lots of smaller files are involved, as you might expect. These rates are the same as when transferring to another drive on the internal SATA bus, or to an external SATA drive, so I suspect the rates I'm getting are the best my system can achieve. I'm running Debian 7.1 (Wheezy), but a modern kernal will have the drivers built in so other distros should have no problems. Having an issue just now with NTFS - but that's an NTFS issue, not an issue with the card. Happy! 07 April 2014
Rated 5 out of 5 by Value for money A fast and easy install no software required for W7 31 March 2014
Rated 4 out of 5 by fine for win7 slow on win8 owing to useless win8 drivers performs poorly,not the fault of the hardware superfast on windows 7 17 February 2014
Rated 5 out of 5 by Fast and easy upgrade I have a Gigabyte motherboard using a 1366 socket processor which is still faster than many newer parts, so the absence of USB3 was annoying. I have added in a x4 raid card, and this usb3 card for backup. The USB3 card seems fast and reliable, it is probably maxed out by the single PCI lane but it is so much faster than my onboard USB2 it makes no difference. Icy Box IB-366StU3+B External Enclosure for 3.5" SATA HDD to USB 3.0 Host *USAP + SATA 6Gb/s support* I use this enclosure and another 2.5 inch one. these are for backup and reading an external SSD video drive used to capture HDMI video raw. 02 September 2013
