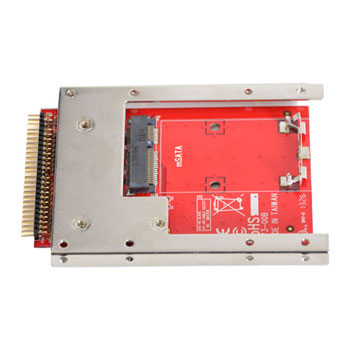

Lycom ST-173-7 mSATA SSD to 2.5" IDE SSD Drive Converter

Lycom ST-173-7 Covert mSATA SSD as High Speed 7mm 2.5" IDE SSD Drive

Lycom
Scan code: LN53593 Manufacturer code: ST-173-7 Request call
£13.99
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 12th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview Best Solution that Easily Latch and Retain Fast Speed mSATA SSD as a normally standard 7mm 2.5 inch IDE SSD Drive with High Performance, No Noise, Low Power support

Convert mSATA SSD as High Speed 7mm 2.5” IDE SSD Drive

• Convert Full Size mSATA SSD to 44Pin 2.5” High Performance, No Noise, Low Power IDE SSD
• Supports SATA I, SATA II and SATA III (6Gbps) mSATA SSD
• Latch type mSATA connector on board, no need the screw for the retention of mSATA SSD
• 100% Compatible with 2.5” IDE drive mechanical spec
• 48 bits LBA can Break Capacity-Limit to Support mSATA SSD max 144,115,188GB
• Compliant with Serial ATA 2.6
• Jumper setting support IDE Master, Slave and Cable Select Modes
• Tag Command Queuing (Max 32 entries)
• ATA/ATAPI PIO mode data transfer
• ATA/ATAPI UDMA data transfer rate of 150, 133, 100, 66, 44, 33, 25, 16.7 MB/s
• ATA/ATAPI-7 Streaming feature set
• Transparent to the operating system and no driver required
• Supports any OS like Windows, Mac and Linux
• Includes 7mm height 2.5 “ drive metal frame with 8 mounting holes and 4 HDD screws
• Dimension of PCBA with 2.5” frame : 98mm x 69.85mm x 7mm
• Fully RoHS compliant Features • Convert Full Size mSATA SSD to 44Pin 2.5” High Performance, No Noise, Low Power IDE SSD
• Supports SATA I, SATA II and SATA III (6Gbps) mSATA SSD
• Latch type mSATA connector on board, no need the screw for the retention of mSATA SSD
• 100% Compatible with 2.5” IDE drive mechanical spec
• 48 bits LBA can Break Capacity-Limit to Support mSATA SSD max 144,115,188GB
• Compliant with Serial ATA 2.6
• Jumper setting support IDE Master, Slave and Cable Select Modes
• Tag Command Queuing (Max 32 entries)
• ATA/ATAPI PIO mode data transfer
• ATA/ATAPI UDMA data transfer rate of 150, 133, 100, 66, 44, 33, 25, 16.7 MB/s
• ATA/ATAPI-7 Streaming feature set
• Transparent to the operating system and no driver required
• Supports any OS like Windows, Mac and Linux
• Includes 7mm height 2.5 “ drive metal frame with 8 mounting holes and 4 HDD screws
• Dimension of PCBA with 2.5” frame : 98mm x 69.85mm x 7mm
• Fully RoHS compliant
Specifications
Specifications
Capacity
Edition -
Form Factor
Height
Interface
Host Controller Interface
Controller
Flash Memory Type None
Max. Read
Max. Write
DRAM Cache Memory N/A
DRAM Cache Memory Type
Max. Random Read 4K
Max. Random Write 4K
Latency N/A
Special Features
Power Consumption (active)
Max. Endurance Rating
MTBF
Max. Operating Vibration
Max. Non-operating Vibration
Max. Operating Shock
Max. Non-operating Shock
Connectivity
OS Support
Bracket N/A
Package Type
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
1 months
Manufacturer Contact Details
Manufacturer:
SCAN
Reviews
Rated 4.9 out of 5 by 7 reviewers.
Rated 5 out of 5 by Perfect upgrade for an old Gateway Laptop MX8550GB Previously fitted with a 250GB WD2500BEVE EIDE drive which eventually crashed with hard errors. Not worth saving the laptop without a larger drive but no prospect of a larger PATA drive. Googling and some lateral thinking revealed this Lycom adapter on the Scan site so with some trepidation I paired it with a 500GB Crucial MX200, Internal mSATA SSD and took the plunge. It took seconds to fit the SSD to the adaptor and plug the adaptor in place of the original 44 pin EIDE drive. The laptop has successfully run for a month now, still on WinXP SP3 and noticeably faster than with the mechanical disc. No problems whatever, and the wife's thrilled with her rejuvenated laptop on steroids ;-) Perfect upgrade. Scan's order processing plus status emails were impeccable BTW. 30 April 2016
Rated 5 out of 5 by Ideal to upgrade an old laptop to SSD This gadget is just what you need to upgrade an old laptop to SSD. Just add an mSATA ssd, to it, and fit it back in the laptop where the old mechanical hard drive was. You won't get the high sustained data transfer rates that SSDs are normally capable of, but you will still get blazing fast random access times, and high IOPs, so your laptop will feel much more snappy. Also as you can now get mSATA SSDs in much larger sizes than PATA 2.5 inch mechanical hard drives, you can get a capacity increase as well. One gotcha to be aware of, is the master/slave jumper. If you put this in a USB enclosure to copy your files, then make sure the jumper is removed, as otherwise your enclosure might not recognise the drive. Mine did not, and I thought it was faulty until I realised. 23 April 2016
Rated 5 out of 5 by An elegant solution to replace an ide hard drive I used this device in a 2004 Dell inspiron 5150 which was showing signs of imminent failure, ie loads of clicking noises. As i quickly found out 2.5 ide laptop drives are very hard to find new. I incorporated a 60 gigabite Msata ssd with the Lycom and now have a quiet fast laptop. Its just as shame the ide interface limits the ssd max speed. 03 March 2016
Rated 5 out of 5 by Exactly whatI I needed The Scan website is very easy to navigate and search. It's extensive in the components it stocks and descriptions are good. Thanks 08 January 2016
Rated 5 out of 5 by Ideal for laptop upgrade I used this with an mSATA drive. All worked faultlessly. The laptop is silent apart from when the fan kicks in (less frequently than previously) and there is an increase in speed. 24 August 2015
Rated 5 out of 5 by New life for old laptop Used in: Dell Latitude D600, Pentuim M 1.7 GHz, 2GB RAM. The number of bad blocks on my laptop's current hard drive started to grow. I thought of a replacement - and found out that nobody is producing 2.5" IDE HDDs any more, they are all SATA nowadays. IDE to SATA converters take space, excluding their use in 2.5" slot. This converter is a real solution to this problem. Get an mSATA SSD, put it in, change your old HDD with this construction - and your laptop is working again. One thing to remember is trim command for your SSD. WinXP doesn't have it, so you'll need to upgrade to Win7 (tried Ubuntu, but it doesn't have a proper driver for my video card (ATI Mobility Radeon 9000)). And once upgraded to Win7, install the optional update http://support.microsoft.com/kb/982018. Without it, the laptop hangs on resume from sleep (hibernate is OK, but I wouldn't recommend hibernating to SSD). Overall - excellent upgrade! My laptop's life is prolonged for at least two years. Win7 boot time is now around 50-60 seconds, shutdown/hibernate/hibernate-resume is around 10 seconds. It doesn't really matter which mSATA SSD you will use with this adapter (I've used SanDisk X110 128GB), as the speed of modern SSDs is 3-5 times higher than the maximum speed of IDE interface. 20 February 2015
Rated 4 out of 5 by New lease of life for old laptop. Bought this item after seeing a topic about a T43 on a Thinkpad forum. Assumed it would also work with an X31, and can now confirm that it does. Makes it easy to replace an old IDE spinning disk and provides a noticeable speed boost. 08 June 2014
  • 2016-05-20 T12:52:43.571-05:00
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasreviews, tv_7, tr_7
  • loc_en_US, sid_53593, prod, sort_default
1-7 of 7
Questions & Answers
(1 Question : 2 Answers)

Product Q&A

Ask your questions. Share your answers.



« Back


In the description three maximum sizes are mentioned, 188gb being the largest and a 48bit LBA also mentioned which implies drives which can be terabytes in size. I would like to consider using this adapter with a 256gb Msata drive. Will it work with a 256gb drive or is 128gb the largest suitable?
Age: 45 to 54
Gender: Male
3 months, 1 week ago
Customer avatar
by
The Hague, Netherlands
Read all my Q&A

Please wait while more information about Mikei is loaded.
Additional information about Mikei could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers

Answer:
I put a 500 Gb Crucial drive in mine without problems, though you might have issues from your motherboard chipset, or your OS.
Age: 35 to 44
Gender: Male
3 weeks, 6 days ago
Customer avatar
by
Reading, UK
Read all my Q&A

Please wait while more information about chrestomanci is loaded.
Additional information about chrestomanci could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
I'm running this adaptor with a 500GB Crucial MX200 SSD plugged in on an old Gateway Laptop with WinXP SP3 and all 500GB is available with no hiccups. Hope that helps...
Age: 65 or over
Gender: Male
2 weeks, 6 days ago
Customer avatar
by
Read all my Q&A

Please wait while more information about GrouchoBee is loaded.
Additional information about GrouchoBee could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
