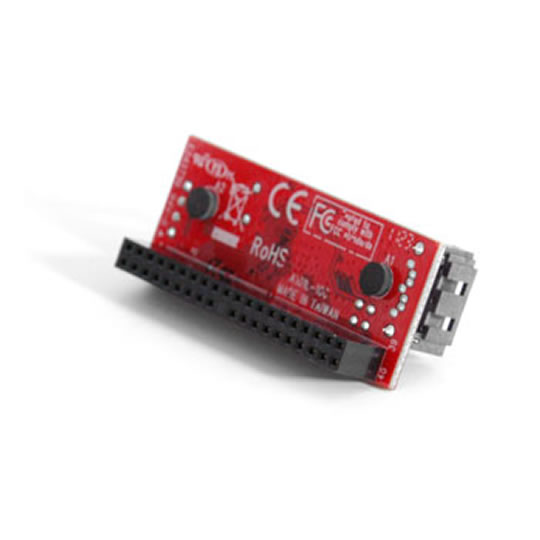

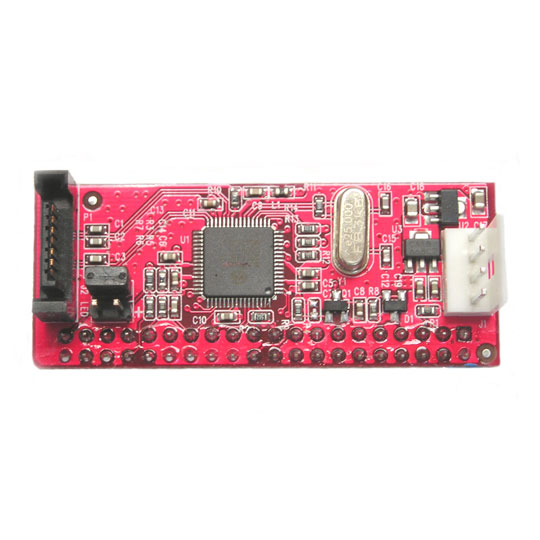

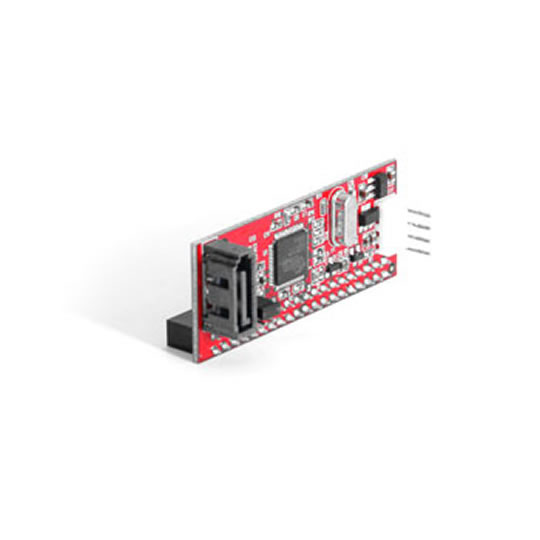

Lycom ST-101L Mini Vertical Converter Board - IDE Device to SATA ALL IDE Types Inc HDD/DVD-ROM

Thumbnail 1 : Convert Any IDE Device to SATA - Mini Converter Internal with power cable Thumbnail 2 : Convert Any IDE Device to SATA - Mini Converter Internal with power cable Thumbnail 3 : Convert Any IDE Device to SATA - Mini Converter Internal with power cable Thumbnail 4 : Convert Any IDE Device to SATA - Mini Converter Internal with power cable
Scan code: LN24964 Manufacturer code: ST-101L
End Of Life This product is no longer available to purchase
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Mini Vertical Converter Board for IDE Device to SATA MotherBoard

IDE Device --- > Serial ATA Device !

ALL EIDE Type DVD / DVD-RAM / CD-ROM / CD-RW / HDD Become New Serial ATA Devices!

Attaches this Mini Dangle board to the back of all types of ATAPI, ATA/133, ATA/100, ATA/66, ATA/33, EIDE and IDE storage devices (such as Hard Disk, DVD, DVD-RAM, CD-ROM, CD-RW, MO, ….) and make them become new Serial ATA Devices and meet SATA standard.
This Bridge board can support HDD larger than 137GB.

Installation
Step 0. Make SURE your Computer is in a Power OFF State - Do NOT plug in this device if your system is powered up.
Step 1. Set the jumper of IDE device to MASTER MODE

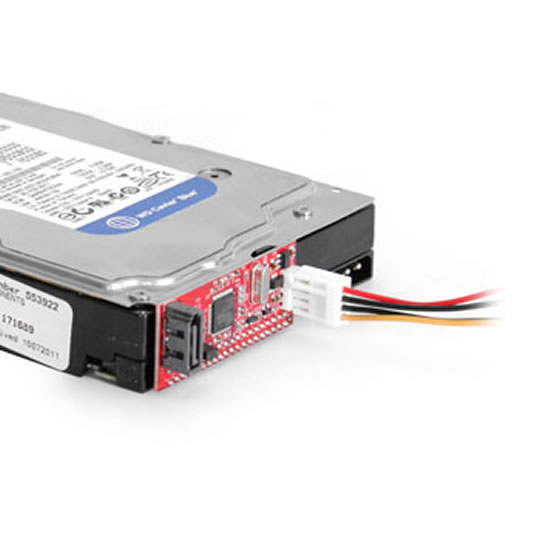

Step 2. attach the Lycom ST-101L to the back of the IDE Device
Step 3. Connect Y-Type Power Cable to Lycom ST-101 J1 Pin and a Molex Power Connector from the PSU
Step 4. Connect SATA Cable to Lycom ST-101 SATA Port and Avilable SATA port on your SATA Controller Card/Motherboard
Step 5. If available Connect the 2 pin L.E.D indicator Cable from your CASE to the 2 Pin LED Header on the Lycom ST-101L
Step 6. Once ALL cables are plugged in then Power up your machine and enjoy your IDE device running on your SATA port

This device must not be attached to a IDE device that is allready powered on
Note recommend for IDE racks as this device is not hotswap compatable
If your DVD Drive is not working please Remove Jumper from pins J2 on the Lycom ST-101 Features * Can Attaches to any type of ATAPI, ATA/133, ATA/100, ATA/66, ATA/33, EIDE and IDE storage devices (DVD, DVD-RAM, MO, CD-ROM, CD-RW, Hard Disk, ….)
* 48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB
* Mini Board size (59mm x 25mm), No space wasted
* Compliant with Serial ATA 1.0a specifications and High transfer rate of 1.5Gbps
* Supports Spread Spectrum in receiver
* Compliant with ATA specifications
* Compatible with Ultra ATA 133
* Automatically decode the ATAPI command to know the UDMA direction
* 100% hardware bridge converter board to support PC, MAC and Linux environment
* Fully RoHS Compliant
