Lycom Pi-100 Raspberry Pi USB to Compact Flash Converter Board
Scan code: LN64786
Manufacturer code: Pi-100
End Of Life
Lycom Pi-100 Raspberry Pi USB to Compact Flash Converter Board
Lycom Pi-100 USB 2.0 to CF Card Converter Board, USB Micro-B/USB 5pin, CompactFlash, IBM Microdrive for Raspberry Pi
Scan code:
LN64786
Manufacturer code:
Pi-100
This product is no longer available to purchase.
Email me when the availability or price changes
Product Overview
Easy to install and allows you to connect a Compact Flash Drive to your Raspberry Pi.
Features
• Connect Raspberry Pi USB to CF storage device
• Support CompactFlashTM cards (Type I & Type II) or a IBM MicrodriveTM
• Support CompactFlash spec up to Ver 6.0 Ultra DMA mode
• Compliant with Universal Serial Bus Specification Revision 2.0 (Data Rate 1.5/12/480 Mbps)
• Compliant with Open Host Controller Interface Specification for USB Rev 1.0a
• Compliant with Enhanced Host Controller Interface Specification for USB Rev 0.95
• Both USB micro-B connector and USB 5Pin Pinheader on board for Pi connection
• Jumper selection either power wafer of external 5V sufficient power or 5V USB bus power to CF & PCBA
• On board activity LED for CF access
• Fully RoHS compliant
• Support CompactFlashTM cards (Type I & Type II) or a IBM MicrodriveTM
• Support CompactFlash spec up to Ver 6.0 Ultra DMA mode
• Compliant with Universal Serial Bus Specification Revision 2.0 (Data Rate 1.5/12/480 Mbps)
• Compliant with Open Host Controller Interface Specification for USB Rev 1.0a
• Compliant with Enhanced Host Controller Interface Specification for USB Rev 0.95
• Both USB micro-B connector and USB 5Pin Pinheader on board for Pi connection
• Jumper selection either power wafer of external 5V sufficient power or 5V USB bus power to CF & PCBA
• On board activity LED for CF access
• Fully RoHS compliant

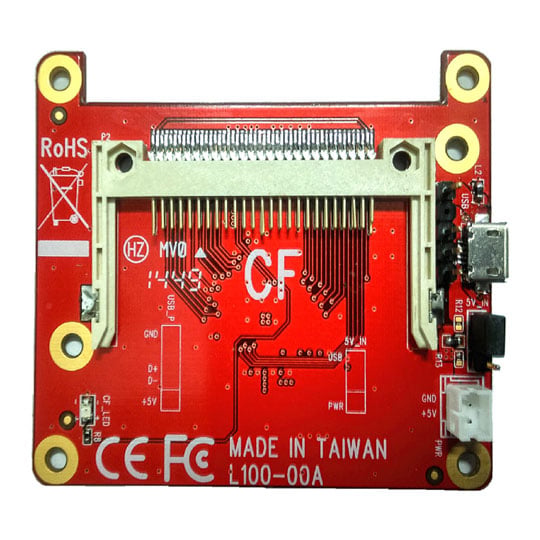

Lycom Pi-100 Raspberry Pi USB to Compact Flash Converter Board
![Lycom Pi-100 Raspberry Pi USB to Compact Flash Converter Board]()
