Lycom PE-150B M.2 B Key to PCIe Adapter
Scan code: LN95214
Manufacturer code: PE-150B
End Of Life
Lycom PE-150B M.2 B Key to PCIe Adapter
Lycom PE-150B M.2 B Key to PCIe Adapter for 3G 4G WWAN M.2 Module
Scan code:
LN95214
Manufacturer code:
PE-150B
This product is no longer available to purchase.
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
Product Overview
• PCIe x1Lane Host Adapter.
• PCIe x1 & USB3.0 & USB2.0 signal interface from main board to M.2 B Key socket.
• M.2 NGFF type 2242-D3-B B Key socket on board.
• Support M.2 B Key and B-M Key Module, such as WWAN (2G, 3G, 4G), WCDMA/HSP/HSPA+/EDGE/GPRS/GSM/GPS/LTE/GNSS Module, M.2 PCIe Host Module.
• Multiple plated-holes support M.2 type 2230 / 2242 / 3030 / 3042 module.
• USB3.0 & USB2.0 signals from main board USB3.0 port via USB micro-B connector.
• USB2.0 signals from main board USB port via USB 5Pin PinHeader.
• WWAN micro-SIM card holder on board.
• Low Profile PCIe Form Factor.
• Regular size PCIe bracket on board and Low Profile bracket included.
• 100% OS-transparent hardware bridge converter to support Windows, MAC and Linux.
• Supports operating temperature range: -40 - 80 ºC.
• RoHS compliant.
SD3.0 (PCIe) to PCIe Converter Adapter
Utilise up to 2TB SD 3.0 (SDXC) memory card to embedded motherboard PCIe socket via fast PCIe signals!
• PCIe x1 & USB3.0 & USB2.0 signal interface from main board to M.2 B Key socket.
• M.2 NGFF type 2242-D3-B B Key socket on board.
• Support M.2 B Key and B-M Key Module, such as WWAN (2G, 3G, 4G), WCDMA/HSP/HSPA+/EDGE/GPRS/GSM/GPS/LTE/GNSS Module, M.2 PCIe Host Module.
• Multiple plated-holes support M.2 type 2230 / 2242 / 3030 / 3042 module.
• USB3.0 & USB2.0 signals from main board USB3.0 port via USB micro-B connector.
• USB2.0 signals from main board USB port via USB 5Pin PinHeader.
• WWAN micro-SIM card holder on board.
• Low Profile PCIe Form Factor.
• Regular size PCIe bracket on board and Low Profile bracket included.
• 100% OS-transparent hardware bridge converter to support Windows, MAC and Linux.
• Supports operating temperature range: -40 - 80 ºC.
• RoHS compliant.

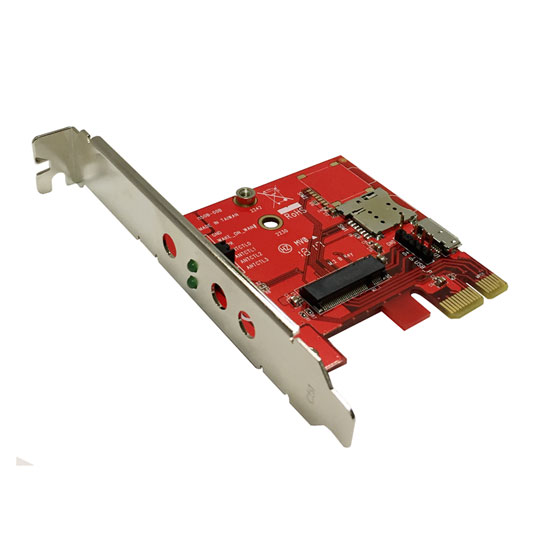

Lycom PE-150B M.2 B Key to PCIe Adapter
![Lycom PE-150B M.2 B Key to PCIe Adapter]()
