60mm M.2 SATA SSD to 1.8” SATA Adapter/Converter Board
End Of Life
60mm M.2 SATA SSD to 1.8” SATA Adapter/Converter Board
Scan code: LN65088 Manufacturer code: DT-126
End Of Life
  • Thumbnail 1 : 60mm M.2 SATA SSD to 1.8” SATA Adapter/Converter Board
End Of Life

60mm M.2 SATA SSD to 1.8” SATA Adapter/Converter Board

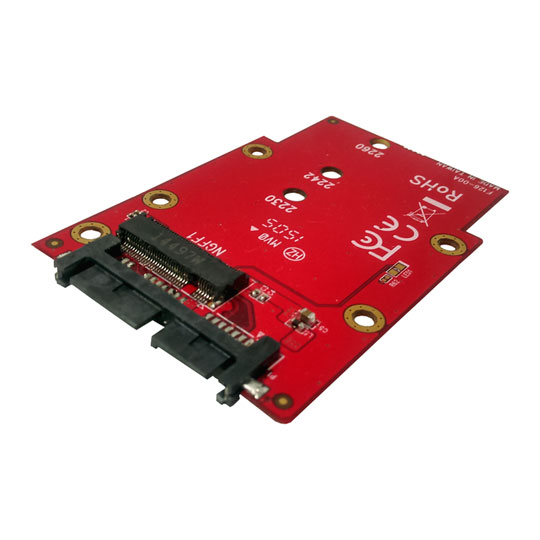

Lycom DT-126, 2260 M.2 SSD to 1.8" SATA Form Factor Converter Board, Supports SATA 6Gbps/3Gbps, 60/42/30mm M.2 SSDs
MORE INFO
MORE INFO

Scan code: LN65088 Manufacturer code: DT-126
End of life
This product is no longer available to purchase.

Email me when the availability or price changes

  • SCANPROTECT Protect against installation damage for 28 days.
Product Overview

M.2 to SATA

The Best Solution that Converts Fast Speed M.2 NGFF 6Gbps SATA based SSDs to Standard 3.3V 1.8-inch 16Pin SATA Solid State Drive Form Factor.

Features
• Convert 3.3V M.2 NGFF SATA based SSD to standard 3.3V 1.8” SATA drive Form Factor.
• Supports 6Gbps, 3Gbps SATA based M.2 NGFF 60mm, 42mm, 30mm SSD.
• M.2 NGFF type 2260-D5-B connector on board.
• Movable M.2 NGFF stand-off and multiple plated-holes supports type 2260, 2242 and 2230 SSD.
• Supports dual-sided SSD module 1.5mm component height on the top and bottom side.
• 16Pin micro SATA (Signals and Power) male connector on board.
• M.2 NGFF SATA SSD can be the primary bootable device containing the OS and application.
• Operating system independent and no driver required.
• Supports any OS like Windows, Mac and Linux.
• Supports industrial operating temperature range: -40 - 85 ºC.
• Fully RoHS compliant.
