Lycom DT-122 M.2 SATA SSD to PCIe HHHL Adaptor
End Of Life
Lycom DT-122 M.2 SATA SSD to PCIe HHHL Adaptor
Scan code: LN64462 Manufacturer code: DT-122
End Of Life

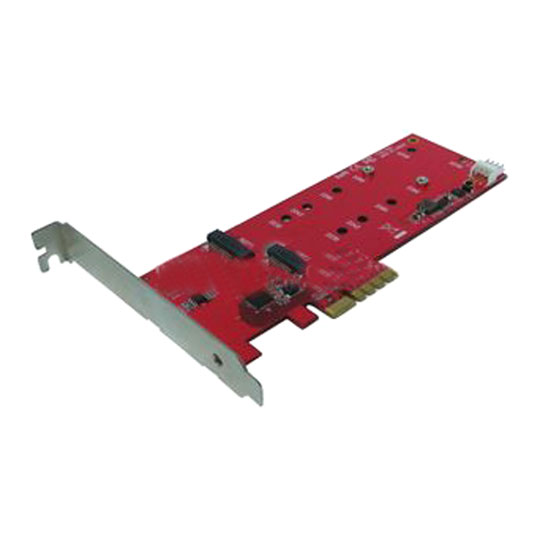

  • Thumbnail 1 : Lycom DT-122 M.2 SATA SSD to PCIe HHHL Adaptor
End Of Life

Lycom DT-122 M.2 SATA SSD to PCIe HHHL Adaptor

Lycom DT-122 2x 110mm M.2 SATA SSD Low Profile PCIe 2.0 Host Adapter, HHHL, PCI 2.0 x4 (x2 Lane) 10Gbps, SATA III 6Gbps
MORE INFO
MORE INFO

Scan code: LN64462 Manufacturer code: DT-122
End of life
This product is no longer available to purchase.

Email me when the availability or price changes

  • SCANPROTECT Protect against installation damage for 28 days.
Product Overview

M.2 SATA SSD to PCIe HHHL Adaptor

Easy Install and utilise 2x 110mm M.2 NGFF SATA Based SSD modules in Low Profile PCIe 2.0 6Gbps AHCI SATA III host board.

Features
• 6Gbps SATA III PCIe Gen2 electrical x2 Lane and physical x4 Lane Host Adapter.
• 2Ports M.2 NGFF type 22110-D5-B sockets on board for SATA based SSD.
• Supports PCIe 1.0 and PCIe 2.0 motherboard.
• Compliant with 10Gbps PCI Express 2.0.
• Fully compliant with Serial ATA specifications 3.0.
• Supports SATA III transfer rate of 6.0Gbps, 3.0Gbps, 1.5Gbps.
• Supports 6Gbps, 3Gbps SATA based M.2 NGFF 110mm, 80mm, 60mm, 42mm, 30mm SSD.
• Movable M.2 NGFF stand-off and multiple plated-holes supports type 22110, 2280, 2260, 2242 and 2230 SSD.
• Supports dual-sided SSD module 1.5mm component height on the top and bottom side.
• Supports Native Command Queuing (NCQ).
• PCBA powered by PCIe bus 3.3V.
• Provides 3.3V/5A power to two M.2 devices from Motherboard PCIe slot 12V directly, or from PC power supply if 4Pin small Molex Power connector 12V connected.
• Low Profile PCIe Form Factor.
• Regular size PCIe bracket on board and Low Profile bracket included.
• Require an empty PCIe x4 or x8 or x16 slot in computer.
• 64bit / 32bit Windows 8.1, Win8, Win7, Vista, 2008, 2012, Linux and Mac 10.x OS built-in AHCI inbox driver support, no additional driver required.
• BIOS on board to support Windows and Linux OS booting.
• Fully RoHS compliant.
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan Computers International Limited
Telephone:
01204-474747
Buying Guide
Need help? Read our Internal Storage Buying Guide
SSD Form Factors
SSD Form Factors
Date Issued: 27th Nov 2017

The arrival of the solid-state drive (SSD) has revolutionised the speed at which modern PCs perform common tasks. This is because SSDs have no moving parts, compared to larger, bulkier mechanical drives, thus they store information on memory chips. This means that accesses, reads and writes are many, many times faster

Read More

Compatability

Does this Adapter accept the Samsung M.2 850 EVO 250GB SATA SSD Solid State Drive Scan Code: LN63328 Manuf Code:MZ-N5E250BW
Asked by: GazB
Hello, Yes this does support the 850 EVO. Thanks,
Answered by: LizN
Date published: 2016-03-06
