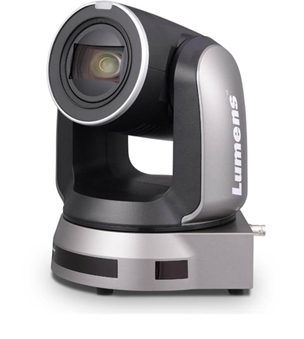

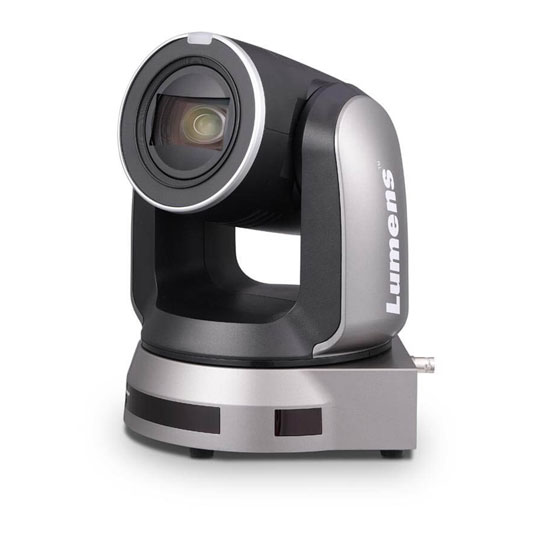

Ultra HD PTZ Camera
Lumens - 'VC-A71P'
ideal for lecture recording & video conferencesThe VC-A71P 4K Ultra HD PTZ camera from Lumens sports a pro 1/1.8-type progressive scan CMOS sensor with a staggering 8MP output resolution that brings a spectacularly clear and vivid live image to the forefront. The unparalleled 30x optical zoom lens, breathtaking white balance and exposidre mode gives a crystal-clear image even in the lowest of light or the extreme contrast of brightness and darkness in a conference room. The camera covers wide shooting angles and attains high-speed, quiet and precise positioning with smooth PTZ operations.

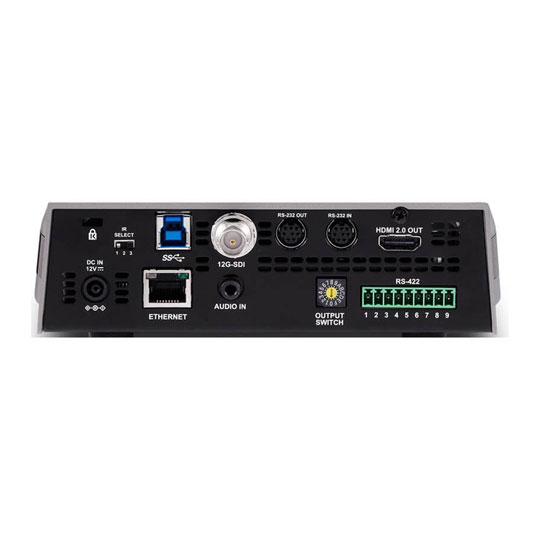

The VC-A71P UHD PTZ camera has Ethernet, HDMI 2.0, 12G SDI and USB3.0 outputs. It supports live broadcasting with H.264 / H.265 format with low latency. The VC-A71P is the ideal solution for lecture recording, videoconferencing, and live broadcasting applications.
USB 3.0Image Output
60 fps4k UHD
30xOptical Zoom
At a Glance
Ultra HD PTZ Camera with 4K UHD 60fps and 1080P 60fps Packed with unmatched and unparalleled technology and components, the VC-A71P from Lumens is the perfect match for capturing your lectures or conferences.
Built-in Tally LightThe advanced AF/AE/AWB algorithm and circuit design ensures a pristine image during the pan, tilt, zoom and capture function.
Image QualityEquipped with a professional image sensor with 4K UHD 60 fps and Full HD 1080p 60fps output resolution providing high color reproduction, high definition, and a crystal-clear image.
Ethernet InterfaceThe VC-A71P supports H.264, H.265 video compression format that can reduce the bandwidth for transmitting video. This technology can decrease hard disk space when recording.
Advanced Image ProcessingThe VC-A71P built-in tally Angle light. The LED lights turn on when the camera is in operation. This is an essential function for a broadcast studio or any applications with more than two PTZ cameras.
Panoramic Viewing AngleThe VC-A71P has a panoramic 63° horizontal field of view that helps users achieve a wider viewing area.
Easy InstallationPowered by PoE++ (Power over Ethernet) allowing a cost effective and simple installation.
The Tech Spec
| Features | Specification |
|---|---|
| Sensor | 1/1.8" 8MP CMOS |
| Video Format | Resultion : 4K/1080p/720p Frame Rate : 59.94/50/29.97/25 |
| Video Output (HD) Interface | 12G-SDI, HDMI2.0,Ethernet,USB3.0 |
| Optical Zoom | 30x |
| Horizontal Viewing Angle | 63° |
| Panning Angle | +170 ~ 170° |
| Panning Speed | 300°/sec |
| Tilting Angle | +90 ~ -30° |
| Tilting Speed | 300°/sec |
| Aperture | F1.55 ~ F4.8 |
| Focal Length | 6.5mm ~ 202mm |
| Shutter Speed | 1/1 ~ 1/10,000 sec |
| Minimum Object Distance | 1.5m (Wide/Tele) |
| Video S/N Ratio | > 50dB |
| Minimum Illumination | 1.0 lux (F1.5, 50IRE, 30fps) |
| Focus System | Auto, Manual |
| Gain Control | Auto, manual |
| Exposure Control | Auto, manual |
