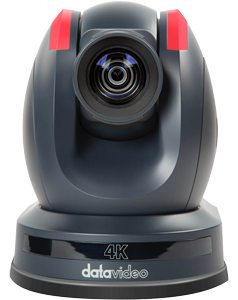

Datavideo - 'PTC-305T 4K Tracking HDBaseT PTZ Camera'
4K Auto Tracking PTZ with HDBaseTThe Datavideo PTC-305T is a high performance, 4K50/60p auto tracking PTZ camera perfect for when your live production depends on high performance cameras and camera controllers. Easily controlled with RS-422 serial port, or IP remote control via DVIP or Sony VISCA over IP.
The PTC-305 series cameras support dual output streaming, ideal for A/V market applications and makes streaming to platforms like Facebook (RTMPS), YouTube and dvCloud. This HDBaseT version allows for a single CAT-6 cable to transfer video, control, power and tally.
HDBaseT Connectivity
One Cable SolutionHDBaseT allows you to transmit power, HD video, control, and tally over a single Ethernet cable.
AI Auto Tracking
Quick Access to Camera's Auto trackingYou will be granted direct access to Auto Tracking via various external controllers such as the supplied RMC-1AT PTZ remote controller and RMC-300A DVIP controller, PTC View Assist App, and the TPC-700, etc. You can choose a suitable controller according to your needs.
In addition to camera controllers, you can also easily enable Auto Tracking on switchers, including iCAST mini, KMU-200/300, SHOWCAST 100, etc.
Custom Auto Object trackingIf you are filming multiple people, you can designate a person for auto tracking. Once linked to the camera, only the designated person will be tracked, avoiding interferences such as the desks, people coming back and forth, large objects, etc.
Smart PTZ Speed AdaptionThe integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera's corresponding pan, tilt and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or unpredicted halts.
Talent Position Tracking
Center/Left/Right SideThe positioning of talent depends on the videographer's creativity and intent rather than strict rules. Different positions can convey various emotions, messages, or visual effects. A centered composition provides a sense of stability and balance, suitable for scenes that require highlighting the main subject. Videographers may also place the talent on the left third or right third of the frame, leaving adequate space in the foreground to showcase the talent's sight direction or potential future possibilities.
Quick Selection of Full Body / Half Body / Close-upAll of the PTC-305 camera series include RMC-1AT controller. User can quickly select full-body, half-body and close up framing, making it easy to change the shooting scene and framing requirements.
Included IR Remote
Enable Auto Tracking with your IR remoteRMC-1AT PTZ Controller. All you need is a remote control to set and control all four cameras and save the four presets.
Easy to Use Web UI
Remote Control and Preview by Web UIThe web user interface provides preview, pan-tilt-zoom control and configurations setting in IP mode.
4K 60 Video
Broadcast Quality 4K resolutionWith built-in 1/1.8" CMOS sensor, supports resolution up to 2160p 50/60.
20x Optical Zoom - 16x Digital Zoom
Superior Optical performanceThe PTC-305T camera has 20x Optical Zoom and 16x Digital Zoom with the f1.58 wide open aperture.
Advanced Noise Reduction
Low Noise in low lightAdvanced 3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.
HDMI 2.0, 3G-SDI and IP Output
Multiple Simultaneous Video OutputsSupports simultaneous HDMI 2.0 and IP output up to 2160p 50/60 and also 3G-SDI output up to 1080p60/50.
Advanced Noise Reduction
Multiple Network Protocol with Dual stream functionSupport RTSP and RTMPS protocols, easy to stream directly to two different CDN platforms and Datavideo dvCloud as well.
H.264/265 Compression Support
Supports H.264/H.265 Video CompressionSupport compression of resolution up to 3840x2160 with frame up to 59.94, 60fps and the second channel 720x480p compression. AAC, MP3 and PCM audio compression also supported.
PoE IEEE 802.3at Support
Power Over EthernetThe PTC-305T supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT-6 cable to power your PTC-305T.
Built-in Tally Lights
Tally LightGreen and red lights tally to show the preview and program status for broadcast applications.
Wide Range of Compatible Controllers
Compatible with various controllersControl real-time pan, tilt, and zoom camera movements with Datavideo SHOWCAST 100, PTZ View Assist APP, RMC-300A and RMC-180. With configurable preset positions supported.
VISCA Control Compatible
RS-422, DVIP and Ethernet Camera ControlRS-422 and ethernet to use DVIP or VISCA over IP commands to integrate with larger control systems.
ONVIF Profile S Compliant
Compliant with the ONVIF Profile S StandardThe PTC-305 series cameras are compliant with the ONVIF Profile S standard, ensuring seamless integration and interoperability in network video systems.
Remote Control App
Control up to 4 CamerasThe camera control app is tailored for the Datavideo PTZ camera series. It can monitor the live streaming video from PTC-140, PTC-145, PTC-280, PTC-285, PTC-300 and PTC-305 series. The app can control up to 4 cameras simultaneously via DVIP, you can intuitively set up and recall the presets, and adjust white balance, focus and IRIS.
The app is able to decode the live streaming via RTSP and SRT. Easily monitor the live streaming video and set up the parameters promptly in one application. Datavideo provides iOS and Android versions, which you can download on Google Play and App Store for free!
SRT Ready
Build a Reliable SRT Live Streaming Workflow with All Datavideo ProductsDatavideo's wide range of encoders, cameras, and hand-carry switchers are fully supported by SRT and dvCloud. Datavideo encoders and dvCloud provide reliable streams over unreliable networks.
By using a Datavideo encoder and dvCloud together, you can utilize SRT (instead of RTMP) on the initial problematic connection or "First Mile." After your video stream reaches dvCloud, you can depend on dvCloud's reliable, high-bandwidth network to deliver the stream to your favorite destinations, like Facebook and YouTube.
IP Remote Control dvCloud
Remote Control from Anywhere in the WorldControl the PTZ camera at the venue from anywhere in the world using the BB-1 KIT and dvCloud streaming service.
HDBaseT Compatibility
HDBaseT Compatibility ListThe chart above shows the product’s direct compatibility with other HDBaseT products.
