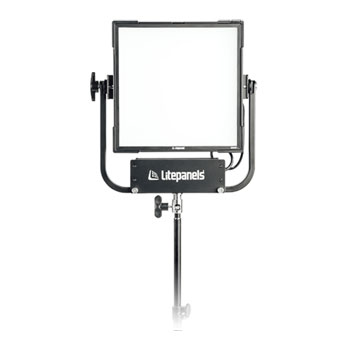

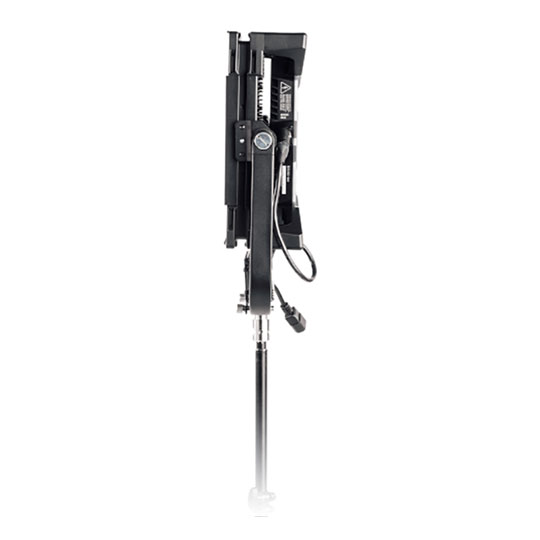

Litepanels - 'Gemini 1x1 Soft RGBWW LED Panel'
(Standard Yoke, UK Power Cable)
Creative, compact & powerful cinematic lightingUnleash your creative vision and bring high-quality cinematic lighting to your set with the compact and lightweight Gemini 1x1 Soft. Delivering the most lighting options ever seen in a 1x1 fixture, control light precisely from a beautiful soft white light to full saturated RGBWW control in an instant; Gemini delivers the ultimate flexibility you need for endless creative lighting options all in one unique fixture. Whether in the studio or out on location, the user-friendly quick-to-rig Gemini 1x1 could be the only panel you’ll ever need.
Key Features
• Front area dimension: 12.6”x12.6”
• 95º Beam angle, 157º Field angle
• Lux at 10ft/3m: 614 (Daylight), 557 (Tungsten)
• Colour temperature range 2,700-10,000K
• Outstanding colour accuracy, CRI: 97, TLCI: 94
• Full RGBWW colour gamut mixing
• Hue, Saturation and intensity control
• Full plus/minus green colour correction
• 0.1 – 100% automatic flicker-free dimming at any frame rate or shutter angle
• Wired or wireless DMX & Bluetooth remote control options
• Multi-voltage 100-240VAC; DC Input 13-28VDC
• Optional mobile battery power with 100% intensity output
• Weight: 12lbs (5.5kg)
600Lux of Soft Light
Brighter soft light for flexible creativityCreate and modify light with more flexibility than ever before, the Gemini 1x1 Soft produces over 600 lux of beautifully soft light at 10ft/3m, allowing you to meet your vision without compromise. Gemini’s output means you can use higher framerates to capture incredible slow-motion scenes or choose from an extensive range of light modifiers and accessories to show your talent in their best light.
True to Life Colour Reproduction
Cine quality, accurate white light
for life in true colourTrue to life colour reproduction comes naturally with Gemini. Consistently accurate and dependable white light with no colour shift at any intensity from 100-0.1% means everything on set appears true to life and the skin tones of your on-screen talent are rendered perfectly.
16.7 Million Colour RGB
Full RGB control for endless creativityOne light, infinite creativity. With precision control over 16.7 million colours and a wide range of gels and fully customizable cinematic effects, Gemini is the only fixture you will need on set. From simulating fire or a television, washing a green screen or matching a colour palette, Gemini’s beautifully rich colour output with outstanding depth, vibrancy and intensity means that whatever the situation the light you need is already on set and just the touch of a button away.
Flicker Free LED Lighting
Flicker free output at any levelFixing flicker in post is a thing of the past with Gemini. With advanced LED control to create exceptionally stable and flicker free light at any shutter angle, frame rate or at any intensity level from 100 – 0.1% you can spend more time shooting and less time in the edit suite.
Compact & Lightweight Design
Lightweight and agile for rapid riggingReady to work right out of the box with no assembly required, Gemini is ready to start work immediately. Weighing in at just 5.3kg Gemini is easy to transport and quick to rig or move around your set, use lightweight lighting supports or even hand hold for ultimate lighting versatility. The adjustable onboard power supply mount means that Gemini can be perfectly balanced and positioned quickly to be ready for action.
Intuitive Controls Built-In
Simple to useWith an intuitive UI for fast menu selection and customizable pre-set buttons for quick recall of your favorite scenes and settings, Gemini makes professional results available at the touch of a button, helping you operate with efficiency and save time on set.
Multiple Control Options
Take ControlTake creative control of Gemini in the studio or on location with the intuitive on-board control panel. For remote control choose from wired RJ45 and XLR5 DMX options or go wireless with WiFi and Bluetooth options as well as Litepanels smart iOS apps for a galaxy of light, effects and color at your fingertips.
Optional Battery Plates
Battery power for cine lighting anywhereFor maximum flexibility to take cine quality lighting anywhere, Gemini can be powered at full intensity for over two hours with batteries such as the Anton/Bauer DIONIC 26V. Quickly mount 13-28V DC batteries with optional V-Mount or Gold-Mount battery plates to place your lighting anywhere your creativity takes you.
Gemini 1x1 Soft Spec
| Features | Specification | Beam Angle | 95 |
|---|---|
| Weight | 5.31 kg |
| Colour Temperature | RGWW |
| Field Angle | 157 |
| CRI Daylight | 97 |
| CRI Tungsten | 94 |
| Max Power Draw | 200W |
| IP Rating | IP20 |
| Remote control | Built-in Wired DMX (RJ-45 and XLR5) / Wireless DMX (LumenRadio) Module / Bluetooth Module |
| Dimensions | 320 x 320 x 119 mm |
| Comparative output | 614 lux Daylight at 10ft/3m, 557 Tungsten at 10ft/3m |
| Gel Filter | Optional Daylight or Tungsten source |
| Optics | Medium Diffusion Panel |
